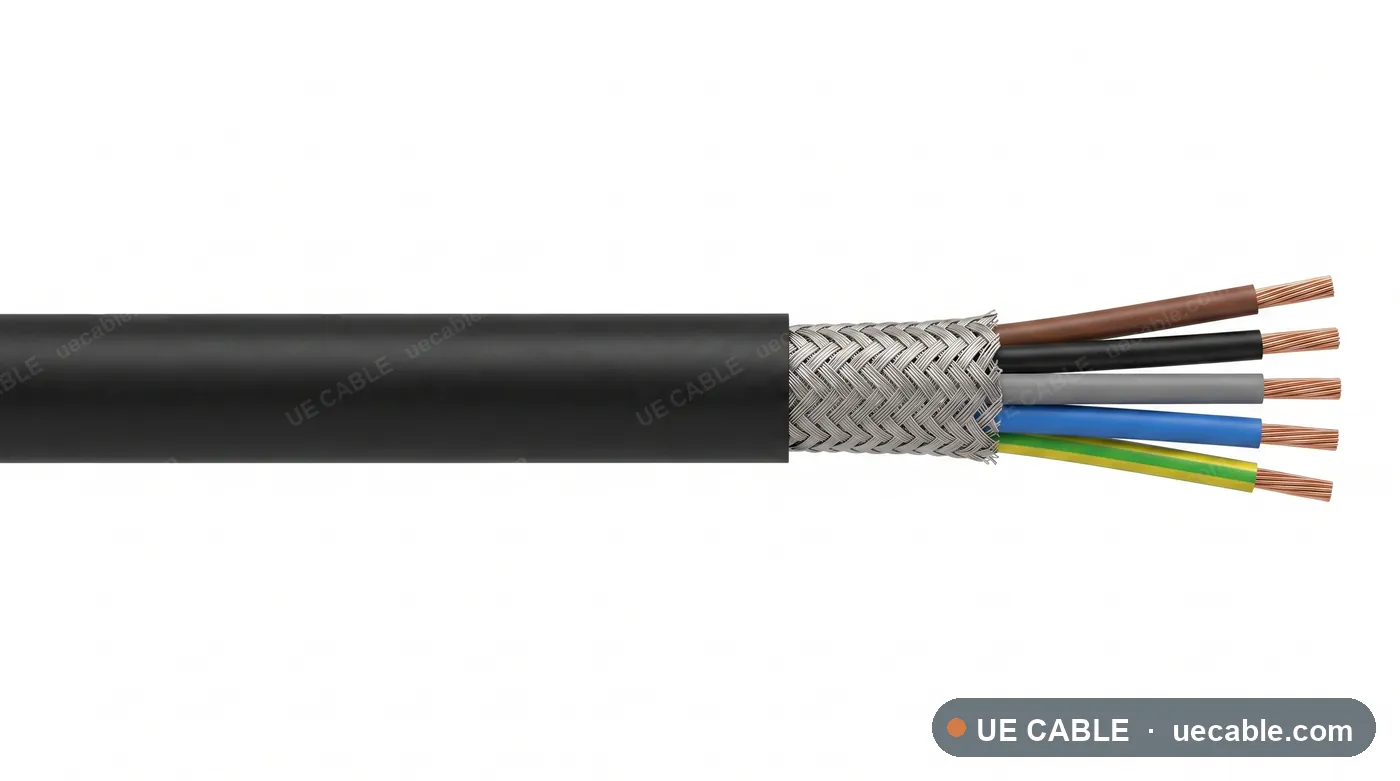

Silicone Rubber Fire Resistant Control Cable cable construction reference

Flexible fire resistant control cable

Silicone Rubber Fire Resistant Control Cable

Silicone Rubber Fire Resistant Control Cable is a fire resistant cable construction for fire safety controls, high temperature equipment, emergency control panels applications, using copper conductor, silicone rubber fire resistant insulation, silicone rubber insulation, optional braid screen and silicone or lszh sheath.

Standard
IEC 60331
Voltage class
300/500 V
Conductor
Copper conductor
Insulation / jacket
Silicone or LSZH sheath
Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

Silicone Rubber Fire Resistant Control Cable is a fire resistant cable construction for fire safety controls, high temperature equipment, emergency control panels applications, using copper conductor, silicone rubber fire resistant insulation, silicone rubber insulation, optional braid screen and silicone or lszh sheath.

  • Fire safety controls
  • High temperature equipment
  • Emergency control panels
  • Flexible safety circuits

Cable Construction

  • Copper conductor
  • Silicone rubber fire resistant insulation
  • Silicone rubber insulation
  • Optional braid screen
  • Silicone or LSZH sheath

Specifications

Select a cable size.

Each row below is a complete specification sheet — 25 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

Fire resistant specification references

Each row is an exact cable specification sheet. Technical sheets can be prepared after the page content is reviewed.

  • Voltage class300/500 V
  • Fire performanceIEC 60331 fire resistant control circuit
  • Protection / screenOptional braid screen
Cable referenceCore layoutConductor sizeOD guide
Silicone Rubber Fire Resistant Control 300/500 V 2 core 0.75 mm²2 core0.75 mm²14 mm
Silicone Rubber Fire Resistant Control 300/500 V 2 core 1.0 mm²2 core1.0 mm²14 mm
Silicone Rubber Fire Resistant Control 300/500 V 2 core 1.5 mm²2 core1.5 mm²15 mm
Silicone Rubber Fire Resistant Control 300/500 V 2 core 2.5 mm²2 core2.5 mm²15 mm
Silicone Rubber Fire Resistant Control 300/500 V 2 core 4 mm²2 core4 mm²16 mm
Silicone Rubber Fire Resistant Control 300/500 V 3 core 0.75 mm²3 core0.75 mm²15 mm
Silicone Rubber Fire Resistant Control 300/500 V 3 core 1.0 mm²3 core1.0 mm²16 mm
Silicone Rubber Fire Resistant Control 300/500 V 3 core 1.5 mm²3 core1.5 mm²16 mm
Silicone Rubber Fire Resistant Control 300/500 V 3 core 2.5 mm²3 core2.5 mm²17 mm
Silicone Rubber Fire Resistant Control 300/500 V 3 core 4 mm²3 core4 mm²18 mm
Silicone Rubber Fire Resistant Control 300/500 V 4 core 0.75 mm²4 core0.75 mm²17 mm
Silicone Rubber Fire Resistant Control 300/500 V 4 core 1.0 mm²4 core1.0 mm²18 mm
Silicone Rubber Fire Resistant Control 300/500 V 4 core 1.5 mm²4 core1.5 mm²18 mm
Silicone Rubber Fire Resistant Control 300/500 V 4 core 2.5 mm²4 core2.5 mm²19 mm
Silicone Rubber Fire Resistant Control 300/500 V 4 core 4 mm²4 core4 mm²20 mm
Silicone Rubber Fire Resistant Control 300/500 V 7 core 0.75 mm²7 core0.75 mm²23 mm
Silicone Rubber Fire Resistant Control 300/500 V 7 core 1.0 mm²7 core1.0 mm²23 mm
Silicone Rubber Fire Resistant Control 300/500 V 7 core 1.5 mm²7 core1.5 mm²24 mm
Silicone Rubber Fire Resistant Control 300/500 V 7 core 2.5 mm²7 core2.5 mm²24 mm
Silicone Rubber Fire Resistant Control 300/500 V 7 core 4 mm²7 core4 mm²25 mm
Silicone Rubber Fire Resistant Control 300/500 V 12 core 0.75 mm²12 core0.75 mm²32 mm
Silicone Rubber Fire Resistant Control 300/500 V 12 core 1.0 mm²12 core1.0 mm²32 mm
Silicone Rubber Fire Resistant Control 300/500 V 12 core 1.5 mm²12 core1.5 mm²33 mm
Silicone Rubber Fire Resistant Control 300/500 V 12 core 2.5 mm²12 core2.5 mm²33 mm
Silicone Rubber Fire Resistant Control 300/500 V 12 core 4 mm²12 core4 mm²34 mm
Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.

Request Quote →
