PH120 emergency circuit cable

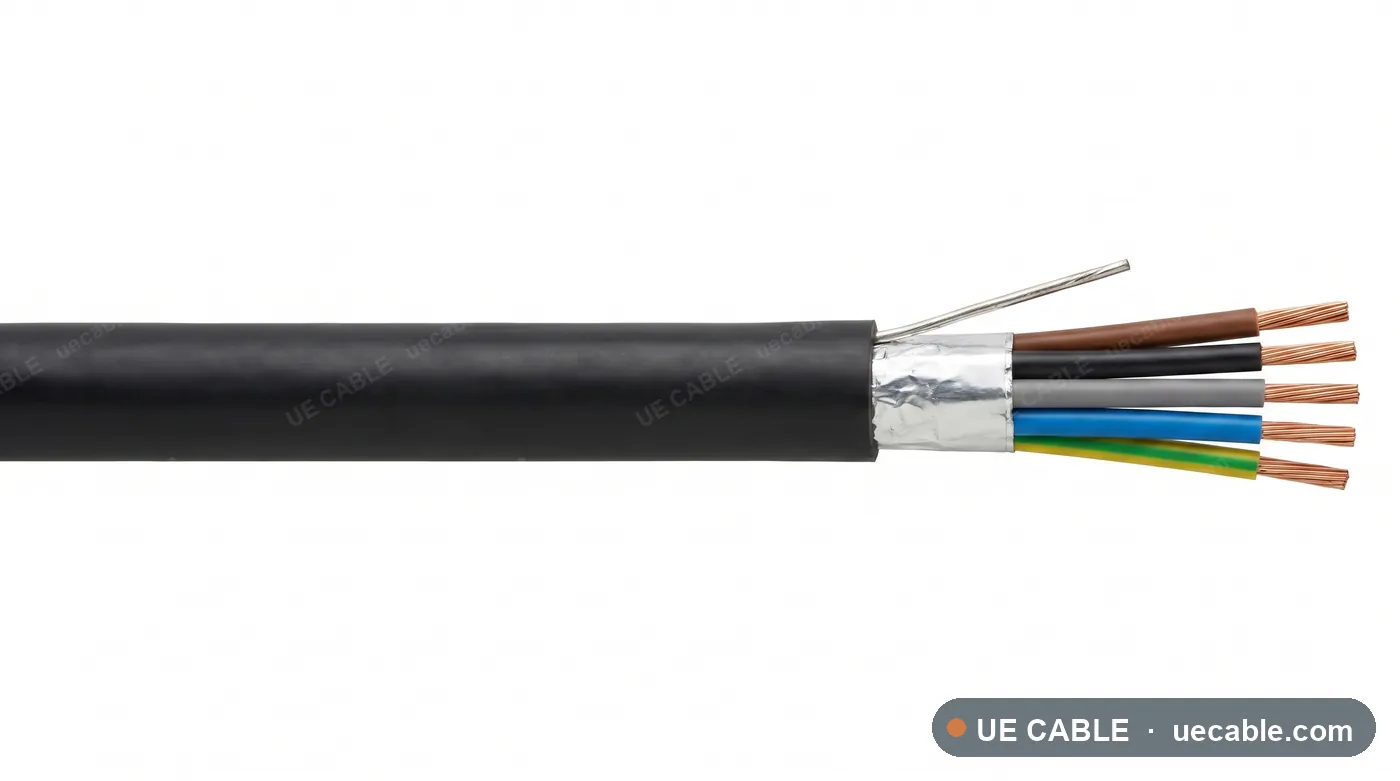

EN 50200 PH120 Fire Alarm Cable is a fire resistant cable construction for emergency circuits, fire alarm loops, public buildings applications, using copper conductor, mica fire barrier, lszh fire resistant insulation, optional foil screen and lszh outer sheath.
Cable Type Data
EN 50200 PH120 Fire Alarm Cable is a fire resistant cable construction for emergency circuits, fire alarm loops, public buildings applications, using copper conductor, mica fire barrier, lszh fire resistant insulation, optional foil screen and lszh outer sheath.
Specifications
Each row below is a complete specification sheet — 9 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.
Each row is an exact cable specification sheet. Technical sheets can be prepared after the page content is reviewed.
| Cable reference | Core layout | Conductor size | OD guide |
|---|---|---|---|
| EN 50200 PH120 Fire Alarm 300/500 V 2 core 1.0 mm² | 2 core | 1.0 mm² | 14 mm |
| EN 50200 PH120 Fire Alarm 300/500 V 2 core 1.5 mm² | 2 core | 1.5 mm² | 15 mm |
| EN 50200 PH120 Fire Alarm 300/500 V 2 core 2.5 mm² | 2 core | 2.5 mm² | 15 mm |
| EN 50200 PH120 Fire Alarm 300/500 V 3 core 1.0 mm² | 3 core | 1.0 mm² | 16 mm |
| EN 50200 PH120 Fire Alarm 300/500 V 3 core 1.5 mm² | 3 core | 1.5 mm² | 16 mm |
| EN 50200 PH120 Fire Alarm 300/500 V 3 core 2.5 mm² | 3 core | 2.5 mm² | 17 mm |
| EN 50200 PH120 Fire Alarm 300/500 V 4 core 1.0 mm² | 4 core | 1.0 mm² | 18 mm |
| EN 50200 PH120 Fire Alarm 300/500 V 4 core 1.5 mm² | 4 core | 1.5 mm² | 18 mm |
| EN 50200 PH120 Fire Alarm 300/500 V 4 core 2.5 mm² | 4 core | 2.5 mm² | 19 mm |
Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
