IEC fire resistant power cable

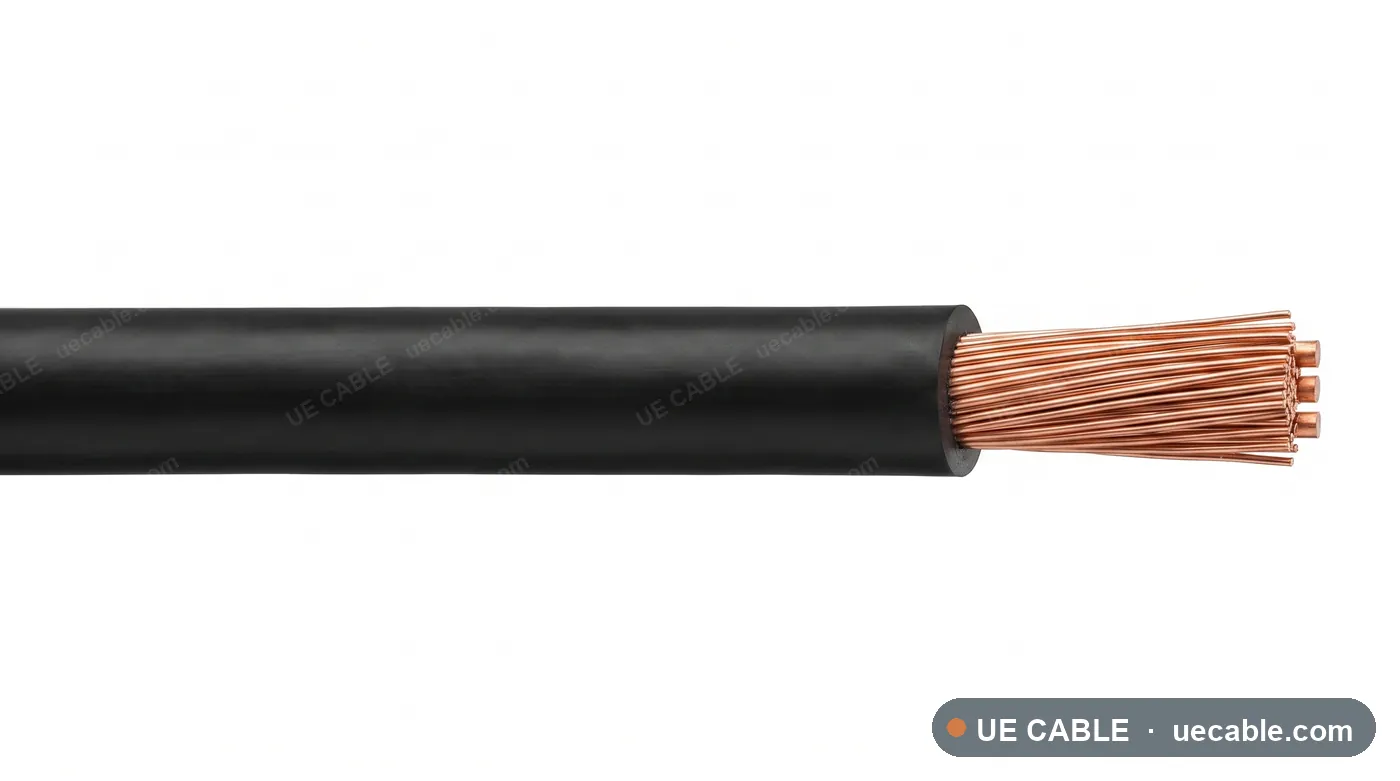

IEC 60331 Mica XLPE LSZH Fire Resistant Power Cable

IEC 60331 Mica XLPE LSZH Fire Resistant Power Cable is a fire resistant cable construction for critical feeders, emergency power, industrial safety circuits applications, using copper conductor, mica glass tape fire barrier, xlpe insulation, lszh sheath and lszh outer sheath.

Standard: IEC 60331
Voltage class: 0.6/1 kV
Conductor: Copper conductor
Insulation / jacket: LSZH

Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

Critical feeders
Emergency power
Industrial safety circuits
Infrastructure

Cable Construction

Copper conductor
Mica glass tape fire barrier
XLPE insulation
LSZH sheath
LSZH outer sheath

Specifications

Select a cable size.

Each row below is a complete specification sheet — 75 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

Fire resistant specification references

Each row is an exact cable specification sheet. Technical sheets can be prepared after the page content is reviewed.

Voltage class0.6/1 kV
Fire performanceIEC 60331 circuit integrity
Protection / screenLSZH sheath

Cable reference	Core layout	Conductor size	OD guide
IEC 60331 Mica XLPE LSZH 0.6/1 kV 1 core 1.5 mm²	1 core	1.5 mm²	10 mm
IEC 60331 Mica XLPE LSZH 0.6/1 kV 1 core 2.5 mm²	1 core	2.5 mm²	11 mm
IEC 60331 Mica XLPE LSZH 0.6/1 kV 1 core 4 mm²	1 core	4 mm²	12 mm
IEC 60331 Mica XLPE LSZH 0.6/1 kV 1 core 6 mm²	1 core	6 mm²	13 mm
IEC 60331 Mica XLPE LSZH 0.6/1 kV 1 core 10 mm²	1 core	10 mm²	14 mm
IEC 60331 Mica XLPE LSZH 0.6/1 kV 1 core 16 mm²	1 core	16 mm²	16 mm
IEC 60331 Mica XLPE LSZH 0.6/1 kV 1 core 25 mm²	1 core	25 mm²	19 mm
IEC 60331 Mica XLPE LSZH 0.6/1 kV 1 core 35 mm²	1 core	35 mm²	21 mm
IEC 60331 Mica XLPE LSZH 0.6/1 kV 1 core 50 mm²	1 core	50 mm²	24 mm
IEC 60331 Mica XLPE LSZH 0.6/1 kV 1 core 70 mm²	1 core	70 mm²	27 mm
IEC 60331 Mica XLPE LSZH 0.6/1 kV 1 core 95 mm²	1 core	95 mm²	30 mm
IEC 60331 Mica XLPE LSZH 0.6/1 kV 1 core 120 mm²	1 core	120 mm²	33 mm
IEC 60331 Mica XLPE LSZH 0.6/1 kV 1 core 150 mm²	1 core	150 mm²	36 mm
IEC 60331 Mica XLPE LSZH 0.6/1 kV 1 core 185 mm²	1 core	185 mm²	39 mm
IEC 60331 Mica XLPE LSZH 0.6/1 kV 1 core 240 mm²	1 core	240 mm²	44 mm
IEC 60331 Mica XLPE LSZH 0.6/1 kV 2 core 1.5 mm²	2 core	1.5 mm²	12 mm
IEC 60331 Mica XLPE LSZH 0.6/1 kV 2 core 2.5 mm²	2 core	2.5 mm²	12 mm
IEC 60331 Mica XLPE LSZH 0.6/1 kV 2 core 4 mm²	2 core	4 mm²	13 mm
IEC 60331 Mica XLPE LSZH 0.6/1 kV 2 core 6 mm²	2 core	6 mm²	14 mm
IEC 60331 Mica XLPE LSZH 0.6/1 kV 2 core 10 mm²	2 core	10 mm²	16 mm
IEC 60331 Mica XLPE LSZH 0.6/1 kV 2 core 16 mm²	2 core	16 mm²	18 mm
IEC 60331 Mica XLPE LSZH 0.6/1 kV 2 core 25 mm²	2 core	25 mm²	21 mm
IEC 60331 Mica XLPE LSZH 0.6/1 kV 2 core 35 mm²	2 core	35 mm²	23 mm
IEC 60331 Mica XLPE LSZH 0.6/1 kV 2 core 50 mm²	2 core	50 mm²	26 mm
IEC 60331 Mica XLPE LSZH 0.6/1 kV 2 core 70 mm²	2 core	70 mm²	29 mm
IEC 60331 Mica XLPE LSZH 0.6/1 kV 2 core 95 mm²	2 core	95 mm²	32 mm
IEC 60331 Mica XLPE LSZH 0.6/1 kV 2 core 120 mm²	2 core	120 mm²	35 mm
IEC 60331 Mica XLPE LSZH 0.6/1 kV 2 core 150 mm²	2 core	150 mm²	38 mm
IEC 60331 Mica XLPE LSZH 0.6/1 kV 2 core 185 mm²	2 core	185 mm²	41 mm
IEC 60331 Mica XLPE LSZH 0.6/1 kV 2 core 240 mm²	2 core	240 mm²	46 mm
IEC 60331 Mica XLPE LSZH 0.6/1 kV 3 core 1.5 mm²	3 core	1.5 mm²	13 mm
IEC 60331 Mica XLPE LSZH 0.6/1 kV 3 core 2.5 mm²	3 core	2.5 mm²	14 mm
IEC 60331 Mica XLPE LSZH 0.6/1 kV 3 core 4 mm²	3 core	4 mm²	15 mm
IEC 60331 Mica XLPE LSZH 0.6/1 kV 3 core 6 mm²	3 core	6 mm²	16 mm
IEC 60331 Mica XLPE LSZH 0.6/1 kV 3 core 10 mm²	3 core	10 mm²	18 mm
IEC 60331 Mica XLPE LSZH 0.6/1 kV 3 core 16 mm²	3 core	16 mm²	20 mm
IEC 60331 Mica XLPE LSZH 0.6/1 kV 3 core 25 mm²	3 core	25 mm²	22 mm
IEC 60331 Mica XLPE LSZH 0.6/1 kV 3 core 35 mm²	3 core	35 mm²	25 mm
IEC 60331 Mica XLPE LSZH 0.6/1 kV 3 core 50 mm²	3 core	50 mm²	27 mm
IEC 60331 Mica XLPE LSZH 0.6/1 kV 3 core 70 mm²	3 core	70 mm²	30 mm
IEC 60331 Mica XLPE LSZH 0.6/1 kV 3 core 95 mm²	3 core	95 mm²	34 mm
IEC 60331 Mica XLPE LSZH 0.6/1 kV 3 core 120 mm²	3 core	120 mm²	37 mm
IEC 60331 Mica XLPE LSZH 0.6/1 kV 3 core 150 mm²	3 core	150 mm²	40 mm
IEC 60331 Mica XLPE LSZH 0.6/1 kV 3 core 185 mm²	3 core	185 mm²	43 mm
IEC 60331 Mica XLPE LSZH 0.6/1 kV 3 core 240 mm²	3 core	240 mm²	48 mm
IEC 60331 Mica XLPE LSZH 0.6/1 kV 4 core 1.5 mm²	4 core	1.5 mm²	15 mm
IEC 60331 Mica XLPE LSZH 0.6/1 kV 4 core 2.5 mm²	4 core	2.5 mm²	16 mm
IEC 60331 Mica XLPE LSZH 0.6/1 kV 4 core 4 mm²	4 core	4 mm²	17 mm
IEC 60331 Mica XLPE LSZH 0.6/1 kV 4 core 6 mm²	4 core	6 mm²	18 mm
IEC 60331 Mica XLPE LSZH 0.6/1 kV 4 core 10 mm²	4 core	10 mm²	20 mm
IEC 60331 Mica XLPE LSZH 0.6/1 kV 4 core 16 mm²	4 core	16 mm²	22 mm
IEC 60331 Mica XLPE LSZH 0.6/1 kV 4 core 25 mm²	4 core	25 mm²	24 mm
IEC 60331 Mica XLPE LSZH 0.6/1 kV 4 core 35 mm²	4 core	35 mm²	26 mm
IEC 60331 Mica XLPE LSZH 0.6/1 kV 4 core 50 mm²	4 core	50 mm²	29 mm
IEC 60331 Mica XLPE LSZH 0.6/1 kV 4 core 70 mm²	4 core	70 mm²	32 mm
IEC 60331 Mica XLPE LSZH 0.6/1 kV 4 core 95 mm²	4 core	95 mm²	36 mm
IEC 60331 Mica XLPE LSZH 0.6/1 kV 4 core 120 mm²	4 core	120 mm²	38 mm
IEC 60331 Mica XLPE LSZH 0.6/1 kV 4 core 150 mm²	4 core	150 mm²	42 mm
IEC 60331 Mica XLPE LSZH 0.6/1 kV 4 core 185 mm²	4 core	185 mm²	45 mm
IEC 60331 Mica XLPE LSZH 0.6/1 kV 4 core 240 mm²	4 core	240 mm²	49 mm
IEC 60331 Mica XLPE LSZH 0.6/1 kV 5 core 1.5 mm²	5 core	1.5 mm²	17 mm
IEC 60331 Mica XLPE LSZH 0.6/1 kV 5 core 2.5 mm²	5 core	2.5 mm²	18 mm
IEC 60331 Mica XLPE LSZH 0.6/1 kV 5 core 4 mm²	5 core	4 mm²	19 mm
IEC 60331 Mica XLPE LSZH 0.6/1 kV 5 core 6 mm²	5 core	6 mm²	20 mm
IEC 60331 Mica XLPE LSZH 0.6/1 kV 5 core 10 mm²	5 core	10 mm²	22 mm
IEC 60331 Mica XLPE LSZH 0.6/1 kV 5 core 16 mm²	5 core	16 mm²	24 mm
IEC 60331 Mica XLPE LSZH 0.6/1 kV 5 core 25 mm²	5 core	25 mm²	26 mm
IEC 60331 Mica XLPE LSZH 0.6/1 kV 5 core 35 mm²	5 core	35 mm²	28 mm
IEC 60331 Mica XLPE LSZH 0.6/1 kV 5 core 50 mm²	5 core	50 mm²	31 mm
IEC 60331 Mica XLPE LSZH 0.6/1 kV 5 core 70 mm²	5 core	70 mm²	34 mm
IEC 60331 Mica XLPE LSZH 0.6/1 kV 5 core 95 mm²	5 core	95 mm²	37 mm
IEC 60331 Mica XLPE LSZH 0.6/1 kV 5 core 120 mm²	5 core	120 mm²	40 mm
IEC 60331 Mica XLPE LSZH 0.6/1 kV 5 core 150 mm²	5 core	150 mm²	43 mm
IEC 60331 Mica XLPE LSZH 0.6/1 kV 5 core 185 mm²	5 core	185 mm²	47 mm
IEC 60331 Mica XLPE LSZH 0.6/1 kV 5 core 240 mm²	5 core	240 mm²	51 mm

Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
