Flexible EV charging cable

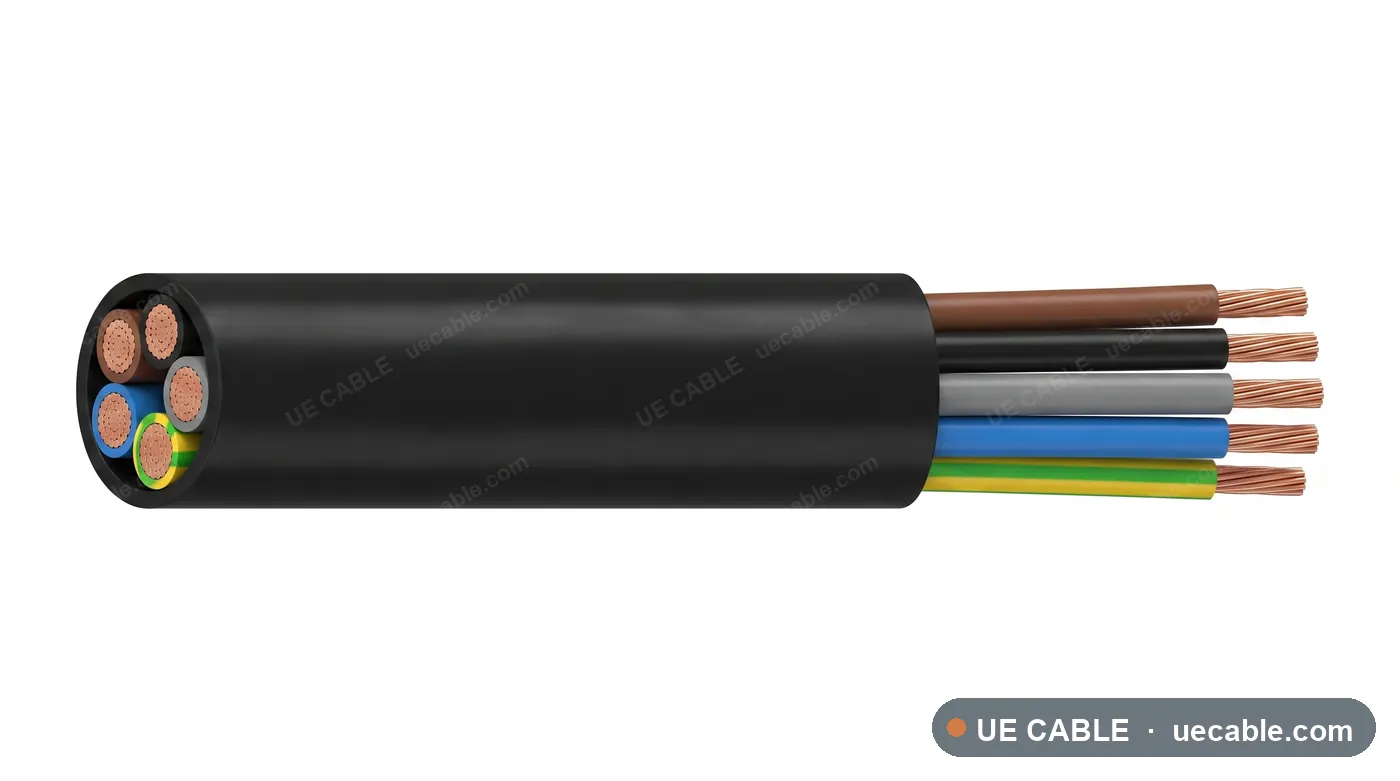

IEC 62893 Flexible EV Charging Cable is an electric vehicle charging cable construction for portable charging, charging station cable sets, commercial charging points applications, using flexible copper conductors, cross-linked elastomeric charging cable insulation, flexible tpu sheath and repeated handling, abrasion, water and weather resistance.
Cable Type Data
IEC 62893 Flexible EV Charging Cable is an electric vehicle charging cable construction for portable charging, charging station cable sets, commercial charging points applications, using flexible copper conductors, cross-linked elastomeric charging cable insulation, flexible tpu sheath and repeated handling, abrasion, water and weather resistance.
Specifications
Each row below is a complete specification sheet — 6 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.
Each row is an exact cable specification sheet. Confirm connector type, cable length and operating current before quotation.
| Cable reference | Current guide | Core / signal layout | Power conductor | OD guide |
|---|---|---|---|---|
| IEC 62893 Flexible EV Charging Flexible EV charging cable 16 A 3G + 1 x 0.5 mm² control 2.5 mm² | 16 A | 3G + 1 x 0.5 mm² control | 2.5 mm² | 18 mm |
| IEC 62893 Flexible EV Charging Flexible EV charging cable 32 A 3G + 1 x 0.5 mm² control 6 mm² | 32 A | 3G + 1 x 0.5 mm² control | 6 mm² | 20 mm |
| IEC 62893 Flexible EV Charging Flexible EV charging cable 63 A 3G + 1 x 0.5 mm² control 16 mm² | 63 A | 3G + 1 x 0.5 mm² control | 16 mm² | 24 mm |
| IEC 62893 Flexible EV Charging Flexible EV charging cable 16 A 5G + 2 x 0.5 mm² control 2.5 mm² | 16 A | 5G + 2 x 0.5 mm² control | 2.5 mm² | 21 mm |
| IEC 62893 Flexible EV Charging Flexible EV charging cable 32 A 5G + 2 x 0.5 mm² control 6 mm² | 32 A | 5G + 2 x 0.5 mm² control | 6 mm² | 23 mm |
| IEC 62893 Flexible EV Charging Flexible EV charging cable 63 A 5G + 2 x 0.5 mm² control 16 mm² | 63 A | 5G + 2 x 0.5 mm² control | 16 mm² | 27 mm |
Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
