Application And Vehicle Use
EV charging cables for AC and DC charging systems, charge points, power cores, signal cores and data-integrated constructions.
- EV charging stations
- AC charging
- DC fast charging
- E-mobility infrastructure
E-mobility cable
EV Charging Cables
EV charging cables for AC and DC charging systems, charge points, power cores, signal cores and data-integrated constructions.
Cable construction
EV Charging Cables
Technical reference for cable construction, sheath finish, screening and cross-section review.
Cable Construction
- Fine stranded copper conductor
- Power and signal cores
- Optional data pair
- TPU, rubber or LSZH sheath
Standards And OEM References
- IEC 62893
- EN 50620
- GB/T 33594
- UL 62
Product Selection Data
| Charging type | AC charging, DC fast charging and charging station cable |
|---|---|
| Voltage rating | 300/500 V, 450/750 V, 1 kV or charging-system specific |
| Conductor | Fine stranded copper for repeated handling |
| Core design | Power cores, protective earth, signal cores and optional data pair |
| Sheath | TPU, TPE, rubber, LSZH or oil-resistant compound |
| Flexibility | High-flex handling and charging cable use |
| Environmental resistance | Abrasion, oil, UV, cold bend and weather resistance |
| Standards | IEC 62893, EN 50620, UL 62 and customer-specified references |
Find The Exact Cable Size
Open a cable construction page, then select the voltage, conductor material, core layout and cross-section row that matches your enquiry. Each row opens a cable specification sheet for quote preparation.
Automotive Wire And Cable Types
Automotive wire pages are organised by designation, insulation system, voltage class and harness use. Open a type page for dimensions, conductor construction, resistance and weight tables.
H07BZ5-F EN 50620 AC EV Charging Cable
H07BZ5-F EN 50620 AC EV Charging Cable is an electric vehicle charging cable construction for ac charging stations, mode 3 charging, residential wallboxes applications, using flexible copper conductors, cross-linked halogen-free evi-2 insulation, tpu or halogen-free elastomer sheath and oil, water, abrasion, weather and cold resistance.
View technical data →IEC 62893 Flexible EV Charging Cable
IEC 62893 Flexible EV Charging Cable is an electric vehicle charging cable construction for portable charging, charging station cable sets, commercial charging points applications, using flexible copper conductors, cross-linked elastomeric charging cable insulation, flexible tpu sheath and repeated handling, abrasion, water and weather resistance.
View technical data →DC Fast Charging Liquid Cooled Cable
DC Fast Charging Liquid Cooled Cable is an electric vehicle charging cable construction for dc fast charging, high-power charging, commercial charging hubs applications, using flexible copper conductors, heat-resistant elastomeric insulation, high-flex tpu sheath and high current, heat, flex, abrasion and outdoor resistance.
View technical data →
DC chargepoint connection cable

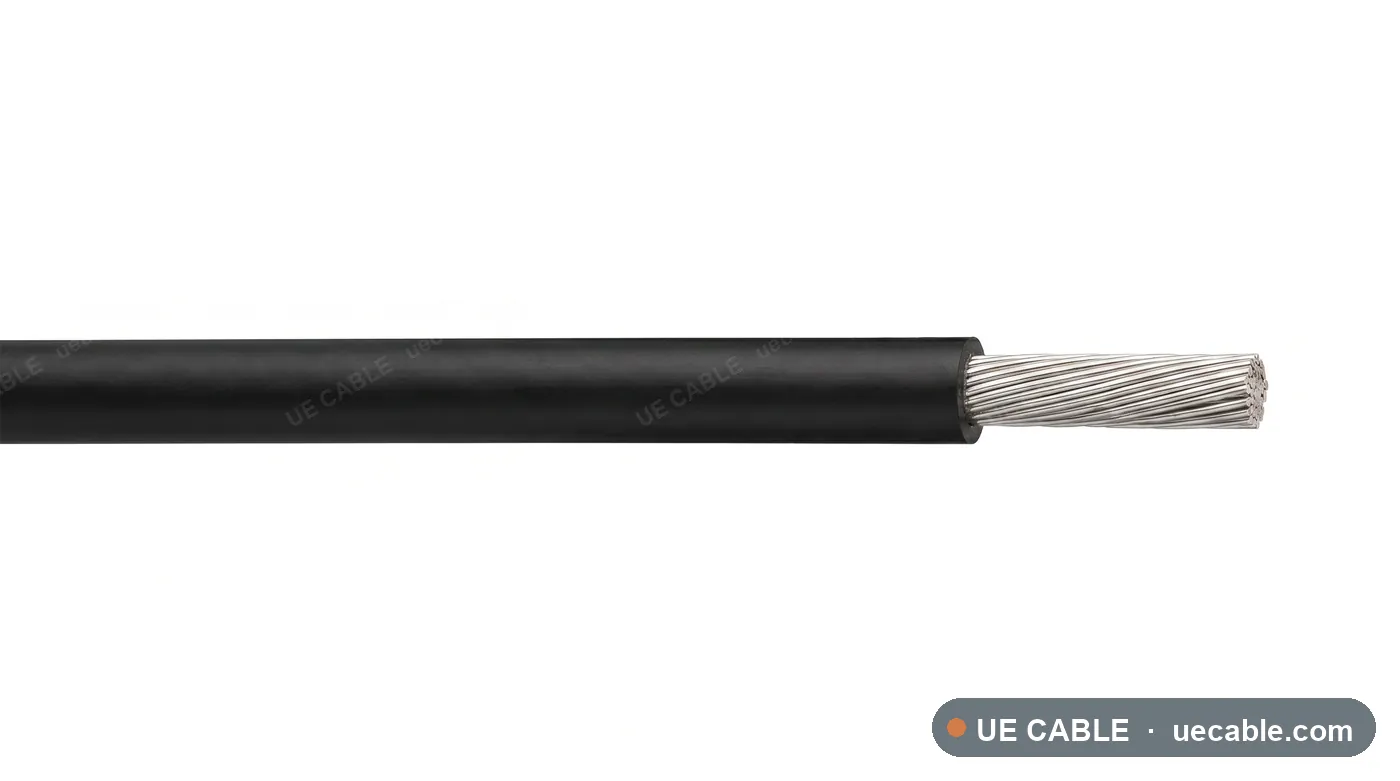

DC EV Chargepoint Connection Cable
DC EV Chargepoint Connection Cable is an electric vehicle charging cable construction for rapid chargepoint internal power, dc charger output, charging station equipment applications, using flexible copper conductors, elastomeric g16 type insulation, pvc or elastomeric sheath and ad7 water immersion and outdoor chargepoint duty.
View technical data →EVC Flat Power Bus LSZH Cable
EVC Flat Power Bus LSZH Cable is an electric vehicle charging cable construction for parking garage charging infrastructure, multi-bay ev charging, commercial buildings applications, using flexible copper conductors, xlpe insulation, lszh polyolefin sheath and indoor parking, low smoke and expandable charging infrastructure duty.
View technical data →EV Charging Station Supply Cable
EV Charging Station Supply Cable is an electric vehicle charging cable construction for charging station feeder, transformer to charger runs, commercial ev parking applications, using flexible copper conductors, xlpe insulation, uv resistant pvc or lszh sheath and outdoor feeder, uv and installation route duty.
View technical data →Designations And Size References
Available Options
- AC EV charging cable
- DC fast charging cable
- Mode 2 cable
- Mode 3 cable
- TPU EV cable
- Liquid-cooled charging cable reference
FAQ
EV Charging Cables — common questions
What are ev charging cables?
EV charging cables for AC and DC charging systems, charge points, power cores, signal cores and data-integrated constructions. They are built to IEC 62893, EN 50620, GB/T 33594, UL 62.
Which standards do ev charging cables comply with?
UE Cable ev charging cables are manufactured and tested to IEC 62893, EN 50620, GB/T 33594, UL 62. The exact standard for each construction is stated on its specification sheet.
What sizes and configurations are available?
6 construction families are catalogued under ev charging cables, each offered across a range of conductor sizes and core or pair counts. Open any specification sheet for the exact conductor size, voltage, operating temperature, current rating, overall diameter and weight.
Can ev charging cables be custom-made, and how fast is a quote?
Yes. UE Cable manufactures to customer specification — conductor, insulation, screen, armour, sheath, colour, printing and packing. Send your requirement through the inquiry list and we typically reply within 6 hours with price, lead time and test documentation.
