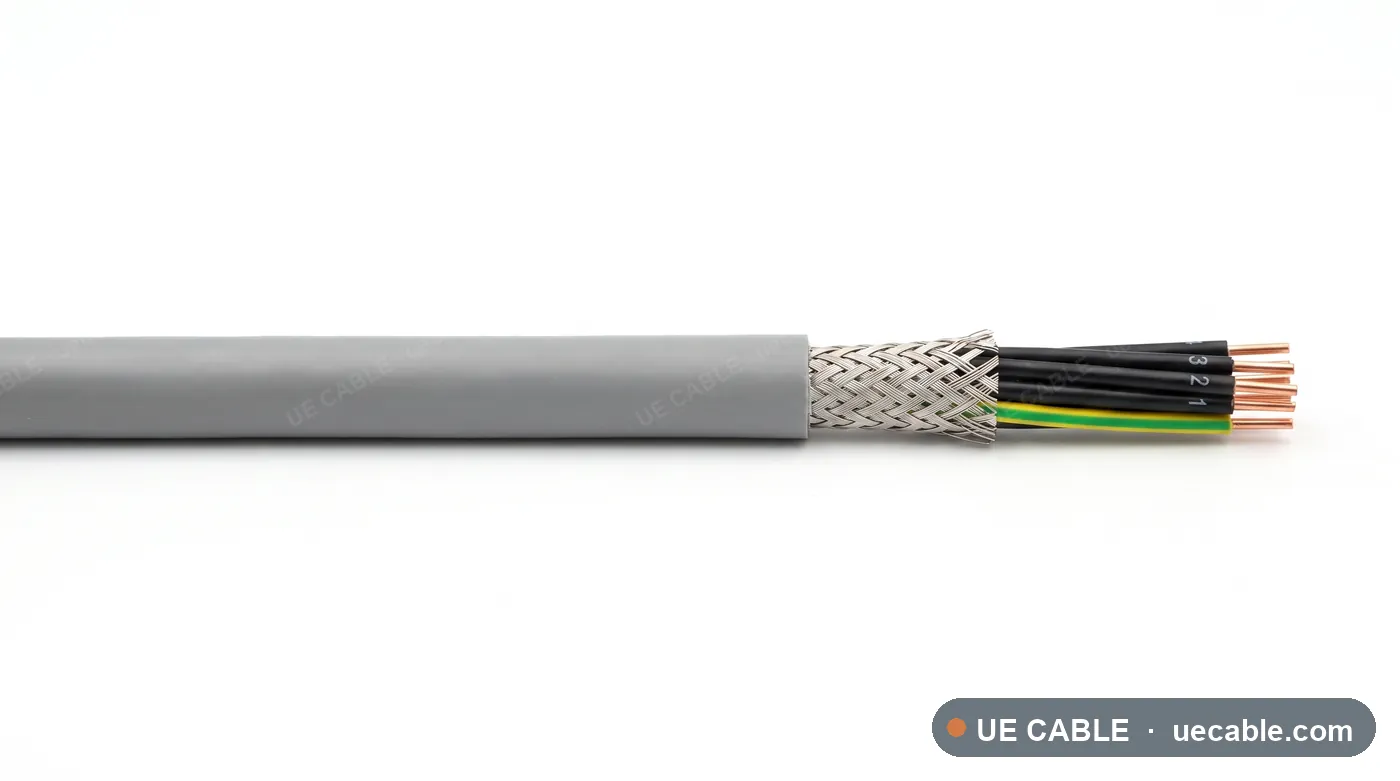

PUR CY Oil Resistant Control Cable cable construction reference

Oil resistant screened control cable

PUR CY Oil Resistant Control Cable

PUR CY Oil Resistant Control Cable is a specific industrial control cable construction for machine tools, industrial automation, oil-exposed routes, using class 5 flexible copper conductor, pvc or special control-core insulation, tinned copper wire braid screen and pur oil and abrasion resistant sheath.

Standard
VDE 0250
Voltage class
300/500 V
Conductor
Class 5 flexible copper conductor
Insulation / jacket
PUR oil and abrasion resistant sheath
Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

PUR CY Oil Resistant Control Cable is a specific industrial control cable construction for machine tools, industrial automation, oil-exposed routes, using class 5 flexible copper conductor, pvc or special control-core insulation, tinned copper wire braid screen and pur oil and abrasion resistant sheath.

  • Machine tools
  • Industrial automation
  • Oil-exposed routes
  • Flexible equipment wiring

Cable Construction

  • Class 5 flexible copper conductor
  • PVC or special control-core insulation
  • Numbered or color-coded core identification
  • Tinned copper wire braid screen
  • PUR oil and abrasion resistant sheath

Specifications

Select a cable size.

Each row below is a complete specification sheet — 36 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

300/500 V control specification references

Each row is an exact control cable cable specification sheet. Shared voltage, insulation, screen and sheath data are listed above.

  • Voltage class300/500 V
  • Screen / protectionTinned copper wire braid screen
Cable referenceCore / pair designConductor sizeMax DC resistance at 20 °COD guide
PUR CY oil resistant control cable 300/500 V 3 core 0.5 mm²3 core0.5 mm²39.0 Ω/km10 mm
PUR CY oil resistant control cable 300/500 V 3 core 0.75 mm²3 core0.75 mm²26.0 Ω/km11 mm
PUR CY oil resistant control cable 300/500 V 3 core 1.0 mm²3 core1.0 mm²19.5 Ω/km11 mm
PUR CY oil resistant control cable 300/500 V 3 core 1.5 mm²3 core1.5 mm²13.3 Ω/km11 mm
PUR CY oil resistant control cable 300/500 V 3 core 2.5 mm²3 core2.5 mm²7.98 Ω/km12 mm
PUR CY oil resistant control cable 300/500 V 3 core 4 mm²3 core4 mm²4.95 Ω/km13 mm
PUR CY oil resistant control cable 300/500 V 4 core 0.5 mm²4 core0.5 mm²39.0 Ω/km11 mm
PUR CY oil resistant control cable 300/500 V 4 core 0.75 mm²4 core0.75 mm²26.0 Ω/km11 mm
PUR CY oil resistant control cable 300/500 V 4 core 1.0 mm²4 core1.0 mm²19.5 Ω/km11 mm
PUR CY oil resistant control cable 300/500 V 4 core 1.5 mm²4 core1.5 mm²13.3 Ω/km12 mm
PUR CY oil resistant control cable 300/500 V 4 core 2.5 mm²4 core2.5 mm²7.98 Ω/km13 mm
PUR CY oil resistant control cable 300/500 V 4 core 4 mm²4 core4 mm²4.95 Ω/km14 mm
PUR CY oil resistant control cable 300/500 V 5 core 0.5 mm²5 core0.5 mm²39.0 Ω/km11 mm
PUR CY oil resistant control cable 300/500 V 5 core 0.75 mm²5 core0.75 mm²26.0 Ω/km12 mm
PUR CY oil resistant control cable 300/500 V 5 core 1.0 mm²5 core1.0 mm²19.5 Ω/km12 mm
PUR CY oil resistant control cable 300/500 V 5 core 1.5 mm²5 core1.5 mm²13.3 Ω/km12 mm
PUR CY oil resistant control cable 300/500 V 5 core 2.5 mm²5 core2.5 mm²7.98 Ω/km13 mm
PUR CY oil resistant control cable 300/500 V 5 core 4 mm²5 core4 mm²4.95 Ω/km14 mm
PUR CY oil resistant control cable 300/500 V 7 core 0.5 mm²7 core0.5 mm²39.0 Ω/km12 mm
PUR CY oil resistant control cable 300/500 V 7 core 0.75 mm²7 core0.75 mm²26.0 Ω/km12 mm
PUR CY oil resistant control cable 300/500 V 7 core 1.0 mm²7 core1.0 mm²19.5 Ω/km12 mm
PUR CY oil resistant control cable 300/500 V 7 core 1.5 mm²7 core1.5 mm²13.3 Ω/km13 mm
PUR CY oil resistant control cable 300/500 V 7 core 2.5 mm²7 core2.5 mm²7.98 Ω/km14 mm
PUR CY oil resistant control cable 300/500 V 7 core 4 mm²7 core4 mm²4.95 Ω/km15 mm
PUR CY oil resistant control cable 300/500 V 12 core 0.5 mm²12 core0.5 mm²39.0 Ω/km13 mm
PUR CY oil resistant control cable 300/500 V 12 core 0.75 mm²12 core0.75 mm²26.0 Ω/km14 mm
PUR CY oil resistant control cable 300/500 V 12 core 1.0 mm²12 core1.0 mm²19.5 Ω/km14 mm
PUR CY oil resistant control cable 300/500 V 12 core 1.5 mm²12 core1.5 mm²13.3 Ω/km14 mm
PUR CY oil resistant control cable 300/500 V 12 core 2.5 mm²12 core2.5 mm²7.98 Ω/km15 mm
PUR CY oil resistant control cable 300/500 V 12 core 4 mm²12 core4 mm²4.95 Ω/km16 mm
PUR CY oil resistant control cable 300/500 V 18 core 0.5 mm²18 core0.5 mm²39.0 Ω/km14 mm
PUR CY oil resistant control cable 300/500 V 18 core 0.75 mm²18 core0.75 mm²26.0 Ω/km15 mm
PUR CY oil resistant control cable 300/500 V 18 core 1.0 mm²18 core1.0 mm²19.5 Ω/km15 mm
PUR CY oil resistant control cable 300/500 V 18 core 1.5 mm²18 core1.5 mm²13.3 Ω/km16 mm
PUR CY oil resistant control cable 300/500 V 18 core 2.5 mm²18 core2.5 mm²7.98 Ω/km16 mm
PUR CY oil resistant control cable 300/500 V 18 core 4 mm²18 core4 mm²4.95 Ω/km17 mm
Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
