LiYCY Screened Signal And Control Cable

LiYCY Screened Signal And Control Cable is a specific industrial control cable construction for electronic control systems, signal transmission, emc-sensitive panel wiring, using class 5 flexible copper conductor, pvc insulation, tinned copper braid screen and pvc outer sheath.

Standard: VDE 0812
Voltage class: 300 V
Conductor: Class 5 flexible copper conductor
Insulation / jacket: PVC

Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

Electronic control systems
Signal transmission
EMC-sensitive panel wiring
Instrumentation auxiliaries

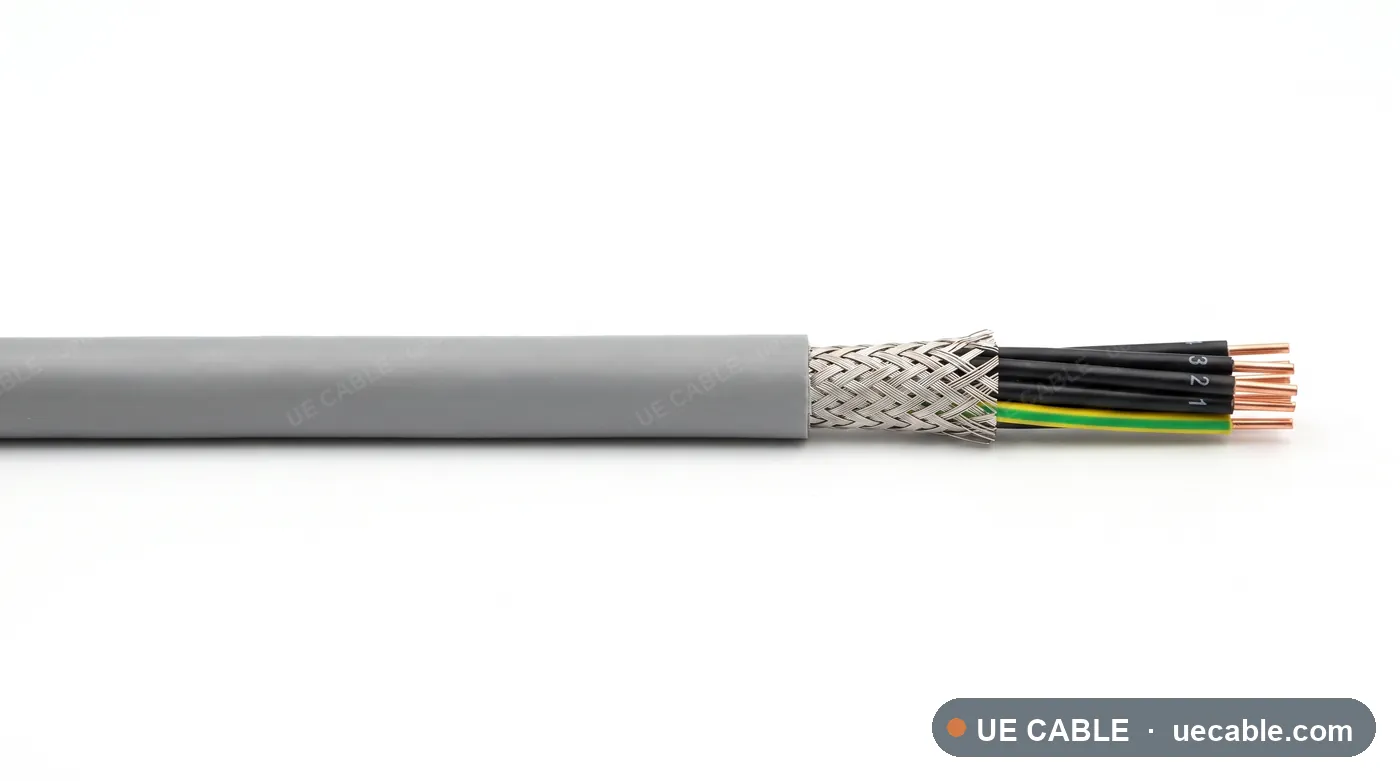

Cable Construction

Class 5 flexible copper conductor
PVC insulation
Numbered or color-coded core identification
Tinned copper braid screen
PVC outer sheath

Specifications

Select a cable size.

Each row below is a complete specification sheet — 48 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

300 V control specification references

Each row is an exact control cable cable specification sheet. Shared voltage, insulation, screen and sheath data are listed above.

Voltage class300 V
Screen / protectionTinned copper braid screen

Cable reference	Core / pair design	Conductor size	Max DC resistance at 20 °C	OD guide
LiYCY screened signal control cable 300 V 2 core 0.14 mm²	2 core	0.14 mm²	138 Ω/km	8 mm
LiYCY screened signal control cable 300 V 2 core 0.25 mm²	2 core	0.25 mm²	79.9 Ω/km	8 mm
LiYCY screened signal control cable 300 V 2 core 0.34 mm²	2 core	0.34 mm²	57.0 Ω/km	9 mm
LiYCY screened signal control cable 300 V 2 core 0.5 mm²	2 core	0.5 mm²	39.0 Ω/km	9 mm
LiYCY screened signal control cable 300 V 2 core 0.75 mm²	2 core	0.75 mm²	26.0 Ω/km	9 mm
LiYCY screened signal control cable 300 V 2 core 1.0 mm²	2 core	1.0 mm²	19.5 Ω/km	9 mm
LiYCY screened signal control cable 300 V 3 core 0.14 mm²	3 core	0.14 mm²	138 Ω/km	9 mm
LiYCY screened signal control cable 300 V 3 core 0.25 mm²	3 core	0.25 mm²	79.9 Ω/km	9 mm
LiYCY screened signal control cable 300 V 3 core 0.34 mm²	3 core	0.34 mm²	57.0 Ω/km	9 mm
LiYCY screened signal control cable 300 V 3 core 0.5 mm²	3 core	0.5 mm²	39.0 Ω/km	9 mm
LiYCY screened signal control cable 300 V 3 core 0.75 mm²	3 core	0.75 mm²	26.0 Ω/km	10 mm
LiYCY screened signal control cable 300 V 3 core 1.0 mm²	3 core	1.0 mm²	19.5 Ω/km	10 mm
LiYCY screened signal control cable 300 V 4 core 0.14 mm²	4 core	0.14 mm²	138 Ω/km	9 mm
LiYCY screened signal control cable 300 V 4 core 0.25 mm²	4 core	0.25 mm²	79.9 Ω/km	9 mm
LiYCY screened signal control cable 300 V 4 core 0.34 mm²	4 core	0.34 mm²	57.0 Ω/km	10 mm
LiYCY screened signal control cable 300 V 4 core 0.5 mm²	4 core	0.5 mm²	39.0 Ω/km	10 mm
LiYCY screened signal control cable 300 V 4 core 0.75 mm²	4 core	0.75 mm²	26.0 Ω/km	10 mm
LiYCY screened signal control cable 300 V 4 core 1.0 mm²	4 core	1.0 mm²	19.5 Ω/km	10 mm
LiYCY screened signal control cable 300 V 5 core 0.14 mm²	5 core	0.14 mm²	138 Ω/km	9 mm
LiYCY screened signal control cable 300 V 5 core 0.25 mm²	5 core	0.25 mm²	79.9 Ω/km	10 mm
LiYCY screened signal control cable 300 V 5 core 0.34 mm²	5 core	0.34 mm²	57.0 Ω/km	10 mm
LiYCY screened signal control cable 300 V 5 core 0.5 mm²	5 core	0.5 mm²	39.0 Ω/km	10 mm
LiYCY screened signal control cable 300 V 5 core 0.75 mm²	5 core	0.75 mm²	26.0 Ω/km	11 mm
LiYCY screened signal control cable 300 V 5 core 1.0 mm²	5 core	1.0 mm²	19.5 Ω/km	11 mm
LiYCY screened signal control cable 300 V 7 core 0.14 mm²	7 core	0.14 mm²	138 Ω/km	10 mm
LiYCY screened signal control cable 300 V 7 core 0.25 mm²	7 core	0.25 mm²	79.9 Ω/km	10 mm
LiYCY screened signal control cable 300 V 7 core 0.34 mm²	7 core	0.34 mm²	57.0 Ω/km	11 mm
LiYCY screened signal control cable 300 V 7 core 0.5 mm²	7 core	0.5 mm²	39.0 Ω/km	11 mm
LiYCY screened signal control cable 300 V 7 core 0.75 mm²	7 core	0.75 mm²	26.0 Ω/km	11 mm
LiYCY screened signal control cable 300 V 7 core 1.0 mm²	7 core	1.0 mm²	19.5 Ω/km	11 mm
LiYCY screened signal control cable 300 V 12 core 0.14 mm²	12 core	0.14 mm²	138 Ω/km	12 mm
LiYCY screened signal control cable 300 V 12 core 0.25 mm²	12 core	0.25 mm²	79.9 Ω/km	12 mm
LiYCY screened signal control cable 300 V 12 core 0.34 mm²	12 core	0.34 mm²	57.0 Ω/km	12 mm
LiYCY screened signal control cable 300 V 12 core 0.5 mm²	12 core	0.5 mm²	39.0 Ω/km	12 mm
LiYCY screened signal control cable 300 V 12 core 0.75 mm²	12 core	0.75 mm²	26.0 Ω/km	13 mm
LiYCY screened signal control cable 300 V 12 core 1.0 mm²	12 core	1.0 mm²	19.5 Ω/km	13 mm
LiYCY screened signal control cable 300 V 18 core 0.14 mm²	18 core	0.14 mm²	138 Ω/km	13 mm
LiYCY screened signal control cable 300 V 18 core 0.25 mm²	18 core	0.25 mm²	79.9 Ω/km	13 mm
LiYCY screened signal control cable 300 V 18 core 0.34 mm²	18 core	0.34 mm²	57.0 Ω/km	13 mm
LiYCY screened signal control cable 300 V 18 core 0.5 mm²	18 core	0.5 mm²	39.0 Ω/km	13 mm
LiYCY screened signal control cable 300 V 18 core 0.75 mm²	18 core	0.75 mm²	26.0 Ω/km	14 mm
LiYCY screened signal control cable 300 V 18 core 1.0 mm²	18 core	1.0 mm²	19.5 Ω/km	14 mm
LiYCY screened signal control cable 300 V 25 core 0.14 mm²	25 core	0.14 mm²	138 Ω/km	14 mm
LiYCY screened signal control cable 300 V 25 core 0.25 mm²	25 core	0.25 mm²	79.9 Ω/km	14 mm
LiYCY screened signal control cable 300 V 25 core 0.34 mm²	25 core	0.34 mm²	57.0 Ω/km	14 mm
LiYCY screened signal control cable 300 V 25 core 0.5 mm²	25 core	0.5 mm²	39.0 Ω/km	15 mm
LiYCY screened signal control cable 300 V 25 core 0.75 mm²	25 core	0.75 mm²	26.0 Ω/km	15 mm
LiYCY screened signal control cable 300 V 25 core 1.0 mm²	25 core	1.0 mm²	19.5 Ω/km	15 mm

Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
