EMC screened control cable

CY Screened Control Cable

CY Screened Control Cable is a specific industrial control cable construction for automation control, measurement circuits, machine wiring, using class 5 flexible copper conductor, pvc insulation, tinned copper wire braid screen and pvc outer sheath.

Standard: VDE 0250
Voltage class: 300/500 V
Conductor: Class 5 flexible copper conductor
Insulation / jacket: PVC

Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

Automation control
Measurement circuits
Machine wiring
EMC-sensitive plant routes

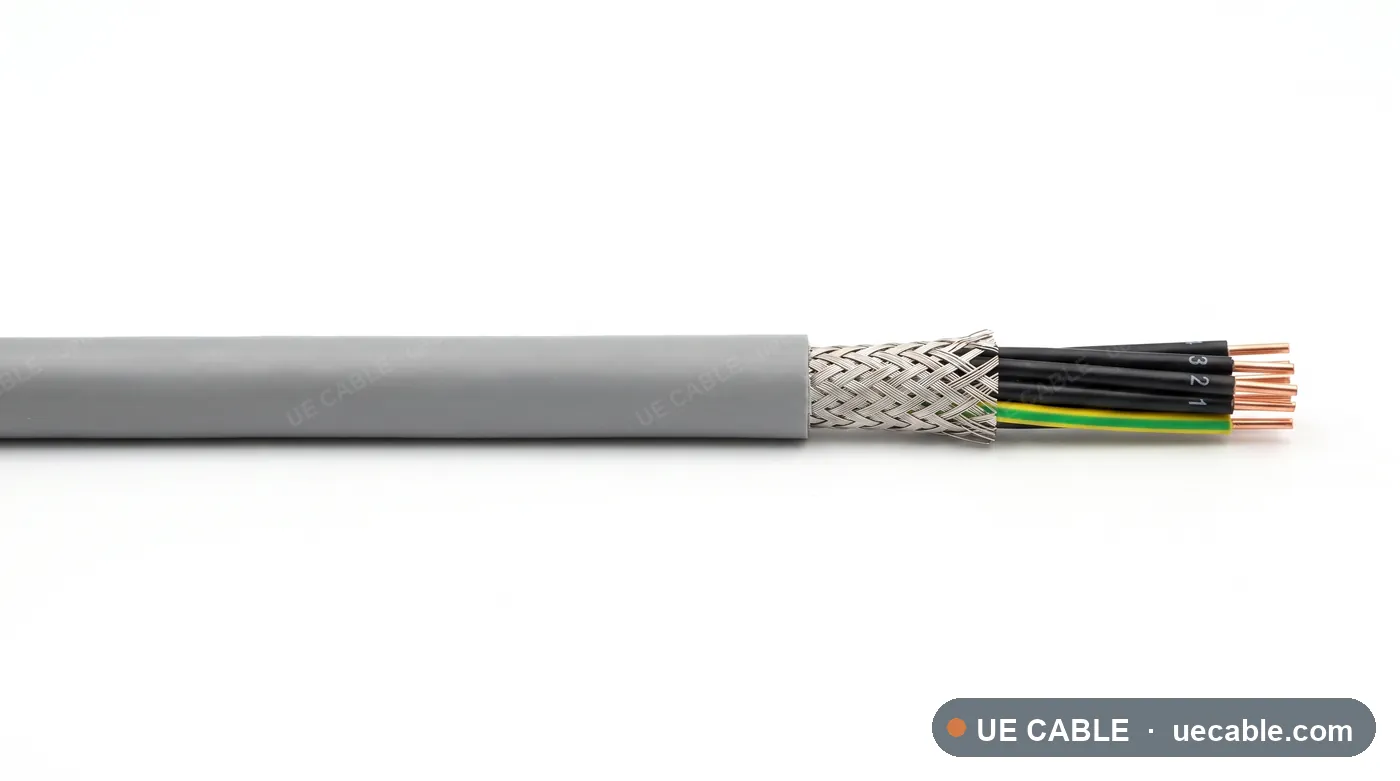

Cable Construction

Class 5 flexible copper conductor
PVC insulation
Numbered or color-coded core identification
Tinned copper wire braid screen
PVC outer sheath

Specifications

Select a cable size.

Each row below is a complete specification sheet — 60 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

300/500 V control specification references

Each row is an exact control cable cable specification sheet. Shared voltage, insulation, screen and sheath data are listed above.

Voltage class300/500 V
Screen / protectionTinned copper wire braid screen

Cable reference	Core / pair design	Conductor size	Max DC resistance at 20 °C	OD guide
CY screened control cable 300/500 V 2 core 0.75 mm²	2 core	0.75 mm²	26.0 Ω/km	10 mm
CY screened control cable 300/500 V 2 core 1.0 mm²	2 core	1.0 mm²	19.5 Ω/km	10 mm
CY screened control cable 300/500 V 2 core 1.5 mm²	2 core	1.5 mm²	13.3 Ω/km	11 mm
CY screened control cable 300/500 V 2 core 2.5 mm²	2 core	2.5 mm²	7.98 Ω/km	11 mm
CY screened control cable 300/500 V 2 core 4 mm²	2 core	4 mm²	4.95 Ω/km	12 mm
CY screened control cable 300/500 V 2 core 6 mm²	2 core	6 mm²	3.30 Ω/km	13 mm
CY screened control cable 300/500 V 3 core 0.75 mm²	3 core	0.75 mm²	26.0 Ω/km	10 mm
CY screened control cable 300/500 V 3 core 1.0 mm²	3 core	1.0 mm²	19.5 Ω/km	11 mm
CY screened control cable 300/500 V 3 core 1.5 mm²	3 core	1.5 mm²	13.3 Ω/km	11 mm
CY screened control cable 300/500 V 3 core 2.5 mm²	3 core	2.5 mm²	7.98 Ω/km	12 mm
CY screened control cable 300/500 V 3 core 4 mm²	3 core	4 mm²	4.95 Ω/km	13 mm
CY screened control cable 300/500 V 3 core 6 mm²	3 core	6 mm²	3.30 Ω/km	14 mm
CY screened control cable 300/500 V 4 core 0.75 mm²	4 core	0.75 mm²	26.0 Ω/km	11 mm
CY screened control cable 300/500 V 4 core 1.0 mm²	4 core	1.0 mm²	19.5 Ω/km	11 mm
CY screened control cable 300/500 V 4 core 1.5 mm²	4 core	1.5 mm²	13.3 Ω/km	11 mm
CY screened control cable 300/500 V 4 core 2.5 mm²	4 core	2.5 mm²	7.98 Ω/km	12 mm
CY screened control cable 300/500 V 4 core 4 mm²	4 core	4 mm²	4.95 Ω/km	13 mm
CY screened control cable 300/500 V 4 core 6 mm²	4 core	6 mm²	3.30 Ω/km	14 mm
CY screened control cable 300/500 V 5 core 0.75 mm²	5 core	0.75 mm²	26.0 Ω/km	11 mm
CY screened control cable 300/500 V 5 core 1.0 mm²	5 core	1.0 mm²	19.5 Ω/km	11 mm
CY screened control cable 300/500 V 5 core 1.5 mm²	5 core	1.5 mm²	13.3 Ω/km	12 mm
CY screened control cable 300/500 V 5 core 2.5 mm²	5 core	2.5 mm²	7.98 Ω/km	13 mm
CY screened control cable 300/500 V 5 core 4 mm²	5 core	4 mm²	4.95 Ω/km	13 mm
CY screened control cable 300/500 V 5 core 6 mm²	5 core	6 mm²	3.30 Ω/km	14 mm
CY screened control cable 300/500 V 7 core 0.75 mm²	7 core	0.75 mm²	26.0 Ω/km	12 mm
CY screened control cable 300/500 V 7 core 1.0 mm²	7 core	1.0 mm²	19.5 Ω/km	12 mm
CY screened control cable 300/500 V 7 core 1.5 mm²	7 core	1.5 mm²	13.3 Ω/km	13 mm
CY screened control cable 300/500 V 7 core 2.5 mm²	7 core	2.5 mm²	7.98 Ω/km	13 mm
CY screened control cable 300/500 V 7 core 4 mm²	7 core	4 mm²	4.95 Ω/km	14 mm
CY screened control cable 300/500 V 7 core 6 mm²	7 core	6 mm²	3.30 Ω/km	15 mm
CY screened control cable 300/500 V 12 core 0.75 mm²	12 core	0.75 mm²	26.0 Ω/km	13 mm
CY screened control cable 300/500 V 12 core 1.0 mm²	12 core	1.0 mm²	19.5 Ω/km	13 mm
CY screened control cable 300/500 V 12 core 1.5 mm²	12 core	1.5 mm²	13.3 Ω/km	14 mm
CY screened control cable 300/500 V 12 core 2.5 mm²	12 core	2.5 mm²	7.98 Ω/km	15 mm
CY screened control cable 300/500 V 12 core 4 mm²	12 core	4 mm²	4.95 Ω/km	16 mm
CY screened control cable 300/500 V 12 core 6 mm²	12 core	6 mm²	3.30 Ω/km	16 mm
CY screened control cable 300/500 V 18 core 0.75 mm²	18 core	0.75 mm²	26.0 Ω/km	14 mm
CY screened control cable 300/500 V 18 core 1.0 mm²	18 core	1.0 mm²	19.5 Ω/km	15 mm
CY screened control cable 300/500 V 18 core 1.5 mm²	18 core	1.5 mm²	13.3 Ω/km	15 mm
CY screened control cable 300/500 V 18 core 2.5 mm²	18 core	2.5 mm²	7.98 Ω/km	16 mm
CY screened control cable 300/500 V 18 core 4 mm²	18 core	4 mm²	4.95 Ω/km	17 mm
CY screened control cable 300/500 V 18 core 6 mm²	18 core	6 mm²	3.30 Ω/km	18 mm
CY screened control cable 300/500 V 25 core 0.75 mm²	25 core	0.75 mm²	26.0 Ω/km	16 mm
CY screened control cable 300/500 V 25 core 1.0 mm²	25 core	1.0 mm²	19.5 Ω/km	16 mm
CY screened control cable 300/500 V 25 core 1.5 mm²	25 core	1.5 mm²	13.3 Ω/km	16 mm
CY screened control cable 300/500 V 25 core 2.5 mm²	25 core	2.5 mm²	7.98 Ω/km	17 mm
CY screened control cable 300/500 V 25 core 4 mm²	25 core	4 mm²	4.95 Ω/km	18 mm
CY screened control cable 300/500 V 25 core 6 mm²	25 core	6 mm²	3.30 Ω/km	19 mm
CY screened control cable 300/500 V 34 core 0.75 mm²	34 core	0.75 mm²	26.0 Ω/km	17 mm
CY screened control cable 300/500 V 34 core 1.0 mm²	34 core	1.0 mm²	19.5 Ω/km	17 mm
CY screened control cable 300/500 V 34 core 1.5 mm²	34 core	1.5 mm²	13.3 Ω/km	18 mm
CY screened control cable 300/500 V 34 core 2.5 mm²	34 core	2.5 mm²	7.98 Ω/km	19 mm
CY screened control cable 300/500 V 34 core 4 mm²	34 core	4 mm²	4.95 Ω/km	19 mm
CY screened control cable 300/500 V 34 core 6 mm²	34 core	6 mm²	3.30 Ω/km	20 mm
CY screened control cable 300/500 V 50 core 0.75 mm²	50 core	0.75 mm²	26.0 Ω/km	19 mm
CY screened control cable 300/500 V 50 core 1.0 mm²	50 core	1.0 mm²	19.5 Ω/km	19 mm
CY screened control cable 300/500 V 50 core 1.5 mm²	50 core	1.5 mm²	13.3 Ω/km	20 mm
CY screened control cable 300/500 V 50 core 2.5 mm²	50 core	2.5 mm²	7.98 Ω/km	21 mm
CY screened control cable 300/500 V 50 core 4 mm²	50 core	4 mm²	4.95 Ω/km	21 mm
CY screened control cable 300/500 V 50 core 6 mm²	50 core	6 mm²	3.30 Ω/km	22 mm

Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
