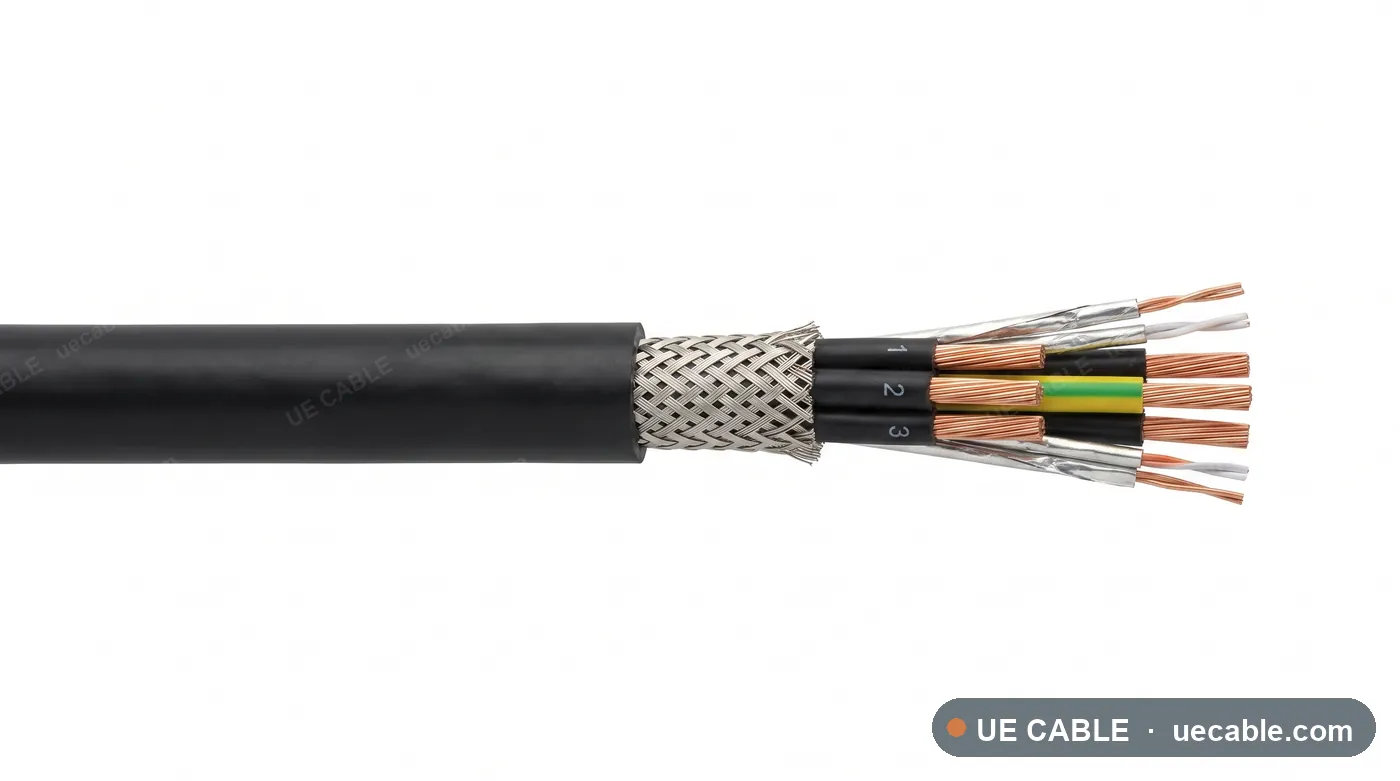

Hybrid Power Signal Drag Chain Cable cable construction reference

Hybrid continuous-flex cable

Hybrid Power Signal Drag Chain Cable

Hybrid Power Signal Drag Chain Cable is a continuous-flex cable construction for integrated machine axes, robotic tooling, moving gantries, using fine-stranded flexible copper conductor, tpe power-core and signal-core insulation, signal pair screen with overall braid option and pur low-adhesion abrasion resistant jacket.

Standard
UL 758
Voltage class
600 V power / 300 V signal
Conductor
Fine-stranded flexible copper conductor
Insulation / jacket
PUR low-adhesion abrasion resistant jacket
Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

Hybrid Power Signal Drag Chain Cable is a continuous-flex cable construction for integrated machine axes, robotic tooling, moving gantries, using fine-stranded flexible copper conductor, tpe power-core and signal-core insulation, signal pair screen with overall braid option and pur low-adhesion abrasion resistant jacket.

  • Integrated machine axes
  • Robotic tooling
  • Moving gantries
  • Automation modules

Cable Construction

  • Fine-stranded flexible copper conductor
  • TPE power-core and signal-core insulation
  • Optimized short lay length for repeated bending
  • Signal pair screen with overall braid option
  • PUR low-adhesion abrasion resistant jacket

Specifications

Select a cable size.

Each row below is a complete specification sheet — 12 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

Hybrid drag-chain duty specification references

Each row is an exact continuous-flex specification reference. Shared conductor class, insulation, screen, jacket, speed, acceleration and cycle guidance are listed above.

  • Motion classHybrid drag-chain duty
  • Cable usePower plus signal
  • Cycle guideUp to 5 million cycles guide
  • Bend radius10 x OD dynamic / 5 x OD fixed
Cable referenceCore designConductor sizeOD guide
Hybrid power signal drag chain cable 600 V power / 300 V signal Hybrid drag-chain duty Power plus signal 4 power cores + 2 signal pairs 1.5 mm²4 power cores + 2 signal pairs1.5 mm²16.9 mm
Hybrid power signal drag chain cable 600 V power / 300 V signal Hybrid drag-chain duty Power plus signal 4 power cores + 2 signal pairs 2.5 mm²4 power cores + 2 signal pairs2.5 mm²17.7 mm
Hybrid power signal drag chain cable 600 V power / 300 V signal Hybrid drag-chain duty Power plus signal 4 power cores + 2 signal pairs 4 mm²4 power cores + 2 signal pairs4 mm²18.7 mm
Hybrid power signal drag chain cable 600 V power / 300 V signal Hybrid drag-chain duty Power plus signal 4 power cores + 2 signal pairs 6 mm²4 power cores + 2 signal pairs6 mm²19.7 mm
Hybrid power signal drag chain cable 600 V power / 300 V signal Hybrid drag-chain duty Power plus signal 4 power cores + 4 signal pairs 1.5 mm²4 power cores + 4 signal pairs1.5 mm²17.9 mm
Hybrid power signal drag chain cable 600 V power / 300 V signal Hybrid drag-chain duty Power plus signal 4 power cores + 4 signal pairs 2.5 mm²4 power cores + 4 signal pairs2.5 mm²18.7 mm
Hybrid power signal drag chain cable 600 V power / 300 V signal Hybrid drag-chain duty Power plus signal 4 power cores + 4 signal pairs 4 mm²4 power cores + 4 signal pairs4 mm²19.7 mm
Hybrid power signal drag chain cable 600 V power / 300 V signal Hybrid drag-chain duty Power plus signal 4 power cores + 4 signal pairs 6 mm²4 power cores + 4 signal pairs6 mm²20.7 mm
Hybrid power signal drag chain cable 600 V power / 300 V signal Hybrid drag-chain duty Power plus signal 3 power cores + 2 data pairs 1.5 mm²3 power cores + 2 data pairs1.5 mm²16.7 mm
Hybrid power signal drag chain cable 600 V power / 300 V signal Hybrid drag-chain duty Power plus signal 3 power cores + 2 data pairs 2.5 mm²3 power cores + 2 data pairs2.5 mm²17.5 mm
Hybrid power signal drag chain cable 600 V power / 300 V signal Hybrid drag-chain duty Power plus signal 3 power cores + 2 data pairs 4 mm²3 power cores + 2 data pairs4 mm²18.4 mm
Hybrid power signal drag chain cable 600 V power / 300 V signal Hybrid drag-chain duty Power plus signal 3 power cores + 2 data pairs 6 mm²3 power cores + 2 data pairs6 mm²19.4 mm
Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.

Request Quote →
