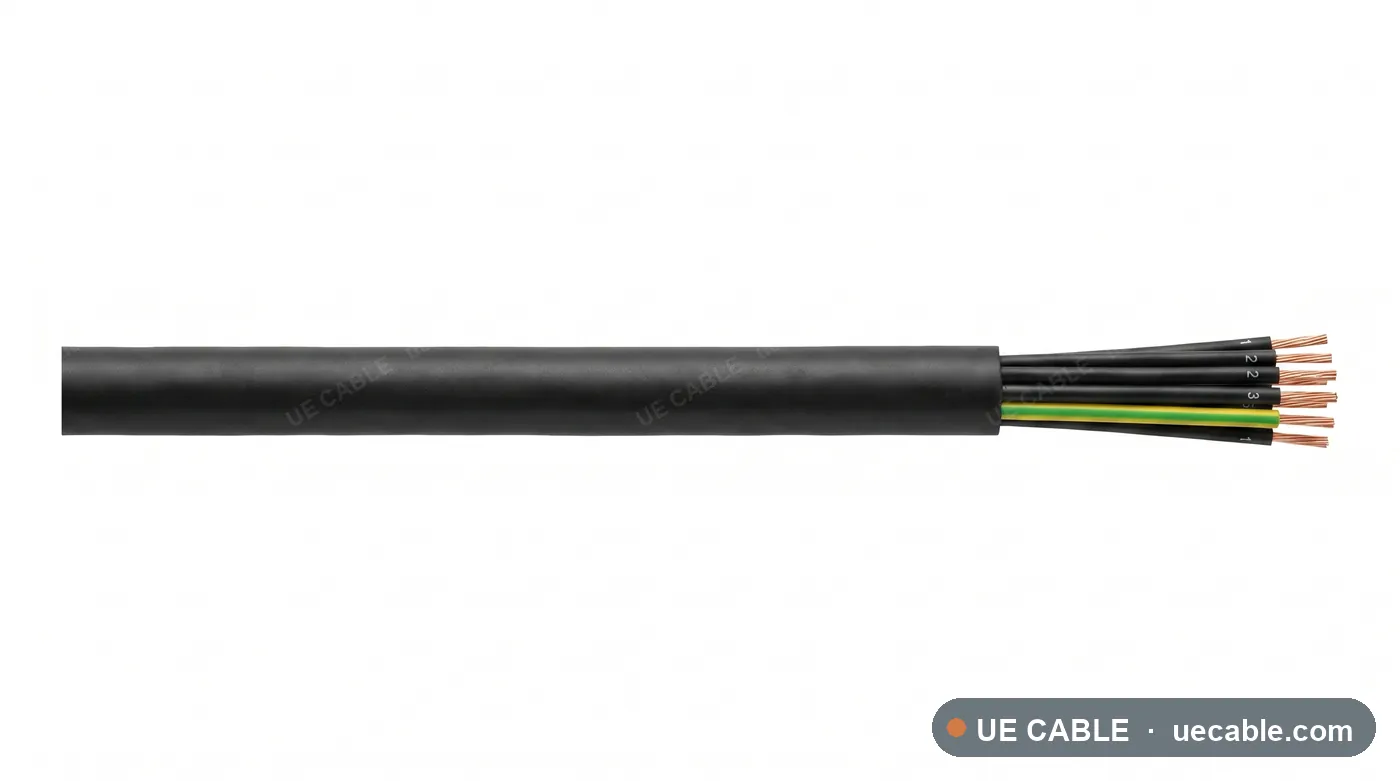

PUR Continuous Flex Control Cable cable construction reference

Continuous-flex control cable

PUR Continuous Flex Control Cable

PUR Continuous Flex Control Cable is a continuous-flex cable construction for cable tracks, automation plants, machine tools, using fine-stranded flexible copper conductor, high-flex pvc or tpe control-core insulation, control cable without emc screen and pur low-adhesion abrasion resistant jacket.

Standard
UL 758
Voltage class
300/500 V
Conductor
Fine-stranded flexible copper conductor
Insulation / jacket
PUR low-adhesion abrasion resistant jacket
Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

PUR Continuous Flex Control Cable is a continuous-flex cable construction for cable tracks, automation plants, machine tools, using fine-stranded flexible copper conductor, high-flex pvc or tpe control-core insulation, control cable without emc screen and pur low-adhesion abrasion resistant jacket.

  • Cable tracks
  • Automation plants
  • Machine tools
  • Packaging equipment

Cable Construction

  • Fine-stranded flexible copper conductor
  • High-flex PVC or TPE control-core insulation
  • Optimized short lay length for repeated bending
  • Control cable without EMC screen
  • PUR low-adhesion abrasion resistant jacket

Specifications

Select a cable size.

Each row below is a complete specification sheet — 42 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

Linear drag-chain duty specification references

Each row is an exact continuous-flex specification reference. Shared conductor class, insulation, screen, jacket, speed, acceleration and cycle guidance are listed above.

  • Motion classLinear drag-chain duty
  • Cable useControl circuits
  • Cycle guideUp to 10 million cycles guide
  • Bend radius7.5 x OD dynamic / 4 x OD fixed
Cable referenceCore designConductor sizeOD guide
PUR continuous flex control cable 300/500 V Linear drag-chain duty Control circuits 3 core 0.5 mm²3 core0.5 mm²11.5 mm
PUR continuous flex control cable 300/500 V Linear drag-chain duty Control circuits 3 core 0.75 mm²3 core0.75 mm²11.8 mm
PUR continuous flex control cable 300/500 V Linear drag-chain duty Control circuits 3 core 1.0 mm²3 core1.0 mm²12.1 mm
PUR continuous flex control cable 300/500 V Linear drag-chain duty Control circuits 3 core 1.5 mm²3 core1.5 mm²12.6 mm
PUR continuous flex control cable 300/500 V Linear drag-chain duty Control circuits 3 core 2.5 mm²3 core2.5 mm²13.4 mm
PUR continuous flex control cable 300/500 V Linear drag-chain duty Control circuits 3 core 4 mm²3 core4 mm²14.4 mm
PUR continuous flex control cable 300/500 V Linear drag-chain duty Control circuits 4 core 0.5 mm²4 core0.5 mm²11.9 mm
PUR continuous flex control cable 300/500 V Linear drag-chain duty Control circuits 4 core 0.75 mm²4 core0.75 mm²12.2 mm
PUR continuous flex control cable 300/500 V Linear drag-chain duty Control circuits 4 core 1.0 mm²4 core1.0 mm²12.6 mm
PUR continuous flex control cable 300/500 V Linear drag-chain duty Control circuits 4 core 1.5 mm²4 core1.5 mm²13.1 mm
PUR continuous flex control cable 300/500 V Linear drag-chain duty Control circuits 4 core 2.5 mm²4 core2.5 mm²13.9 mm
PUR continuous flex control cable 300/500 V Linear drag-chain duty Control circuits 4 core 4 mm²4 core4 mm²14.8 mm
PUR continuous flex control cable 300/500 V Linear drag-chain duty Control circuits 5 core 0.5 mm²5 core0.5 mm²12.3 mm
PUR continuous flex control cable 300/500 V Linear drag-chain duty Control circuits 5 core 0.75 mm²5 core0.75 mm²12.6 mm
PUR continuous flex control cable 300/500 V Linear drag-chain duty Control circuits 5 core 1.0 mm²5 core1.0 mm²12.9 mm
PUR continuous flex control cable 300/500 V Linear drag-chain duty Control circuits 5 core 1.5 mm²5 core1.5 mm²13.4 mm
PUR continuous flex control cable 300/500 V Linear drag-chain duty Control circuits 5 core 2.5 mm²5 core2.5 mm²14.2 mm
PUR continuous flex control cable 300/500 V Linear drag-chain duty Control circuits 5 core 4 mm²5 core4 mm²15.2 mm
PUR continuous flex control cable 300/500 V Linear drag-chain duty Control circuits 7 core 0.5 mm²7 core0.5 mm²12.9 mm
PUR continuous flex control cable 300/500 V Linear drag-chain duty Control circuits 7 core 0.75 mm²7 core0.75 mm²13.2 mm
PUR continuous flex control cable 300/500 V Linear drag-chain duty Control circuits 7 core 1.0 mm²7 core1.0 mm²13.6 mm
PUR continuous flex control cable 300/500 V Linear drag-chain duty Control circuits 7 core 1.5 mm²7 core1.5 mm²14.1 mm
PUR continuous flex control cable 300/500 V Linear drag-chain duty Control circuits 7 core 2.5 mm²7 core2.5 mm²14.9 mm
PUR continuous flex control cable 300/500 V Linear drag-chain duty Control circuits 7 core 4 mm²7 core4 mm²15.8 mm
PUR continuous flex control cable 300/500 V Linear drag-chain duty Control circuits 12 core 0.5 mm²12 core0.5 mm²14.2 mm
PUR continuous flex control cable 300/500 V Linear drag-chain duty Control circuits 12 core 0.75 mm²12 core0.75 mm²14.5 mm
PUR continuous flex control cable 300/500 V Linear drag-chain duty Control circuits 12 core 1.0 mm²12 core1.0 mm²14.8 mm
PUR continuous flex control cable 300/500 V Linear drag-chain duty Control circuits 12 core 1.5 mm²12 core1.5 mm²15.3 mm
PUR continuous flex control cable 300/500 V Linear drag-chain duty Control circuits 12 core 2.5 mm²12 core2.5 mm²16.1 mm
PUR continuous flex control cable 300/500 V Linear drag-chain duty Control circuits 12 core 4 mm²12 core4 mm²17.1 mm
PUR continuous flex control cable 300/500 V Linear drag-chain duty Control circuits 18 core 0.5 mm²18 core0.5 mm²15.4 mm
PUR continuous flex control cable 300/500 V Linear drag-chain duty Control circuits 18 core 0.75 mm²18 core0.75 mm²15.7 mm
PUR continuous flex control cable 300/500 V Linear drag-chain duty Control circuits 18 core 1.0 mm²18 core1.0 mm²16.0 mm
PUR continuous flex control cable 300/500 V Linear drag-chain duty Control circuits 18 core 1.5 mm²18 core1.5 mm²16.5 mm
PUR continuous flex control cable 300/500 V Linear drag-chain duty Control circuits 18 core 2.5 mm²18 core2.5 mm²17.3 mm
PUR continuous flex control cable 300/500 V Linear drag-chain duty Control circuits 18 core 4 mm²18 core4 mm²18.3 mm
PUR continuous flex control cable 300/500 V Linear drag-chain duty Control circuits 25 core 0.5 mm²25 core0.5 mm²16.5 mm
PUR continuous flex control cable 300/500 V Linear drag-chain duty Control circuits 25 core 0.75 mm²25 core0.75 mm²16.9 mm
PUR continuous flex control cable 300/500 V Linear drag-chain duty Control circuits 25 core 1.0 mm²25 core1.0 mm²17.2 mm
PUR continuous flex control cable 300/500 V Linear drag-chain duty Control circuits 25 core 1.5 mm²25 core1.5 mm²17.7 mm
PUR continuous flex control cable 300/500 V Linear drag-chain duty Control circuits 25 core 2.5 mm²25 core2.5 mm²18.5 mm
PUR continuous flex control cable 300/500 V Linear drag-chain duty Control circuits 25 core 4 mm²25 core4 mm²19.4 mm
Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.

Request Quote →
