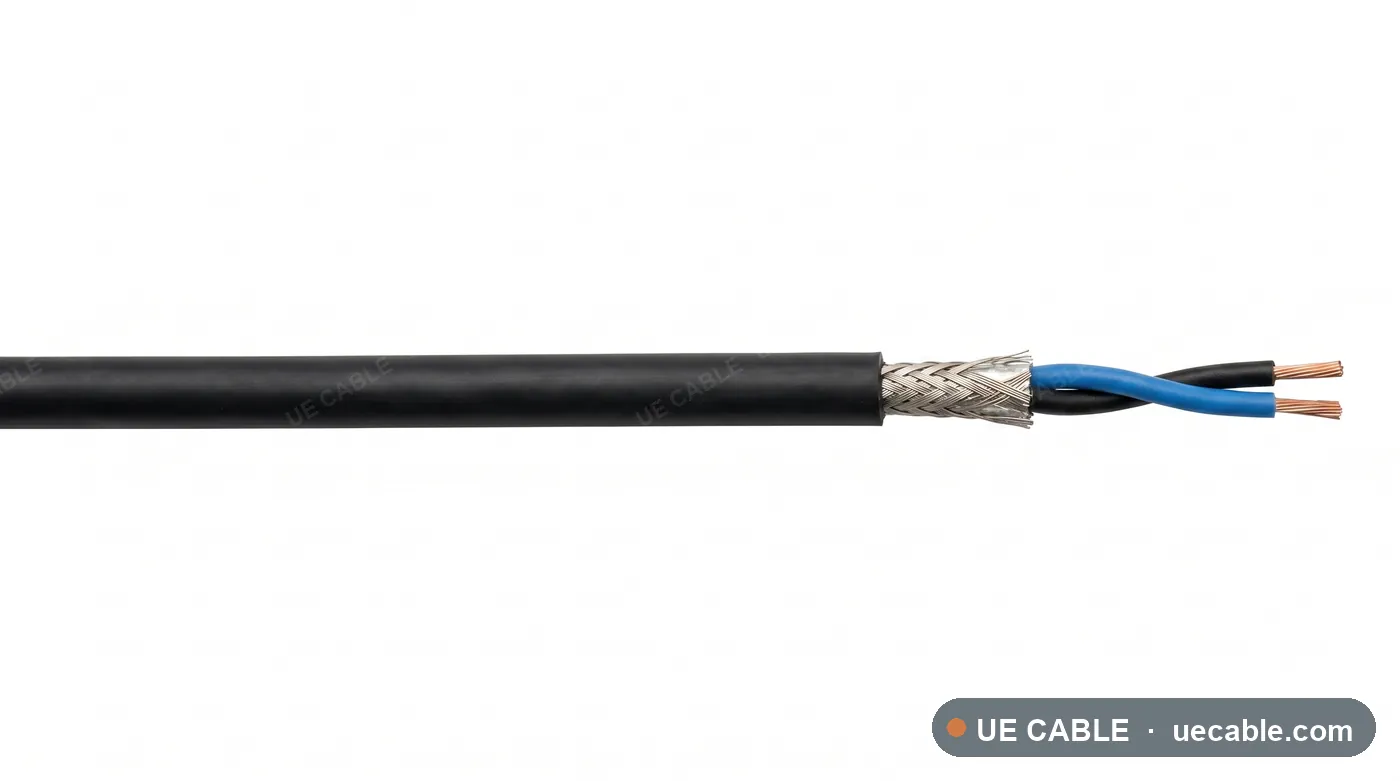

Continuous Flex Data TP Cable cable construction reference

Paired continuous-flex data cable

Continuous Flex Data TP Cable

Continuous Flex Data TP Cable is a continuous-flex cable construction for moving data links, sensors in cable tracks, machine communication, using fine-stranded flexible copper conductor, foam pe, pp or high-flex signal insulation, pair screen with overall braid screen option and pur or tpe data cable jacket.

Standard
UL 758
Voltage class
300 V signal
Conductor
Fine-stranded flexible copper conductor
Insulation / jacket
PUR or TPE data cable jacket
Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

Continuous Flex Data TP Cable is a continuous-flex cable construction for moving data links, sensors in cable tracks, machine communication, using fine-stranded flexible copper conductor, foam pe, pp or high-flex signal insulation, pair screen with overall braid screen option and pur or tpe data cable jacket.

  • Moving data links
  • Sensors in cable tracks
  • Machine communication
  • Automation feedback

Cable Construction

  • Fine-stranded flexible copper conductor
  • Foam PE, PP or high-flex signal insulation
  • Optimized short lay length for repeated bending
  • Pair screen with overall braid screen option
  • PUR or TPE data cable jacket

Specifications

Select a cable size.

Each row below is a complete specification sheet — 16 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

Data drag-chain duty specification references

Each row is an exact continuous-flex specification reference. Shared conductor class, insulation, screen, jacket, speed, acceleration and cycle guidance are listed above.

  • Motion classData drag-chain duty
  • Cable useData and signal transmission
  • Cycle guideUp to 10 million cycles guide
  • Bend radius10 x OD dynamic / 5 x OD fixed
Cable referenceCore designConductor sizeOD guide
Continuous flex data TP cable 300 V signal Data drag-chain duty Data and signal transmission 2 pair AWG26/72 pairAWG26/722.2 mm
Continuous flex data TP cable 300 V signal Data drag-chain duty Data and signal transmission 2 pair AWG24/72 pairAWG24/721.7 mm
Continuous flex data TP cable 300 V signal Data drag-chain duty Data and signal transmission 2 pair 0.34 mm²2 pair0.34 mm²12.0 mm
Continuous flex data TP cable 300 V signal Data drag-chain duty Data and signal transmission 2 pair 0.5 mm²2 pair0.5 mm²12.3 mm
Continuous flex data TP cable 300 V signal Data drag-chain duty Data and signal transmission 4 pair AWG26/74 pairAWG26/723.5 mm
Continuous flex data TP cable 300 V signal Data drag-chain duty Data and signal transmission 4 pair AWG24/74 pairAWG24/723.0 mm
Continuous flex data TP cable 300 V signal Data drag-chain duty Data and signal transmission 4 pair 0.34 mm²4 pair0.34 mm²13.3 mm
Continuous flex data TP cable 300 V signal Data drag-chain duty Data and signal transmission 4 pair 0.5 mm²4 pair0.5 mm²13.6 mm
Continuous flex data TP cable 300 V signal Data drag-chain duty Data and signal transmission 8 pair AWG26/78 pairAWG26/725.3 mm
Continuous flex data TP cable 300 V signal Data drag-chain duty Data and signal transmission 8 pair AWG24/78 pairAWG24/724.8 mm
Continuous flex data TP cable 300 V signal Data drag-chain duty Data and signal transmission 8 pair 0.34 mm²8 pair0.34 mm²15.1 mm
Continuous flex data TP cable 300 V signal Data drag-chain duty Data and signal transmission 8 pair 0.5 mm²8 pair0.5 mm²15.4 mm
Continuous flex data TP cable 300 V signal Data drag-chain duty Data and signal transmission 12 pair AWG26/712 pairAWG26/726.7 mm
Continuous flex data TP cable 300 V signal Data drag-chain duty Data and signal transmission 12 pair AWG24/712 pairAWG24/726.2 mm
Continuous flex data TP cable 300 V signal Data drag-chain duty Data and signal transmission 12 pair 0.34 mm²12 pair0.34 mm²16.5 mm
Continuous flex data TP cable 300 V signal Data drag-chain duty Data and signal transmission 12 pair 0.5 mm²12 pair0.5 mm²16.8 mm
Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.

Request Quote →
