Low-loss RF communication coaxial cable

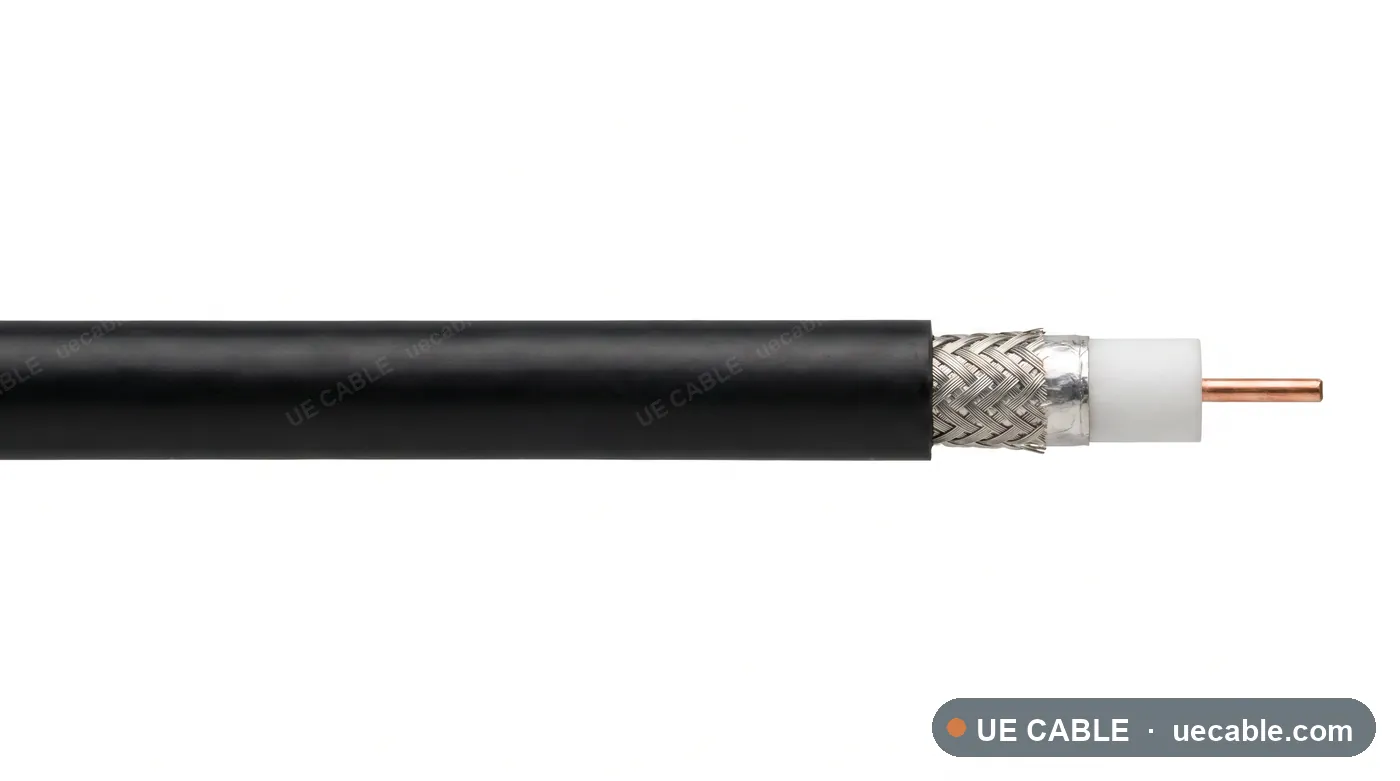

Low Loss 50 Ω Wireless Coaxial Cable is a coaxial cable reference for wireless communication, cellular systems, wi-fi antennas with impedance, shielding, dielectric and loss data separated in the specification matrix.
Cable Type Data
Low Loss 50 Ω Wireless Coaxial Cable is a coaxial cable reference for wireless communication, cellular systems, wi-fi antennas with impedance, shielding, dielectric and loss data separated in the specification matrix.
Specifications
Each row below is a complete specification sheet — 12 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.
| Cable reference | Coax reference | Center conductor | Jacket | OD guide | Electrical reference |
|---|---|---|---|---|---|
| Low Loss 195 PE outdoor Coaxial Cable | Low Loss 195 | Solid bare copper conductor | PE outdoor jacket | 4.95 mm | 79 pF/m nominal; 0.50 dB/m at 900 MHz guide; 83% nominal velocity factor |
| Low Loss 195 FR-PVC indoor/outdoor Coaxial Cable | Low Loss 195 | Solid bare copper conductor | FR-PVC indoor/outdoor jacket | 4.95 mm | 79 pF/m nominal; 0.50 dB/m at 900 MHz guide; 83% nominal velocity factor |
| Low Loss 195 LSZH Coaxial Cable | Low Loss 195 | Solid bare copper conductor | LSZH jacket | 4.95 mm | 79 pF/m nominal; 0.50 dB/m at 900 MHz guide; 83% nominal velocity factor |
| Low Loss 240 PE outdoor Coaxial Cable | Low Loss 240 | Solid bare copper conductor | PE outdoor jacket | 6.10 mm | 79 pF/m nominal; 0.37 dB/m at 900 MHz guide; 83% nominal velocity factor |
| Low Loss 240 FR-PVC indoor/outdoor Coaxial Cable | Low Loss 240 | Solid bare copper conductor | FR-PVC indoor/outdoor jacket | 6.10 mm | 79 pF/m nominal; 0.37 dB/m at 900 MHz guide; 83% nominal velocity factor |
| Low Loss 240 LSZH Coaxial Cable | Low Loss 240 | Solid bare copper conductor | LSZH jacket | 6.10 mm | 79 pF/m nominal; 0.37 dB/m at 900 MHz guide; 83% nominal velocity factor |
| Low Loss 400 PE outdoor Coaxial Cable | Low Loss 400 | Solid bare copper or copper-clad aluminium conductor | PE outdoor jacket | 10.30 mm | 79 pF/m nominal; 0.22 dB/m at 900 MHz guide; 85% nominal velocity factor |
| Low Loss 400 FR-PVC indoor/outdoor Coaxial Cable | Low Loss 400 | Solid bare copper or copper-clad aluminium conductor | FR-PVC indoor/outdoor jacket | 10.30 mm | 79 pF/m nominal; 0.22 dB/m at 900 MHz guide; 85% nominal velocity factor |
| Low Loss 400 LSZH Coaxial Cable | Low Loss 400 | Solid bare copper or copper-clad aluminium conductor | LSZH jacket | 10.30 mm | 79 pF/m nominal; 0.22 dB/m at 900 MHz guide; 85% nominal velocity factor |
| Low Loss 600 PE outdoor Coaxial Cable | Low Loss 600 | Copper-clad aluminium conductor | PE outdoor jacket | 14.99 mm | 79 pF/m nominal; 0.14 dB/m at 900 MHz guide; 87% nominal velocity factor |
| Low Loss 600 FR-PVC indoor/outdoor Coaxial Cable | Low Loss 600 | Copper-clad aluminium conductor | FR-PVC indoor/outdoor jacket | 14.99 mm | 79 pF/m nominal; 0.14 dB/m at 900 MHz guide; 87% nominal velocity factor |
| Low Loss 600 LSZH Coaxial Cable | Low Loss 600 | Copper-clad aluminium conductor | LSZH jacket | 14.99 mm | 79 pF/m nominal; 0.14 dB/m at 900 MHz guide; 87% nominal velocity factor |
Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
