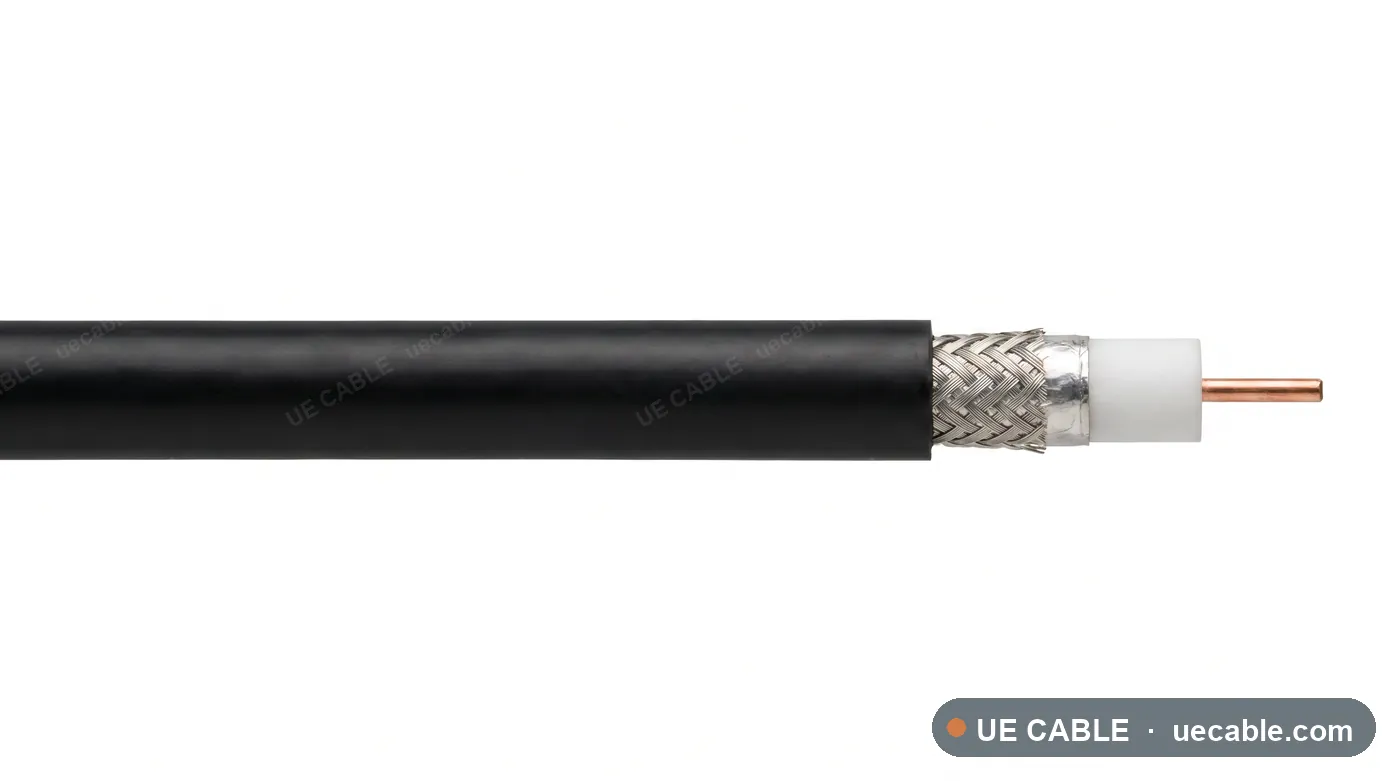

RG11 75 Ω Trunk Coaxial Cable cable construction reference

Longer route 75 Ω coaxial cable

RG11 75 Ω Trunk Coaxial Cable

RG11 75 Ω Trunk Coaxial Cable is a coaxial cable reference for longer catv runs, trunk video distribution, satellite backbone with impedance, shielding, dielectric and loss data separated in the specification matrix.

Standard
IEC 61196 / RG type references
Conductor
Solid bare copper or copper-clad steel conductor
Insulation / jacket
PVC, LSZH or PE outdoor jacket

Cable Type Data

Construction and applications.

Applications

RG11 75 Ω Trunk Coaxial Cable is a coaxial cable reference for longer catv runs, trunk video distribution, satellite backbone with impedance, shielding, dielectric and loss data separated in the specification matrix.

  • Longer CATV runs
  • Trunk video distribution
  • Satellite backbone
  • Low-loss 75 Ω routes

Cable Construction

  • Solid copper-clad or bare copper center conductor
  • Foam PE dielectric
  • Foil plus braid or quad shield
  • PVC, LSZH or PE jacket

Specifications

Select a cable size.

Each row below is a complete specification sheet — 3 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

Cable Specification Sheets

  • ApplicationLonger CATV, satellite and 75 Ω trunk route
  • Coax referenceRG11
  • Impedance75 Ω
  • Center conductorSolid bare copper or copper-clad steel conductor
  • DielectricFoam PE dielectric
  • Shield constructionFoil plus braid or quad shield
  • OD guide10.30 mm
  • Electrical reference53 pF/m nominal; 0.13 dB/m at 100 MHz guide; 82% nominal velocity factor
Cable referenceJacket
RG11 PE outdoor Coaxial CablePE outdoor jacket
RG11 UV-resistant PVC Coaxial CableUV-resistant PVC jacket
RG11 Direct burial PE Coaxial CableDirect burial PE jacket
Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
