Miniature RF coaxial cable

RG174 Miniature 50 Ω Coaxial Cable

RG174 Miniature 50 Ω Coaxial Cable is a coaxial cable reference for internal rf wiring, gps leads, compact antenna pigtails with impedance, shielding, dielectric and loss data separated in the specification matrix.

Standard: MIL-C-17 / RG type references
Conductor: Stranded copper-clad steel or tinned copper conductor
Insulation / jacket: PVC, LSZH or PE jacket

Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

Internal RF wiring
GPS leads
Compact antenna pigtails
Instrumentation jumpers

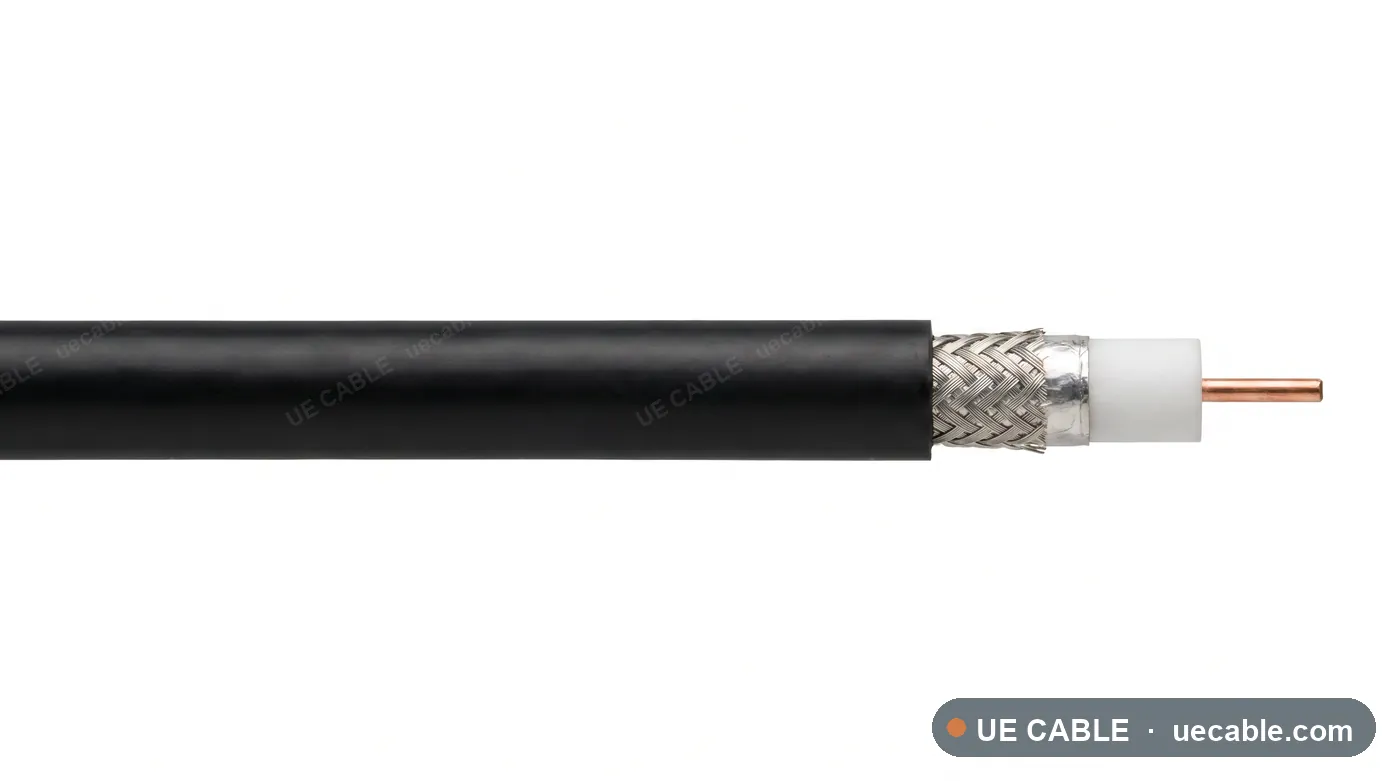

Cable Construction

Stranded copper-clad or tinned copper center conductor
Solid PE dielectric
Tinned copper braid screen
Flexible PVC, LSZH or PE jacket

Specifications

Select a cable size.

Each row below is a complete specification sheet — 2 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

Cable Specification Sheets

ApplicationCompact RF, GPS and instrumentation pigtail
Coax referenceRG174
Impedance50 Ω
Center conductorStranded copper-clad steel or tinned copper conductor
DielectricSolid PE dielectric
Shield constructionTinned copper braid screen
OD guide2.80 mm
Electrical reference101 pF/m nominal; 1.20 dB/m at 400 MHz guide; 66% nominal velocity factor

Cable reference	Jacket
RG174 PVC Coaxial Cable	PVC jacket
RG174 LSZH Coaxial Cable	LSZH jacket

Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
