Composite video, power and control cable
CCTV Composite Coaxial Cable is a coaxial cable reference for cctv cameras, security camera power, ptz control with impedance, shielding, dielectric and loss data separated in the specification matrix.

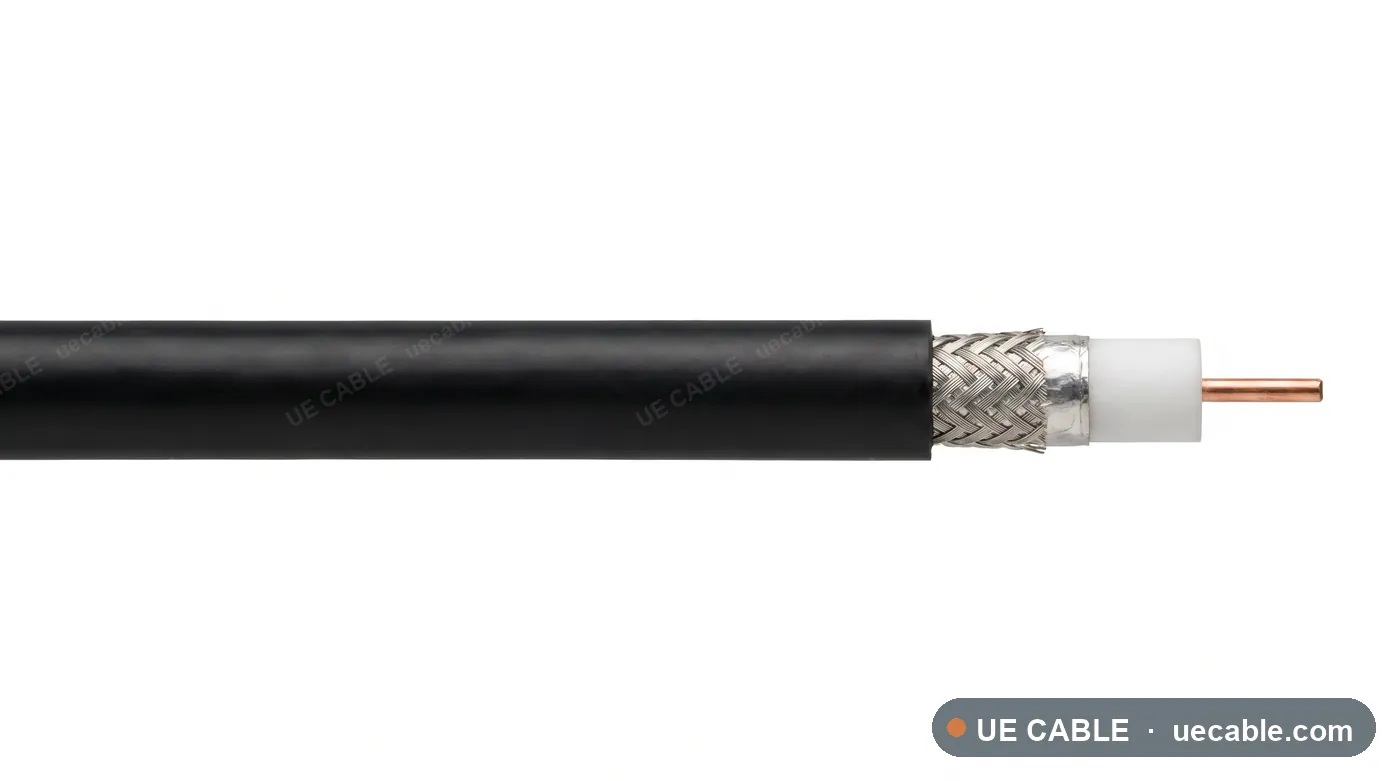

Cable Type Data
CCTV Composite Coaxial Cable is a coaxial cable reference for cctv cameras, security camera power, ptz control with impedance, shielding, dielectric and loss data separated in the specification matrix.
Specifications
Each row below is a complete specification sheet — 6 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.
| Cable reference | Application | Coax reference | Shield construction | Jacket | OD guide |
|---|---|---|---|---|---|
| RG59 + 2C 18 AWG CCTV Composite | CCTV video plus camera power | RG59 75 Ω coax + 2C 18 AWG power | Foil plus braid coax screen | PVC or LSZH composite jacket | 8.4 mm guide |
| RG59 + 2C 16 AWG CCTV Composite | Longer CCTV video plus camera power | RG59 75 Ω coax + 2C 16 AWG power | Foil plus braid coax screen | PVC or PE composite jacket | 9.2 mm guide |
| RG6 + 2C 18 AWG CCTV Composite | HD CCTV video plus camera power | RG6 75 Ω coax + 2C 18 AWG power | Foil plus braid coax screen | PVC or LSZH composite jacket | 9.0 mm guide |
| RG6 Quad + 2C 18 AWG CCTV Composite | High-shield CCTV plus power | RG6 quad shield coax + 2C 18 AWG power | Quad shield coax screen | PVC or PE composite jacket | 9.8 mm guide |
| RG59 + 2C 18 AWG + 2C 22 AWG | CCTV video, power and control | RG59 coax + power pair + control pair | Foil plus braid coax screen | PVC composite jacket | 10.8 mm guide |
| RG6 + 2C 18 AWG + 2C 22 AWG | CCTV video, power and PTZ control | RG6 coax + power pair + control pair | Foil plus braid coax screen | PE outdoor composite jacket | 11.4 mm guide |
Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
