STA armoured power cable

Steel Tape Armoured XLPE PVC Power Cable

Steel Tape Armoured XLPE PVC Power Cable is an armoured cable construction for direct burial, underground ducts, industrial plants, using copper or aluminium conductor, xlpe, pvc bedding, steel tape armour and pvc outer sheath.

Standard: IEC 60502-1
Voltage class: 0.6/1 kV
Conductor: Copper or aluminium conductor
Insulation / jacket: PVC outer sheath

Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

Direct burial
Underground ducts
Industrial plants
Infrastructure feeders

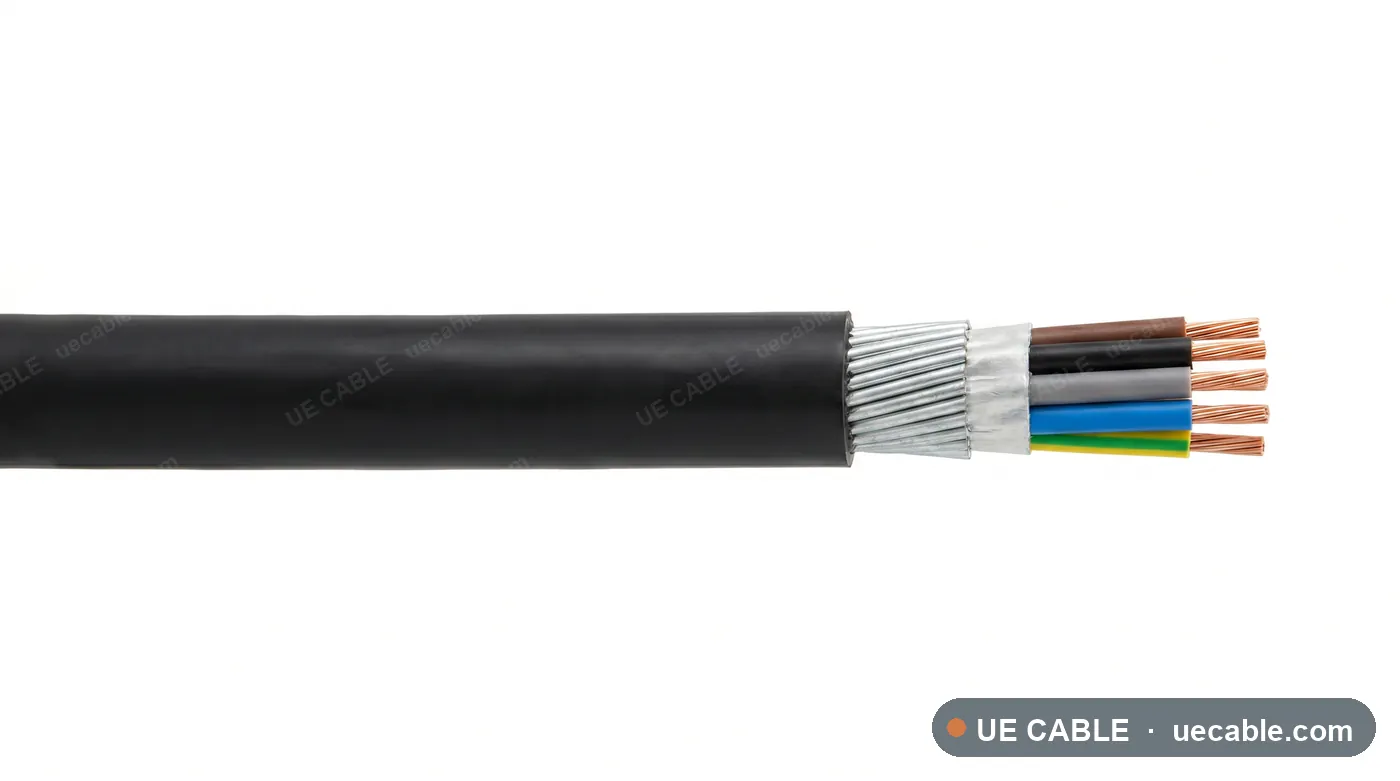

Cable Construction

Copper or aluminium conductor
XLPE insulation
PVC bedding
Steel tape armour
PVC outer sheath
Flame retardant PVC sheath options

Specifications

Select a cable size.

Each row below is a complete specification sheet — 91 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

Copper conductor

Each row is an exact armoured-cable cable specification sheet. Shared standard, insulation, bedding, armour principle and sheath data are listed above.

Voltage class0.6/1 kV
ConductorCopper conductor
ArmourSteel tape armour

Cable reference	Core layout	Cross-section	Max DC resistance at 20 °C	OD guide	Weight guide
XLPE/STA/PVC armoured cable 0.6/1 kV 2C Copper 1.5 mm² Steel tape armour PVC outer sheath	2C	1.5 mm²	12.1 Ω/km	23 mm	0.71 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 2C Copper 2.5 mm² Steel tape armour PVC outer sheath	2C	2.5 mm²	7.41 Ω/km	24 mm	0.73 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 2C Copper 4 mm² Steel tape armour PVC outer sheath	2C	4 mm²	4.61 Ω/km	25 mm	0.77 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 2C Copper 6 mm² Steel tape armour PVC outer sheath	2C	6 mm²	3.08 Ω/km	26 mm	0.81 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 2C Copper 10 mm² Steel tape armour PVC outer sheath	2C	10 mm²	1.83 Ω/km	28 mm	0.90 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 2C Copper 16 mm² Steel tape armour PVC outer sheath	2C	16 mm²	1.15 Ω/km	29 mm	1.03 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 2C Copper 25 mm² Steel tape armour PVC outer sheath	2C	25 mm²	0.727 Ω/km	32 mm	1.23 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 2C Copper 35 mm² Steel tape armour PVC outer sheath	2C	35 mm²	0.524 Ω/km	34 mm	1.45 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 2C Copper 50 mm² Steel tape armour PVC outer sheath	2C	50 mm²	0.387 Ω/km	36 mm	1.78 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 2C Copper 70 mm² Steel tape armour PVC outer sheath	2C	70 mm²	0.268 Ω/km	39 mm	2.22 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 2C Copper 95 mm² Steel tape armour PVC outer sheath	2C	95 mm²	0.193 Ω/km	42 mm	2.77 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 2C Copper 120 mm² Steel tape armour PVC outer sheath	2C	120 mm²	0.153 Ω/km	45 mm	3.32 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 2C Copper 150 mm² Steel tape armour PVC outer sheath	2C	150 mm²	0.124 Ω/km	48 mm	3.98 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 2C Copper 185 mm² Steel tape armour PVC outer sheath	2C	185 mm²	0.0991 Ω/km	51 mm	4.75 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 2C Copper 240 mm² Steel tape armour PVC outer sheath	2C	240 mm²	0.0754 Ω/km	55 mm	5.96 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 3C Copper 1.5 mm² Steel tape armour PVC outer sheath	3C	1.5 mm²	12.1 Ω/km	26 mm	0.73 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 3C Copper 2.5 mm² Steel tape armour PVC outer sheath	3C	2.5 mm²	7.41 Ω/km	26 mm	0.76 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 3C Copper 4 mm² Steel tape armour PVC outer sheath	3C	4 mm²	4.61 Ω/km	27 mm	0.81 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 3C Copper 6 mm² Steel tape armour PVC outer sheath	3C	6 mm²	3.08 Ω/km	28 mm	0.88 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 3C Copper 10 mm² Steel tape armour PVC outer sheath	3C	10 mm²	1.83 Ω/km	30 mm	1.01 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 3C Copper 16 mm² Steel tape armour PVC outer sheath	3C	16 mm²	1.15 Ω/km	32 mm	1.21 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 3C Copper 25 mm² Steel tape armour PVC outer sheath	3C	25 mm²	0.727 Ω/km	34 mm	1.50 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 3C Copper 35 mm² Steel tape armour PVC outer sheath	3C	35 mm²	0.524 Ω/km	36 mm	1.84 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 3C Copper 50 mm² Steel tape armour PVC outer sheath	3C	50 mm²	0.387 Ω/km	38 mm	2.33 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 3C Copper 70 mm² Steel tape armour PVC outer sheath	3C	70 mm²	0.268 Ω/km	41 mm	2.99 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 3C Copper 95 mm² Steel tape armour PVC outer sheath	3C	95 mm²	0.193 Ω/km	44 mm	3.81 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 3C Copper 120 mm² Steel tape armour PVC outer sheath	3C	120 mm²	0.153 Ω/km	47 mm	4.64 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 3C Copper 150 mm² Steel tape armour PVC outer sheath	3C	150 mm²	0.124 Ω/km	50 mm	5.63 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 3C Copper 185 mm² Steel tape armour PVC outer sheath	3C	185 mm²	0.0991 Ω/km	53 mm	6.78 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 3C Copper 240 mm² Steel tape armour PVC outer sheath	3C	240 mm²	0.0754 Ω/km	57 mm	8.60 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 4C Copper 1.5 mm² Steel tape armour PVC outer sheath	4C	1.5 mm²	12.1 Ω/km	28 mm	0.75 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 4C Copper 2.5 mm² Steel tape armour PVC outer sheath	4C	2.5 mm²	7.41 Ω/km	29 mm	0.79 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 4C Copper 4 mm² Steel tape armour PVC outer sheath	4C	4 mm²	4.61 Ω/km	30 mm	0.86 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 4C Copper 6 mm² Steel tape armour PVC outer sheath	4C	6 mm²	3.08 Ω/km	31 mm	0.94 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 4C Copper 10 mm² Steel tape armour PVC outer sheath	4C	10 mm²	1.83 Ω/km	32 mm	1.12 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 4C Copper 16 mm² Steel tape armour PVC outer sheath	4C	16 mm²	1.15 Ω/km	34 mm	1.38 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 4C Copper 25 mm² Steel tape armour PVC outer sheath	4C	25 mm²	0.727 Ω/km	36 mm	1.78 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 4C Copper 35 mm² Steel tape armour PVC outer sheath	4C	35 mm²	0.524 Ω/km	38 mm	2.22 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 4C Copper 50 mm² Steel tape armour PVC outer sheath	4C	50 mm²	0.387 Ω/km	41 mm	2.88 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 4C Copper 70 mm² Steel tape armour PVC outer sheath	4C	70 mm²	0.268 Ω/km	44 mm	3.76 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 4C Copper 95 mm² Steel tape armour PVC outer sheath	4C	95 mm²	0.193 Ω/km	47 mm	4.86 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 4C Copper 120 mm² Steel tape armour PVC outer sheath	4C	120 mm²	0.153 Ω/km	49 mm	5.96 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 4C Copper 150 mm² Steel tape armour PVC outer sheath	4C	150 mm²	0.124 Ω/km	52 mm	7.28 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 4C Copper 185 mm² Steel tape armour PVC outer sheath	4C	185 mm²	0.0991 Ω/km	55 mm	8.82 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 4C Copper 240 mm² Steel tape armour PVC outer sheath	4C	240 mm²	0.0754 Ω/km	59 mm	11.24 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 5C Copper 1.5 mm² Steel tape armour PVC outer sheath	5C	1.5 mm²	12.1 Ω/km	30 mm	0.76 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 5C Copper 2.5 mm² Steel tape armour PVC outer sheath	5C	2.5 mm²	7.41 Ω/km	31 mm	0.82 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 5C Copper 4 mm² Steel tape armour PVC outer sheath	5C	4 mm²	4.61 Ω/km	32 mm	0.90 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 5C Copper 6 mm² Steel tape armour PVC outer sheath	5C	6 mm²	3.08 Ω/km	33 mm	1.01 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 5C Copper 10 mm² Steel tape armour PVC outer sheath	5C	10 mm²	1.83 Ω/km	34 mm	1.23 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 5C Copper 16 mm² Steel tape armour PVC outer sheath	5C	16 mm²	1.15 Ω/km	36 mm	1.56 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 5C Copper 25 mm² Steel tape armour PVC outer sheath	5C	25 mm²	0.727 Ω/km	39 mm	2.06 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 5C Copper 35 mm² Steel tape armour PVC outer sheath	5C	35 mm²	0.524 Ω/km	41 mm	2.60 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 5C Copper 50 mm² Steel tape armour PVC outer sheath	5C	50 mm²	0.387 Ω/km	43 mm	3.43 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 5C Copper 70 mm² Steel tape armour PVC outer sheath	5C	70 mm²	0.268 Ω/km	46 mm	4.53 kg/m

Aluminium conductor

Each row is an exact armoured-cable cable specification sheet. Shared standard, insulation, bedding, armour principle and sheath data are listed above.

Voltage class0.6/1 kV
ConductorAluminium conductor
ArmourSteel tape armour

Cable reference	Core layout	Cross-section	Max DC resistance at 20 °C	OD guide	Weight guide
XLPE/STA/PVC armoured cable 0.6/1 kV 2C Aluminium 16 mm² Steel tape armour PVC outer sheath	2C	16 mm²	1.91 Ω/km	29 mm	0.82 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 2C Aluminium 25 mm² Steel tape armour PVC outer sheath	2C	25 mm²	1.20 Ω/km	32 mm	0.90 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 2C Aluminium 35 mm² Steel tape armour PVC outer sheath	2C	35 mm²	0.868 Ω/km	34 mm	0.99 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 2C Aluminium 50 mm² Steel tape armour PVC outer sheath	2C	50 mm²	0.641 Ω/km	36 mm	1.13 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 2C Aluminium 70 mm² Steel tape armour PVC outer sheath	2C	70 mm²	0.443 Ω/km	39 mm	1.31 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 2C Aluminium 95 mm² Steel tape armour PVC outer sheath	2C	95 mm²	0.320 Ω/km	42 mm	1.53 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 2C Aluminium 120 mm² Steel tape armour PVC outer sheath	2C	120 mm²	0.253 Ω/km	45 mm	1.76 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 2C Aluminium 150 mm² Steel tape armour PVC outer sheath	2C	150 mm²	0.206 Ω/km	48 mm	2.03 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 2C Aluminium 185 mm² Steel tape armour PVC outer sheath	2C	185 mm²	0.164 Ω/km	51 mm	2.35 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 2C Aluminium 240 mm² Steel tape armour PVC outer sheath	2C	240 mm²	0.125 Ω/km	55 mm	2.84 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 3C Aluminium 16 mm² Steel tape armour PVC outer sheath	3C	16 mm²	1.91 Ω/km	32 mm	0.90 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 3C Aluminium 25 mm² Steel tape armour PVC outer sheath	3C	25 mm²	1.20 Ω/km	34 mm	1.02 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 3C Aluminium 35 mm² Steel tape armour PVC outer sheath	3C	35 mm²	0.868 Ω/km	36 mm	1.15 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 3C Aluminium 50 mm² Steel tape armour PVC outer sheath	3C	50 mm²	0.641 Ω/km	38 mm	1.35 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 3C Aluminium 70 mm² Steel tape armour PVC outer sheath	3C	70 mm²	0.443 Ω/km	41 mm	1.62 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 3C Aluminium 95 mm² Steel tape armour PVC outer sheath	3C	95 mm²	0.320 Ω/km	44 mm	1.96 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 3C Aluminium 120 mm² Steel tape armour PVC outer sheath	3C	120 mm²	0.253 Ω/km	47 mm	2.30 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 3C Aluminium 150 mm² Steel tape armour PVC outer sheath	3C	150 mm²	0.206 Ω/km	50 mm	2.70 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 3C Aluminium 185 mm² Steel tape armour PVC outer sheath	3C	185 mm²	0.164 Ω/km	53 mm	3.18 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 3C Aluminium 240 mm² Steel tape armour PVC outer sheath	3C	240 mm²	0.125 Ω/km	57 mm	3.92 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 4C Aluminium 16 mm² Steel tape armour PVC outer sheath	4C	16 mm²	1.91 Ω/km	34 mm	0.97 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 4C Aluminium 25 mm² Steel tape armour PVC outer sheath	4C	25 mm²	1.20 Ω/km	36 mm	1.13 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 4C Aluminium 35 mm² Steel tape armour PVC outer sheath	4C	35 mm²	0.868 Ω/km	38 mm	1.31 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 4C Aluminium 50 mm² Steel tape armour PVC outer sheath	4C	50 mm²	0.641 Ω/km	41 mm	1.58 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 4C Aluminium 70 mm² Steel tape armour PVC outer sheath	4C	70 mm²	0.443 Ω/km	44 mm	1.94 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 4C Aluminium 95 mm² Steel tape armour PVC outer sheath	4C	95 mm²	0.320 Ω/km	47 mm	2.39 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 4C Aluminium 120 mm² Steel tape armour PVC outer sheath	4C	120 mm²	0.253 Ω/km	49 mm	2.84 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 4C Aluminium 150 mm² Steel tape armour PVC outer sheath	4C	150 mm²	0.206 Ω/km	52 mm	3.38 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 4C Aluminium 185 mm² Steel tape armour PVC outer sheath	4C	185 mm²	0.164 Ω/km	55 mm	4.01 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 4C Aluminium 240 mm² Steel tape armour PVC outer sheath	4C	240 mm²	0.125 Ω/km	59 mm	5.00 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 5C Aluminium 16 mm² Steel tape armour PVC outer sheath	5C	16 mm²	1.91 Ω/km	36 mm	1.04 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 5C Aluminium 25 mm² Steel tape armour PVC outer sheath	5C	25 mm²	1.20 Ω/km	39 mm	1.24 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 5C Aluminium 35 mm² Steel tape armour PVC outer sheath	5C	35 mm²	0.868 Ω/km	41 mm	1.47 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 5C Aluminium 50 mm² Steel tape armour PVC outer sheath	5C	50 mm²	0.641 Ω/km	43 mm	1.81 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 5C Aluminium 70 mm² Steel tape armour PVC outer sheath	5C	70 mm²	0.443 Ω/km	46 mm	2.26 kg/m
XLPE/STA/PVC armoured cable 0.6/1 kV 5C Aluminium 95 mm² Steel tape armour PVC outer sheath	5C	95 mm²	0.320 Ω/km	49 mm	2.82 kg/m

Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
