BS 6724 XLPE SWA LSZH Multicore Armoured Cable

BS 6724 XLPE SWA LSZH Multicore Armoured Cable is an armoured cable construction for public buildings, transport terminals, data centers, using copper or aluminium conductor, xlpe, lszh bedding, steel wire armour for multicore cable and lszh outer sheath.

Standard: BS 6724
Voltage class: 0.6/1 kV
Conductor: Copper or aluminium conductor
Insulation / jacket: LSZH outer sheath

Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

Public buildings
Transport terminals
Data centers
Industrial distribution

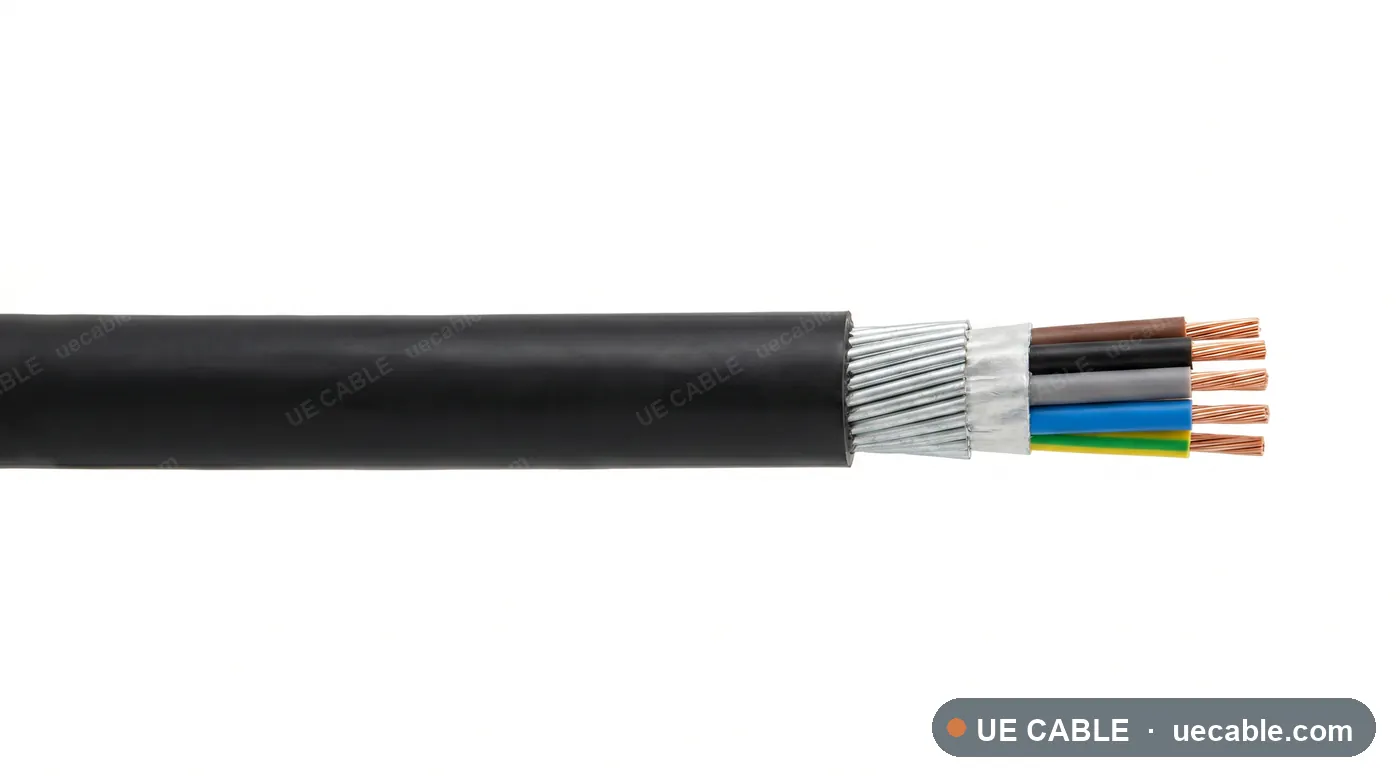

Cable Construction

Copper or aluminium conductor
XLPE insulation
LSZH bedding
Steel wire armour for multicore cable
LSZH outer sheath
Low smoke zero halogen and flame retardant

Specifications

Select a cable size.

Each row below is a complete specification sheet — 91 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

Copper conductor

Each row is an exact armoured-cable cable specification sheet. Shared standard, insulation, bedding, armour principle and sheath data are listed above.

Voltage class0.6/1 kV
ConductorCopper conductor
ArmourSteel wire armour

Cable reference	Core layout	Cross-section	Max DC resistance at 20 °C	OD guide	Weight guide
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 2C Copper 1.5 mm² Steel wire armour LSZH outer sheath	2C	1.5 mm²	12.1 Ω/km	25 mm	0.78 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 2C Copper 2.5 mm² Steel wire armour LSZH outer sheath	2C	2.5 mm²	7.41 Ω/km	26 mm	0.80 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 2C Copper 4 mm² Steel wire armour LSZH outer sheath	2C	4 mm²	4.61 Ω/km	27 mm	0.84 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 2C Copper 6 mm² Steel wire armour LSZH outer sheath	2C	6 mm²	3.08 Ω/km	28 mm	0.88 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 2C Copper 10 mm² Steel wire armour LSZH outer sheath	2C	10 mm²	1.83 Ω/km	30 mm	0.97 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 2C Copper 16 mm² Steel wire armour LSZH outer sheath	2C	16 mm²	1.15 Ω/km	31 mm	1.10 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 2C Copper 25 mm² Steel wire armour LSZH outer sheath	2C	25 mm²	0.727 Ω/km	34 mm	1.30 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 2C Copper 35 mm² Steel wire armour LSZH outer sheath	2C	35 mm²	0.524 Ω/km	36 mm	1.52 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 2C Copper 50 mm² Steel wire armour LSZH outer sheath	2C	50 mm²	0.387 Ω/km	38 mm	1.85 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 2C Copper 70 mm² Steel wire armour LSZH outer sheath	2C	70 mm²	0.268 Ω/km	41 mm	2.29 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 2C Copper 95 mm² Steel wire armour LSZH outer sheath	2C	95 mm²	0.193 Ω/km	44 mm	2.84 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 2C Copper 120 mm² Steel wire armour LSZH outer sheath	2C	120 mm²	0.153 Ω/km	47 mm	3.39 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 2C Copper 150 mm² Steel wire armour LSZH outer sheath	2C	150 mm²	0.124 Ω/km	50 mm	4.05 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 2C Copper 185 mm² Steel wire armour LSZH outer sheath	2C	185 mm²	0.0991 Ω/km	53 mm	4.82 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 2C Copper 240 mm² Steel wire armour LSZH outer sheath	2C	240 mm²	0.0754 Ω/km	57 mm	6.03 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 3C Copper 1.5 mm² Steel wire armour LSZH outer sheath	3C	1.5 mm²	12.1 Ω/km	28 mm	0.80 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 3C Copper 2.5 mm² Steel wire armour LSZH outer sheath	3C	2.5 mm²	7.41 Ω/km	28 mm	0.83 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 3C Copper 4 mm² Steel wire armour LSZH outer sheath	3C	4 mm²	4.61 Ω/km	29 mm	0.88 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 3C Copper 6 mm² Steel wire armour LSZH outer sheath	3C	6 mm²	3.08 Ω/km	30 mm	0.95 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 3C Copper 10 mm² Steel wire armour LSZH outer sheath	3C	10 mm²	1.83 Ω/km	32 mm	1.08 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 3C Copper 16 mm² Steel wire armour LSZH outer sheath	3C	16 mm²	1.15 Ω/km	34 mm	1.28 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 3C Copper 25 mm² Steel wire armour LSZH outer sheath	3C	25 mm²	0.727 Ω/km	36 mm	1.57 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 3C Copper 35 mm² Steel wire armour LSZH outer sheath	3C	35 mm²	0.524 Ω/km	38 mm	1.91 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 3C Copper 50 mm² Steel wire armour LSZH outer sheath	3C	50 mm²	0.387 Ω/km	40 mm	2.40 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 3C Copper 70 mm² Steel wire armour LSZH outer sheath	3C	70 mm²	0.268 Ω/km	43 mm	3.06 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 3C Copper 95 mm² Steel wire armour LSZH outer sheath	3C	95 mm²	0.193 Ω/km	46 mm	3.88 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 3C Copper 120 mm² Steel wire armour LSZH outer sheath	3C	120 mm²	0.153 Ω/km	49 mm	4.71 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 3C Copper 150 mm² Steel wire armour LSZH outer sheath	3C	150 mm²	0.124 Ω/km	52 mm	5.70 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 3C Copper 185 mm² Steel wire armour LSZH outer sheath	3C	185 mm²	0.0991 Ω/km	55 mm	6.85 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 3C Copper 240 mm² Steel wire armour LSZH outer sheath	3C	240 mm²	0.0754 Ω/km	59 mm	8.67 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 4C Copper 1.5 mm² Steel wire armour LSZH outer sheath	4C	1.5 mm²	12.1 Ω/km	30 mm	0.82 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 4C Copper 2.5 mm² Steel wire armour LSZH outer sheath	4C	2.5 mm²	7.41 Ω/km	31 mm	0.86 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 4C Copper 4 mm² Steel wire armour LSZH outer sheath	4C	4 mm²	4.61 Ω/km	32 mm	0.93 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 4C Copper 6 mm² Steel wire armour LSZH outer sheath	4C	6 mm²	3.08 Ω/km	33 mm	1.01 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 4C Copper 10 mm² Steel wire armour LSZH outer sheath	4C	10 mm²	1.83 Ω/km	34 mm	1.19 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 4C Copper 16 mm² Steel wire armour LSZH outer sheath	4C	16 mm²	1.15 Ω/km	36 mm	1.45 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 4C Copper 25 mm² Steel wire armour LSZH outer sheath	4C	25 mm²	0.727 Ω/km	38 mm	1.85 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 4C Copper 35 mm² Steel wire armour LSZH outer sheath	4C	35 mm²	0.524 Ω/km	40 mm	2.29 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 4C Copper 50 mm² Steel wire armour LSZH outer sheath	4C	50 mm²	0.387 Ω/km	43 mm	2.95 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 4C Copper 70 mm² Steel wire armour LSZH outer sheath	4C	70 mm²	0.268 Ω/km	46 mm	3.83 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 4C Copper 95 mm² Steel wire armour LSZH outer sheath	4C	95 mm²	0.193 Ω/km	49 mm	4.93 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 4C Copper 120 mm² Steel wire armour LSZH outer sheath	4C	120 mm²	0.153 Ω/km	51 mm	6.03 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 4C Copper 150 mm² Steel wire armour LSZH outer sheath	4C	150 mm²	0.124 Ω/km	54 mm	7.35 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 4C Copper 185 mm² Steel wire armour LSZH outer sheath	4C	185 mm²	0.0991 Ω/km	57 mm	8.89 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 4C Copper 240 mm² Steel wire armour LSZH outer sheath	4C	240 mm²	0.0754 Ω/km	61 mm	11.31 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 5C Copper 1.5 mm² Steel wire armour LSZH outer sheath	5C	1.5 mm²	12.1 Ω/km	32 mm	0.83 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 5C Copper 2.5 mm² Steel wire armour LSZH outer sheath	5C	2.5 mm²	7.41 Ω/km	33 mm	0.89 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 5C Copper 4 mm² Steel wire armour LSZH outer sheath	5C	4 mm²	4.61 Ω/km	34 mm	0.97 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 5C Copper 6 mm² Steel wire armour LSZH outer sheath	5C	6 mm²	3.08 Ω/km	35 mm	1.08 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 5C Copper 10 mm² Steel wire armour LSZH outer sheath	5C	10 mm²	1.83 Ω/km	36 mm	1.30 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 5C Copper 16 mm² Steel wire armour LSZH outer sheath	5C	16 mm²	1.15 Ω/km	38 mm	1.63 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 5C Copper 25 mm² Steel wire armour LSZH outer sheath	5C	25 mm²	0.727 Ω/km	41 mm	2.13 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 5C Copper 35 mm² Steel wire armour LSZH outer sheath	5C	35 mm²	0.524 Ω/km	43 mm	2.67 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 5C Copper 50 mm² Steel wire armour LSZH outer sheath	5C	50 mm²	0.387 Ω/km	45 mm	3.50 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 5C Copper 70 mm² Steel wire armour LSZH outer sheath	5C	70 mm²	0.268 Ω/km	48 mm	4.60 kg/m

Aluminium conductor

Each row is an exact armoured-cable cable specification sheet. Shared standard, insulation, bedding, armour principle and sheath data are listed above.

Voltage class0.6/1 kV
ConductorAluminium conductor
ArmourSteel wire armour

Cable reference	Core layout	Cross-section	Max DC resistance at 20 °C	OD guide	Weight guide
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 2C Aluminium 16 mm² Steel wire armour LSZH outer sheath	2C	16 mm²	1.91 Ω/km	31 mm	0.89 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 2C Aluminium 25 mm² Steel wire armour LSZH outer sheath	2C	25 mm²	1.20 Ω/km	34 mm	0.97 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 2C Aluminium 35 mm² Steel wire armour LSZH outer sheath	2C	35 mm²	0.868 Ω/km	36 mm	1.06 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 2C Aluminium 50 mm² Steel wire armour LSZH outer sheath	2C	50 mm²	0.641 Ω/km	38 mm	1.20 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 2C Aluminium 70 mm² Steel wire armour LSZH outer sheath	2C	70 mm²	0.443 Ω/km	41 mm	1.38 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 2C Aluminium 95 mm² Steel wire armour LSZH outer sheath	2C	95 mm²	0.320 Ω/km	44 mm	1.60 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 2C Aluminium 120 mm² Steel wire armour LSZH outer sheath	2C	120 mm²	0.253 Ω/km	47 mm	1.83 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 2C Aluminium 150 mm² Steel wire armour LSZH outer sheath	2C	150 mm²	0.206 Ω/km	50 mm	2.10 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 2C Aluminium 185 mm² Steel wire armour LSZH outer sheath	2C	185 mm²	0.164 Ω/km	53 mm	2.42 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 2C Aluminium 240 mm² Steel wire armour LSZH outer sheath	2C	240 mm²	0.125 Ω/km	57 mm	2.91 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 3C Aluminium 16 mm² Steel wire armour LSZH outer sheath	3C	16 mm²	1.91 Ω/km	34 mm	0.97 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 3C Aluminium 25 mm² Steel wire armour LSZH outer sheath	3C	25 mm²	1.20 Ω/km	36 mm	1.09 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 3C Aluminium 35 mm² Steel wire armour LSZH outer sheath	3C	35 mm²	0.868 Ω/km	38 mm	1.22 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 3C Aluminium 50 mm² Steel wire armour LSZH outer sheath	3C	50 mm²	0.641 Ω/km	40 mm	1.42 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 3C Aluminium 70 mm² Steel wire armour LSZH outer sheath	3C	70 mm²	0.443 Ω/km	43 mm	1.69 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 3C Aluminium 95 mm² Steel wire armour LSZH outer sheath	3C	95 mm²	0.320 Ω/km	46 mm	2.03 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 3C Aluminium 120 mm² Steel wire armour LSZH outer sheath	3C	120 mm²	0.253 Ω/km	49 mm	2.37 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 3C Aluminium 150 mm² Steel wire armour LSZH outer sheath	3C	150 mm²	0.206 Ω/km	52 mm	2.77 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 3C Aluminium 185 mm² Steel wire armour LSZH outer sheath	3C	185 mm²	0.164 Ω/km	55 mm	3.25 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 3C Aluminium 240 mm² Steel wire armour LSZH outer sheath	3C	240 mm²	0.125 Ω/km	59 mm	3.99 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 4C Aluminium 16 mm² Steel wire armour LSZH outer sheath	4C	16 mm²	1.91 Ω/km	36 mm	1.04 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 4C Aluminium 25 mm² Steel wire armour LSZH outer sheath	4C	25 mm²	1.20 Ω/km	38 mm	1.20 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 4C Aluminium 35 mm² Steel wire armour LSZH outer sheath	4C	35 mm²	0.868 Ω/km	40 mm	1.38 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 4C Aluminium 50 mm² Steel wire armour LSZH outer sheath	4C	50 mm²	0.641 Ω/km	43 mm	1.65 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 4C Aluminium 70 mm² Steel wire armour LSZH outer sheath	4C	70 mm²	0.443 Ω/km	46 mm	2.01 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 4C Aluminium 95 mm² Steel wire armour LSZH outer sheath	4C	95 mm²	0.320 Ω/km	49 mm	2.46 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 4C Aluminium 120 mm² Steel wire armour LSZH outer sheath	4C	120 mm²	0.253 Ω/km	51 mm	2.91 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 4C Aluminium 150 mm² Steel wire armour LSZH outer sheath	4C	150 mm²	0.206 Ω/km	54 mm	3.45 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 4C Aluminium 185 mm² Steel wire armour LSZH outer sheath	4C	185 mm²	0.164 Ω/km	57 mm	4.08 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 4C Aluminium 240 mm² Steel wire armour LSZH outer sheath	4C	240 mm²	0.125 Ω/km	61 mm	5.07 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 5C Aluminium 16 mm² Steel wire armour LSZH outer sheath	5C	16 mm²	1.91 Ω/km	38 mm	1.11 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 5C Aluminium 25 mm² Steel wire armour LSZH outer sheath	5C	25 mm²	1.20 Ω/km	41 mm	1.31 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 5C Aluminium 35 mm² Steel wire armour LSZH outer sheath	5C	35 mm²	0.868 Ω/km	43 mm	1.54 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 5C Aluminium 50 mm² Steel wire armour LSZH outer sheath	5C	50 mm²	0.641 Ω/km	45 mm	1.88 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 5C Aluminium 70 mm² Steel wire armour LSZH outer sheath	5C	70 mm²	0.443 Ω/km	48 mm	2.33 kg/m
BS 6724 XLPE/SWA/LSZH 0.6/1 kV 5C Aluminium 95 mm² Steel wire armour LSZH outer sheath	5C	95 mm²	0.320 Ω/km	51 mm	2.89 kg/m

Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.

Request Quote →
