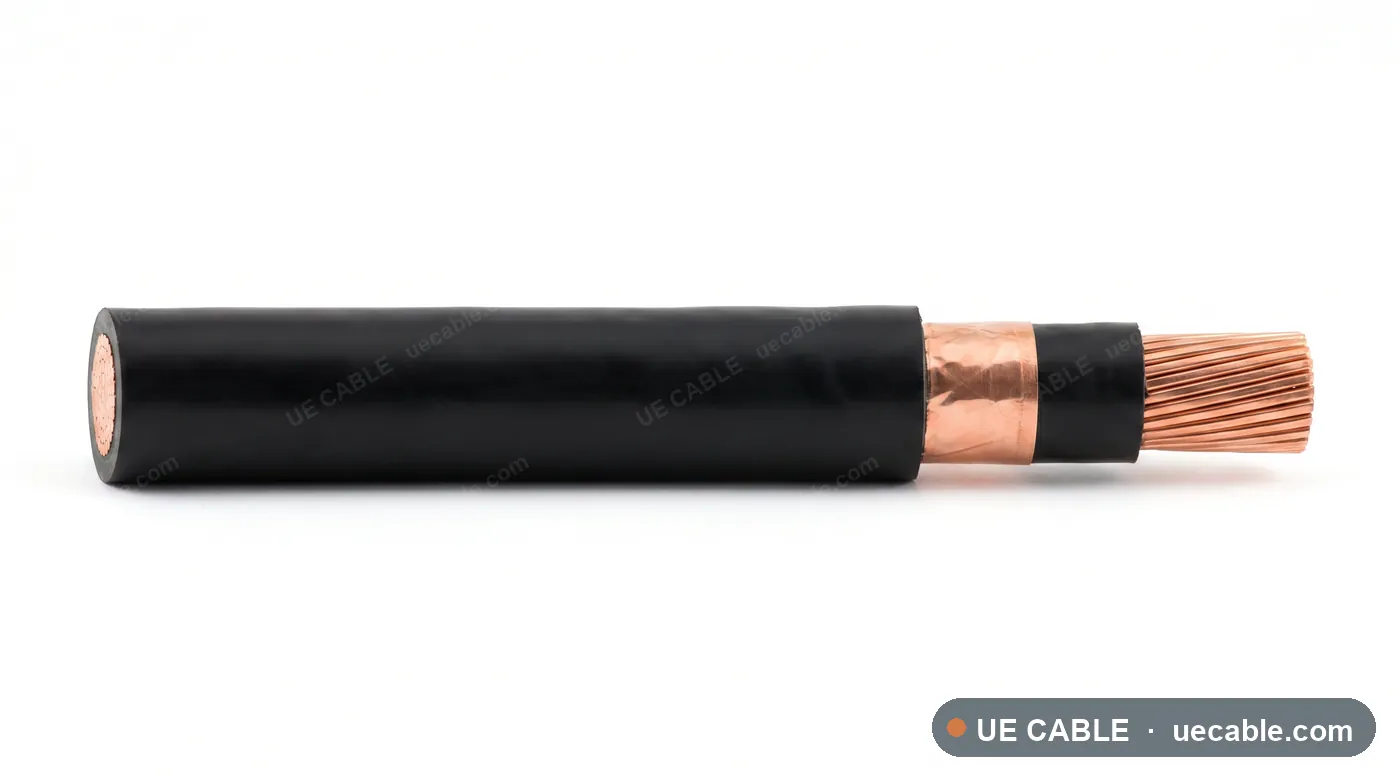

IEC 60502-1 XLPE SWA AWA PVC Armoured Cable cable construction reference

International LV armoured cable

IEC 60502-1 XLPE SWA AWA PVC Armoured Cable

IEC 60502-1 XLPE SWA AWA PVC Armoured Cable is an armoured cable construction for industrial feeders, infrastructure distribution, underground ducts, using copper or aluminium conductor, xlpe, pvc bedding, awa for single core, swa for multicore cable and pvc outer sheath.

Standard
IEC 60502-1
Voltage class
0.6/1 kV
Conductor
Copper or aluminium conductor
Insulation / jacket
PVC outer sheath
Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

IEC 60502-1 XLPE SWA AWA PVC Armoured Cable is an armoured cable construction for industrial feeders, infrastructure distribution, underground ducts, using copper or aluminium conductor, xlpe, pvc bedding, awa for single core, swa for multicore cable and pvc outer sheath.

  • Industrial feeders
  • Infrastructure distribution
  • Underground ducts
  • Outdoor power routes

Cable Construction

  • Copper or aluminium conductor
  • XLPE insulation
  • PVC bedding
  • AWA for single core, SWA for multicore cable
  • PVC outer sheath
  • Flame retardant PVC sheath options

Specifications

Select a cable size.

Each row below is a complete specification sheet — 106 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

Copper conductor

Each row is an exact armoured-cable cable specification sheet. Shared standard, insulation, bedding, armour principle and sheath data are listed above.

  • Voltage class0.6/1 kV
  • ConductorCopper conductor
Cable referenceCore layoutCross-sectionArmourMax DC resistance at 20 °COD guideWeight guide
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 1C Copper 16 mm² Aluminium wire armour PVC outer sheath1C16 mm²Aluminium wire armour1.15 Ω/km28 mm0.93 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 1C Copper 25 mm² Aluminium wire armour PVC outer sheath1C25 mm²Aluminium wire armour0.727 Ω/km30 mm1.02 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 1C Copper 50 mm² Aluminium wire armour PVC outer sheath1C50 mm²Aluminium wire armour0.387 Ω/km35 mm1.30 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 1C Copper 70 mm² Aluminium wire armour PVC outer sheath1C70 mm²Aluminium wire armour0.268 Ω/km38 mm1.52 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 1C Copper 95 mm² Aluminium wire armour PVC outer sheath1C95 mm²Aluminium wire armour0.193 Ω/km41 mm1.79 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 1C Copper 150 mm² Aluminium wire armour PVC outer sheath1C150 mm²Aluminium wire armour0.124 Ω/km46 mm2.40 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 1C Copper 240 mm² Aluminium wire armour PVC outer sheath1C240 mm²Aluminium wire armour0.0754 Ω/km53 mm3.39 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 1C Copper 400 mm² Aluminium wire armour PVC outer sheath1C400 mm²Aluminium wire armour0.0470 Ω/km63 mm5.15 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 2C Copper 1.5 mm² Steel wire armour PVC outer sheath2C1.5 mm²Steel wire armour12.1 Ω/km24 mm0.78 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 2C Copper 2.5 mm² Steel wire armour PVC outer sheath2C2.5 mm²Steel wire armour7.41 Ω/km25 mm0.80 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 2C Copper 4 mm² Steel wire armour PVC outer sheath2C4 mm²Steel wire armour4.61 Ω/km26 mm0.84 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 2C Copper 6 mm² Steel wire armour PVC outer sheath2C6 mm²Steel wire armour3.08 Ω/km27 mm0.88 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 2C Copper 10 mm² Steel wire armour PVC outer sheath2C10 mm²Steel wire armour1.83 Ω/km29 mm0.97 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 2C Copper 16 mm² Steel wire armour PVC outer sheath2C16 mm²Steel wire armour1.15 Ω/km30 mm1.10 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 2C Copper 25 mm² Steel wire armour PVC outer sheath2C25 mm²Steel wire armour0.727 Ω/km33 mm1.30 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 2C Copper 35 mm² Steel wire armour PVC outer sheath2C35 mm²Steel wire armour0.524 Ω/km35 mm1.52 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 2C Copper 50 mm² Steel wire armour PVC outer sheath2C50 mm²Steel wire armour0.387 Ω/km37 mm1.85 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 2C Copper 70 mm² Steel wire armour PVC outer sheath2C70 mm²Steel wire armour0.268 Ω/km40 mm2.29 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 2C Copper 95 mm² Steel wire armour PVC outer sheath2C95 mm²Steel wire armour0.193 Ω/km43 mm2.84 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 2C Copper 120 mm² Steel wire armour PVC outer sheath2C120 mm²Steel wire armour0.153 Ω/km46 mm3.39 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 2C Copper 150 mm² Steel wire armour PVC outer sheath2C150 mm²Steel wire armour0.124 Ω/km49 mm4.05 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 2C Copper 185 mm² Steel wire armour PVC outer sheath2C185 mm²Steel wire armour0.0991 Ω/km52 mm4.82 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 2C Copper 240 mm² Steel wire armour PVC outer sheath2C240 mm²Steel wire armour0.0754 Ω/km56 mm6.03 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 3C Copper 1.5 mm² Steel wire armour PVC outer sheath3C1.5 mm²Steel wire armour12.1 Ω/km27 mm0.80 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 3C Copper 2.5 mm² Steel wire armour PVC outer sheath3C2.5 mm²Steel wire armour7.41 Ω/km27 mm0.83 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 3C Copper 4 mm² Steel wire armour PVC outer sheath3C4 mm²Steel wire armour4.61 Ω/km28 mm0.88 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 3C Copper 6 mm² Steel wire armour PVC outer sheath3C6 mm²Steel wire armour3.08 Ω/km29 mm0.95 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 3C Copper 10 mm² Steel wire armour PVC outer sheath3C10 mm²Steel wire armour1.83 Ω/km31 mm1.08 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 3C Copper 16 mm² Steel wire armour PVC outer sheath3C16 mm²Steel wire armour1.15 Ω/km33 mm1.28 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 3C Copper 25 mm² Steel wire armour PVC outer sheath3C25 mm²Steel wire armour0.727 Ω/km35 mm1.57 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 3C Copper 35 mm² Steel wire armour PVC outer sheath3C35 mm²Steel wire armour0.524 Ω/km37 mm1.91 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 3C Copper 50 mm² Steel wire armour PVC outer sheath3C50 mm²Steel wire armour0.387 Ω/km39 mm2.40 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 3C Copper 70 mm² Steel wire armour PVC outer sheath3C70 mm²Steel wire armour0.268 Ω/km42 mm3.06 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 3C Copper 95 mm² Steel wire armour PVC outer sheath3C95 mm²Steel wire armour0.193 Ω/km45 mm3.88 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 3C Copper 120 mm² Steel wire armour PVC outer sheath3C120 mm²Steel wire armour0.153 Ω/km48 mm4.71 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 3C Copper 150 mm² Steel wire armour PVC outer sheath3C150 mm²Steel wire armour0.124 Ω/km51 mm5.70 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 3C Copper 185 mm² Steel wire armour PVC outer sheath3C185 mm²Steel wire armour0.0991 Ω/km54 mm6.85 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 3C Copper 240 mm² Steel wire armour PVC outer sheath3C240 mm²Steel wire armour0.0754 Ω/km58 mm8.67 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 4C Copper 1.5 mm² Steel wire armour PVC outer sheath4C1.5 mm²Steel wire armour12.1 Ω/km29 mm0.82 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 4C Copper 2.5 mm² Steel wire armour PVC outer sheath4C2.5 mm²Steel wire armour7.41 Ω/km30 mm0.86 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 4C Copper 4 mm² Steel wire armour PVC outer sheath4C4 mm²Steel wire armour4.61 Ω/km31 mm0.93 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 4C Copper 6 mm² Steel wire armour PVC outer sheath4C6 mm²Steel wire armour3.08 Ω/km32 mm1.01 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 4C Copper 10 mm² Steel wire armour PVC outer sheath4C10 mm²Steel wire armour1.83 Ω/km33 mm1.19 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 4C Copper 16 mm² Steel wire armour PVC outer sheath4C16 mm²Steel wire armour1.15 Ω/km35 mm1.45 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 4C Copper 25 mm² Steel wire armour PVC outer sheath4C25 mm²Steel wire armour0.727 Ω/km37 mm1.85 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 4C Copper 35 mm² Steel wire armour PVC outer sheath4C35 mm²Steel wire armour0.524 Ω/km39 mm2.29 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 4C Copper 50 mm² Steel wire armour PVC outer sheath4C50 mm²Steel wire armour0.387 Ω/km42 mm2.95 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 4C Copper 70 mm² Steel wire armour PVC outer sheath4C70 mm²Steel wire armour0.268 Ω/km45 mm3.83 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 4C Copper 95 mm² Steel wire armour PVC outer sheath4C95 mm²Steel wire armour0.193 Ω/km48 mm4.93 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 4C Copper 120 mm² Steel wire armour PVC outer sheath4C120 mm²Steel wire armour0.153 Ω/km50 mm6.03 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 4C Copper 150 mm² Steel wire armour PVC outer sheath4C150 mm²Steel wire armour0.124 Ω/km53 mm7.35 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 4C Copper 185 mm² Steel wire armour PVC outer sheath4C185 mm²Steel wire armour0.0991 Ω/km56 mm8.89 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 4C Copper 240 mm² Steel wire armour PVC outer sheath4C240 mm²Steel wire armour0.0754 Ω/km60 mm11.31 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 5C Copper 1.5 mm² Steel wire armour PVC outer sheath5C1.5 mm²Steel wire armour12.1 Ω/km31 mm0.83 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 5C Copper 2.5 mm² Steel wire armour PVC outer sheath5C2.5 mm²Steel wire armour7.41 Ω/km32 mm0.89 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 5C Copper 4 mm² Steel wire armour PVC outer sheath5C4 mm²Steel wire armour4.61 Ω/km33 mm0.97 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 5C Copper 6 mm² Steel wire armour PVC outer sheath5C6 mm²Steel wire armour3.08 Ω/km34 mm1.08 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 5C Copper 10 mm² Steel wire armour PVC outer sheath5C10 mm²Steel wire armour1.83 Ω/km35 mm1.30 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 5C Copper 16 mm² Steel wire armour PVC outer sheath5C16 mm²Steel wire armour1.15 Ω/km37 mm1.63 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 5C Copper 25 mm² Steel wire armour PVC outer sheath5C25 mm²Steel wire armour0.727 Ω/km40 mm2.13 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 5C Copper 35 mm² Steel wire armour PVC outer sheath5C35 mm²Steel wire armour0.524 Ω/km42 mm2.67 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 5C Copper 50 mm² Steel wire armour PVC outer sheath5C50 mm²Steel wire armour0.387 Ω/km44 mm3.50 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 5C Copper 70 mm² Steel wire armour PVC outer sheath5C70 mm²Steel wire armour0.268 Ω/km47 mm4.60 kg/m

Aluminium conductor

Each row is an exact armoured-cable cable specification sheet. Shared standard, insulation, bedding, armour principle and sheath data are listed above.

  • Voltage class0.6/1 kV
  • ConductorAluminium conductor
Cable referenceCore layoutCross-sectionArmourMax DC resistance at 20 °COD guideWeight guide
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 1C Aluminium 25 mm² Aluminium wire armour PVC outer sheath1C25 mm²Aluminium wire armour1.20 Ω/km30 mm0.86 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 1C Aluminium 50 mm² Aluminium wire armour PVC outer sheath1C50 mm²Aluminium wire armour0.641 Ω/km35 mm0.97 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 1C Aluminium 70 mm² Aluminium wire armour PVC outer sheath1C70 mm²Aluminium wire armour0.443 Ω/km38 mm1.06 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 1C Aluminium 95 mm² Aluminium wire armour PVC outer sheath1C95 mm²Aluminium wire armour0.320 Ω/km41 mm1.18 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 1C Aluminium 150 mm² Aluminium wire armour PVC outer sheath1C150 mm²Aluminium wire armour0.206 Ω/km46 mm1.42 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 1C Aluminium 240 mm² Aluminium wire armour PVC outer sheath1C240 mm²Aluminium wire armour0.125 Ω/km53 mm1.83 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 1C Aluminium 400 mm² Aluminium wire armour PVC outer sheath1C400 mm²Aluminium wire armour0.0778 Ω/km63 mm2.55 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 2C Aluminium 16 mm² Steel wire armour PVC outer sheath2C16 mm²Steel wire armour1.91 Ω/km30 mm0.89 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 2C Aluminium 25 mm² Steel wire armour PVC outer sheath2C25 mm²Steel wire armour1.20 Ω/km33 mm0.97 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 2C Aluminium 35 mm² Steel wire armour PVC outer sheath2C35 mm²Steel wire armour0.868 Ω/km35 mm1.06 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 2C Aluminium 50 mm² Steel wire armour PVC outer sheath2C50 mm²Steel wire armour0.641 Ω/km37 mm1.20 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 2C Aluminium 70 mm² Steel wire armour PVC outer sheath2C70 mm²Steel wire armour0.443 Ω/km40 mm1.38 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 2C Aluminium 95 mm² Steel wire armour PVC outer sheath2C95 mm²Steel wire armour0.320 Ω/km43 mm1.60 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 2C Aluminium 120 mm² Steel wire armour PVC outer sheath2C120 mm²Steel wire armour0.253 Ω/km46 mm1.83 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 2C Aluminium 150 mm² Steel wire armour PVC outer sheath2C150 mm²Steel wire armour0.206 Ω/km49 mm2.10 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 2C Aluminium 185 mm² Steel wire armour PVC outer sheath2C185 mm²Steel wire armour0.164 Ω/km52 mm2.42 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 2C Aluminium 240 mm² Steel wire armour PVC outer sheath2C240 mm²Steel wire armour0.125 Ω/km56 mm2.91 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 3C Aluminium 16 mm² Steel wire armour PVC outer sheath3C16 mm²Steel wire armour1.91 Ω/km33 mm0.97 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 3C Aluminium 25 mm² Steel wire armour PVC outer sheath3C25 mm²Steel wire armour1.20 Ω/km35 mm1.09 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 3C Aluminium 35 mm² Steel wire armour PVC outer sheath3C35 mm²Steel wire armour0.868 Ω/km37 mm1.22 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 3C Aluminium 50 mm² Steel wire armour PVC outer sheath3C50 mm²Steel wire armour0.641 Ω/km39 mm1.42 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 3C Aluminium 70 mm² Steel wire armour PVC outer sheath3C70 mm²Steel wire armour0.443 Ω/km42 mm1.69 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 3C Aluminium 95 mm² Steel wire armour PVC outer sheath3C95 mm²Steel wire armour0.320 Ω/km45 mm2.03 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 3C Aluminium 120 mm² Steel wire armour PVC outer sheath3C120 mm²Steel wire armour0.253 Ω/km48 mm2.37 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 3C Aluminium 150 mm² Steel wire armour PVC outer sheath3C150 mm²Steel wire armour0.206 Ω/km51 mm2.77 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 3C Aluminium 185 mm² Steel wire armour PVC outer sheath3C185 mm²Steel wire armour0.164 Ω/km54 mm3.25 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 3C Aluminium 240 mm² Steel wire armour PVC outer sheath3C240 mm²Steel wire armour0.125 Ω/km58 mm3.99 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 4C Aluminium 16 mm² Steel wire armour PVC outer sheath4C16 mm²Steel wire armour1.91 Ω/km35 mm1.04 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 4C Aluminium 25 mm² Steel wire armour PVC outer sheath4C25 mm²Steel wire armour1.20 Ω/km37 mm1.20 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 4C Aluminium 35 mm² Steel wire armour PVC outer sheath4C35 mm²Steel wire armour0.868 Ω/km39 mm1.38 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 4C Aluminium 50 mm² Steel wire armour PVC outer sheath4C50 mm²Steel wire armour0.641 Ω/km42 mm1.65 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 4C Aluminium 70 mm² Steel wire armour PVC outer sheath4C70 mm²Steel wire armour0.443 Ω/km45 mm2.01 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 4C Aluminium 95 mm² Steel wire armour PVC outer sheath4C95 mm²Steel wire armour0.320 Ω/km48 mm2.46 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 4C Aluminium 120 mm² Steel wire armour PVC outer sheath4C120 mm²Steel wire armour0.253 Ω/km50 mm2.91 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 4C Aluminium 150 mm² Steel wire armour PVC outer sheath4C150 mm²Steel wire armour0.206 Ω/km53 mm3.45 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 4C Aluminium 185 mm² Steel wire armour PVC outer sheath4C185 mm²Steel wire armour0.164 Ω/km56 mm4.08 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 4C Aluminium 240 mm² Steel wire armour PVC outer sheath4C240 mm²Steel wire armour0.125 Ω/km60 mm5.07 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 5C Aluminium 16 mm² Steel wire armour PVC outer sheath5C16 mm²Steel wire armour1.91 Ω/km37 mm1.11 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 5C Aluminium 25 mm² Steel wire armour PVC outer sheath5C25 mm²Steel wire armour1.20 Ω/km40 mm1.31 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 5C Aluminium 35 mm² Steel wire armour PVC outer sheath5C35 mm²Steel wire armour0.868 Ω/km42 mm1.54 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 5C Aluminium 50 mm² Steel wire armour PVC outer sheath5C50 mm²Steel wire armour0.641 Ω/km44 mm1.88 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 5C Aluminium 70 mm² Steel wire armour PVC outer sheath5C70 mm²Steel wire armour0.443 Ω/km47 mm2.33 kg/m
IEC 60502-1 XLPE armoured PVC 0.6/1 kV 5C Aluminium 95 mm² Steel wire armour PVC outer sheath5C95 mm²Steel wire armour0.320 Ω/km50 mm2.89 kg/m
Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
