Armoured multicore control cable

Armoured Control SWA LSZH Cable

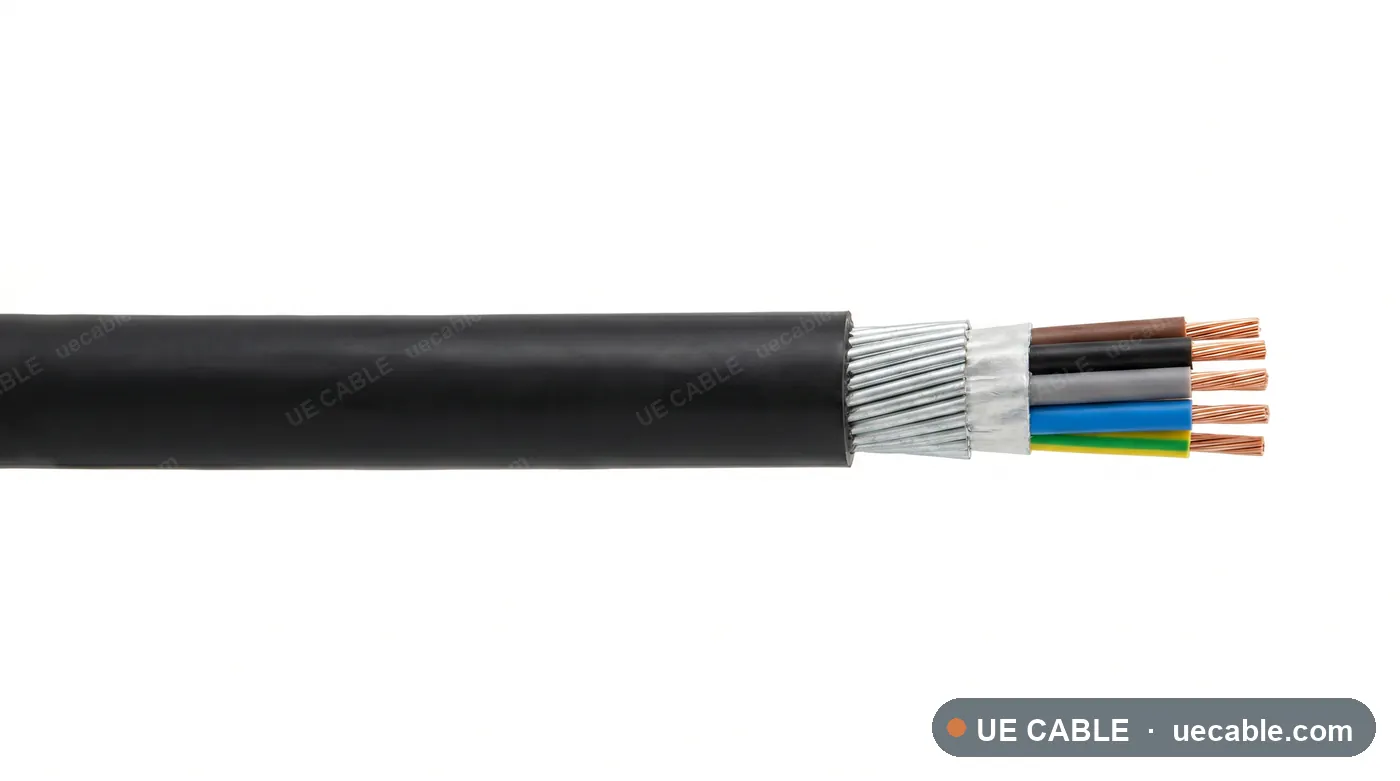

Armoured Control SWA LSZH Cable is an armoured cable construction for industrial controls, plant auxiliary circuits, cable tray routes, using copper conductor, xlpe or pvc control-core insulation, lszh bedding, steel wire armour for multicore control cable and lszh outer sheath.

Standard: IEC 60502-1 / BS 6724
Voltage class: 0.6/1 kV
Conductor: Copper conductor
Insulation / jacket: LSZH outer sheath

Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

Industrial controls
Plant auxiliary circuits
Cable tray routes
Outdoor control circuits

Cable Construction

Copper conductor
XLPE or PVC control-core insulation
LSZH bedding
Steel wire armour for multicore control cable
LSZH outer sheath
Low smoke zero halogen and flame retardant

Specifications

Select a cable size.

Each row below is a complete specification sheet — 15 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

Copper conductor

Each row is an exact armoured-cable cable specification sheet. Shared standard, insulation, bedding, armour principle and sheath data are listed above.

Voltage class0.6/1 kV
ConductorCopper conductor
ArmourSteel wire armour

Cable reference	Core layout	Cross-section	Max DC resistance at 20 °C	OD guide	Weight guide
Armoured control SWA LSZH 0.6/1 kV 7C Copper 1.5 mm² Steel wire armour LSZH outer sheath	7C	1.5 mm²	12.1 Ω/km	37 mm	0.87 kg/m
Armoured control SWA LSZH 0.6/1 kV 7C Copper 2.5 mm² Steel wire armour LSZH outer sheath	7C	2.5 mm²	7.41 Ω/km	38 mm	0.94 kg/m
Armoured control SWA LSZH 0.6/1 kV 7C Copper 4 mm² Steel wire armour LSZH outer sheath	7C	4 mm²	4.61 Ω/km	39 mm	1.06 kg/m
Armoured control SWA LSZH 0.6/1 kV 12C Copper 1.5 mm² Steel wire armour LSZH outer sheath	12C	1.5 mm²	12.1 Ω/km	48 mm	0.95 kg/m
Armoured control SWA LSZH 0.6/1 kV 12C Copper 2.5 mm² Steel wire armour LSZH outer sheath	12C	2.5 mm²	7.41 Ω/km	49 mm	1.08 kg/m
Armoured control SWA LSZH 0.6/1 kV 12C Copper 4 mm² Steel wire armour LSZH outer sheath	12C	4 mm²	4.61 Ω/km	50 mm	1.28 kg/m
Armoured control SWA LSZH 0.6/1 kV 19C Copper 1.5 mm² Steel wire armour LSZH outer sheath	19C	1.5 mm²	12.1 Ω/km	64 mm	1.06 kg/m
Armoured control SWA LSZH 0.6/1 kV 19C Copper 2.5 mm² Steel wire armour LSZH outer sheath	19C	2.5 mm²	7.41 Ω/km	65 mm	1.27 kg/m
Armoured control SWA LSZH 0.6/1 kV 19C Copper 4 mm² Steel wire armour LSZH outer sheath	19C	4 mm²	4.61 Ω/km	66 mm	1.59 kg/m
Armoured control SWA LSZH 0.6/1 kV 27C Copper 1.5 mm² Steel wire armour LSZH outer sheath	27C	1.5 mm²	12.1 Ω/km	83 mm	1.20 kg/m
Armoured control SWA LSZH 0.6/1 kV 27C Copper 2.5 mm² Steel wire armour LSZH outer sheath	27C	2.5 mm²	7.41 Ω/km	84 mm	1.49 kg/m
Armoured control SWA LSZH 0.6/1 kV 27C Copper 4 mm² Steel wire armour LSZH outer sheath	27C	4 mm²	4.61 Ω/km	85 mm	1.94 kg/m
Armoured control SWA LSZH 0.6/1 kV 37C Copper 1.5 mm² Steel wire armour LSZH outer sheath	37C	1.5 mm²	12.1 Ω/km	106 mm	1.36 kg/m
Armoured control SWA LSZH 0.6/1 kV 37C Copper 2.5 mm² Steel wire armour LSZH outer sheath	37C	2.5 mm²	7.41 Ω/km	107 mm	1.77 kg/m
Armoured control SWA LSZH 0.6/1 kV 37C Copper 4 mm² Steel wire armour LSZH outer sheath	37C	4 mm²	4.61 Ω/km	108 mm	2.38 kg/m

Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
