Heavy Duty 0.6/1 kV Rubber Pump Feeder Cable

Heavy Duty 0.6/1 kV Rubber Pump Feeder Cable is a submersible pump cable construction for industrial pumps, outdoor pump feeders, dewatering systems, using flexible copper conductor, epr rubber power-core insulation and heavy-duty rubber or cpe pump feeder sheath.

Standard: IEC 60245
Voltage class: 0.6/1 kV
Temperature class: Industrial pump service by load and environment
Conductor: Flexible copper conductor
Insulation / jacket: Heavy-duty rubber or CPE pump feeder sheath

Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

Industrial pumps
Outdoor pump feeders
Dewatering systems
Water treatment plants

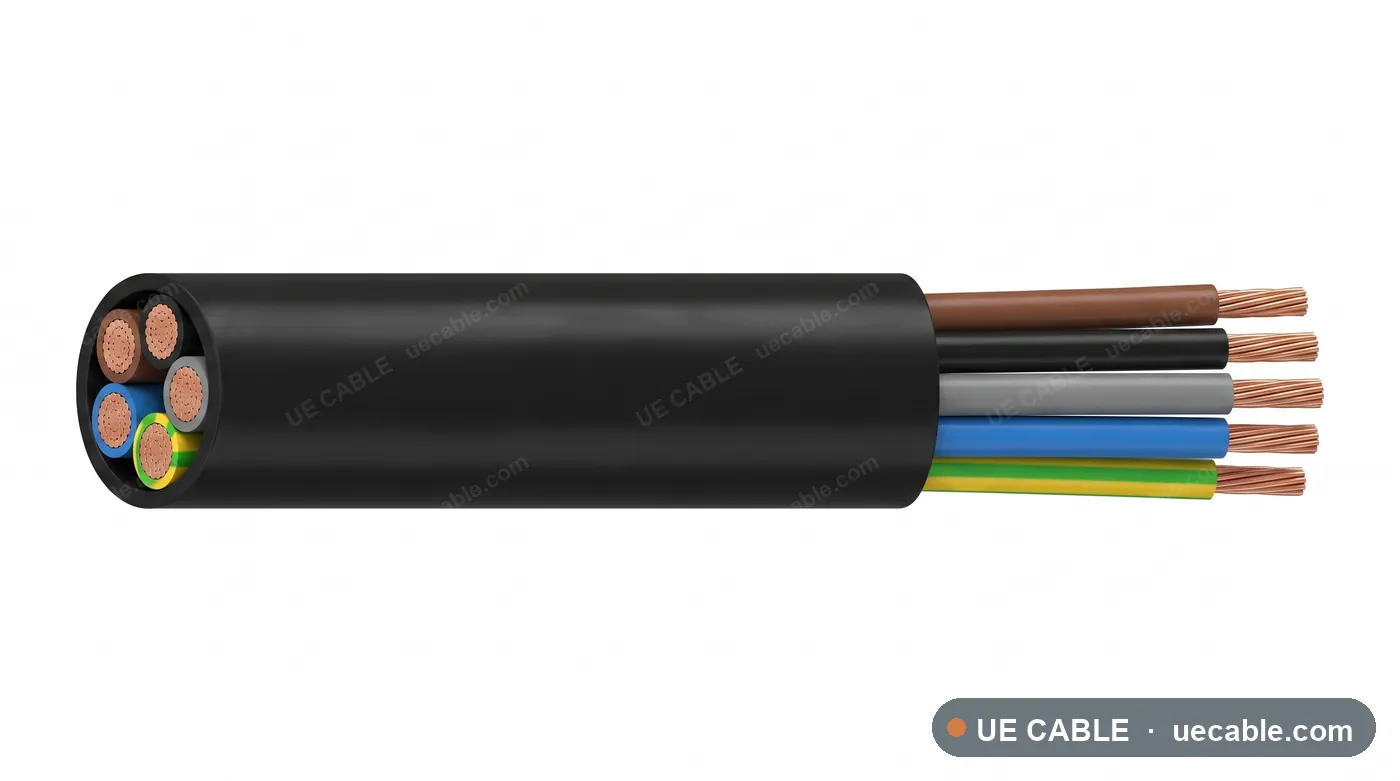

Cable Construction

Flexible copper conductor
EPR rubber power-core insulation
Round multicore heavy-duty pump feeder
Heavy-duty rubber or CPE pump feeder sheath

Specifications

Select a cable size.

Each row below is a complete specification sheet — 24 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

Heavy-duty pump feeder references

Each row is an exact submersible pump cable cable specification sheet. Shared pump duty, voltage, insulation, sheath and water/fluid duty are listed above.

Pump dutyHeavy-duty pump feeder and wet-route power
Water / fluid dutyIndustrial pump, outdoor, wet-route and mechanical-stress duty
Cable shapeRound multicore heavy-duty pump feeder

Cable reference	Core design	Conductor size	Max DC resistance at 20 °C	Dimension guide
Heavy-duty rubber pump feeder cable 0.6/1 kV Heavy-duty pump feeder and wet-route power 3G 6 mm²	3G	6 mm²	3.1 Ω/km	19.7 mm
Heavy-duty rubber pump feeder cable 0.6/1 kV Heavy-duty pump feeder and wet-route power 3G 10 mm²	3G	10 mm²	1.83 Ω/km	21.1 mm
Heavy-duty rubber pump feeder cable 0.6/1 kV Heavy-duty pump feeder and wet-route power 3G 16 mm²	3G	16 mm²	1.15 Ω/km	22.8 mm
Heavy-duty rubber pump feeder cable 0.6/1 kV Heavy-duty pump feeder and wet-route power 3G 25 mm²	3G	25 mm²	0.727 Ω/km	24.8 mm
Heavy-duty rubber pump feeder cable 0.6/1 kV Heavy-duty pump feeder and wet-route power 3G 35 mm²	3G	35 mm²	0.524 Ω/km	26.6 mm
Heavy-duty rubber pump feeder cable 0.6/1 kV Heavy-duty pump feeder and wet-route power 3G 50 mm²	3G	50 mm²	0.387 Ω/km	29.0 mm
Heavy-duty rubber pump feeder cable 0.6/1 kV Heavy-duty pump feeder and wet-route power 3G 70 mm²	3G	70 mm²	0.268 Ω/km	31.5 mm
Heavy-duty rubber pump feeder cable 0.6/1 kV Heavy-duty pump feeder and wet-route power 3G 95 mm²	3G	95 mm²	0.193 Ω/km	34.3 mm
Heavy-duty rubber pump feeder cable 0.6/1 kV Heavy-duty pump feeder and wet-route power 4G 6 mm²	4G	6 mm²	3.1 Ω/km	20.3 mm
Heavy-duty rubber pump feeder cable 0.6/1 kV Heavy-duty pump feeder and wet-route power 4G 10 mm²	4G	10 mm²	1.83 Ω/km	21.7 mm
Heavy-duty rubber pump feeder cable 0.6/1 kV Heavy-duty pump feeder and wet-route power 4G 16 mm²	4G	16 mm²	1.15 Ω/km	23.4 mm
Heavy-duty rubber pump feeder cable 0.6/1 kV Heavy-duty pump feeder and wet-route power 4G 25 mm²	4G	25 mm²	0.727 Ω/km	25.4 mm
Heavy-duty rubber pump feeder cable 0.6/1 kV Heavy-duty pump feeder and wet-route power 4G 35 mm²	4G	35 mm²	0.524 Ω/km	27.2 mm
Heavy-duty rubber pump feeder cable 0.6/1 kV Heavy-duty pump feeder and wet-route power 4G 50 mm²	4G	50 mm²	0.387 Ω/km	29.5 mm
Heavy-duty rubber pump feeder cable 0.6/1 kV Heavy-duty pump feeder and wet-route power 4G 70 mm²	4G	70 mm²	0.268 Ω/km	32.1 mm
Heavy-duty rubber pump feeder cable 0.6/1 kV Heavy-duty pump feeder and wet-route power 4G 95 mm²	4G	95 mm²	0.193 Ω/km	34.9 mm
Heavy-duty rubber pump feeder cable 0.6/1 kV Heavy-duty pump feeder and wet-route power 5G 6 mm²	5G	6 mm²	3.1 Ω/km	20.8 mm
Heavy-duty rubber pump feeder cable 0.6/1 kV Heavy-duty pump feeder and wet-route power 5G 10 mm²	5G	10 mm²	1.83 Ω/km	22.2 mm
Heavy-duty rubber pump feeder cable 0.6/1 kV Heavy-duty pump feeder and wet-route power 5G 16 mm²	5G	16 mm²	1.15 Ω/km	23.9 mm
Heavy-duty rubber pump feeder cable 0.6/1 kV Heavy-duty pump feeder and wet-route power 5G 25 mm²	5G	25 mm²	0.727 Ω/km	25.9 mm
Heavy-duty rubber pump feeder cable 0.6/1 kV Heavy-duty pump feeder and wet-route power 5G 35 mm²	5G	35 mm²	0.524 Ω/km	27.8 mm
Heavy-duty rubber pump feeder cable 0.6/1 kV Heavy-duty pump feeder and wet-route power 5G 50 mm²	5G	50 mm²	0.387 Ω/km	30.1 mm
Heavy-duty rubber pump feeder cable 0.6/1 kV Heavy-duty pump feeder and wet-route power 5G 70 mm²	5G	70 mm²	0.268 Ω/km	32.7 mm
Heavy-duty rubber pump feeder cable 0.6/1 kV Heavy-duty pump feeder and wet-route power 5G 95 mm²	5G	95 mm²	0.193 Ω/km	35.4 mm

Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
