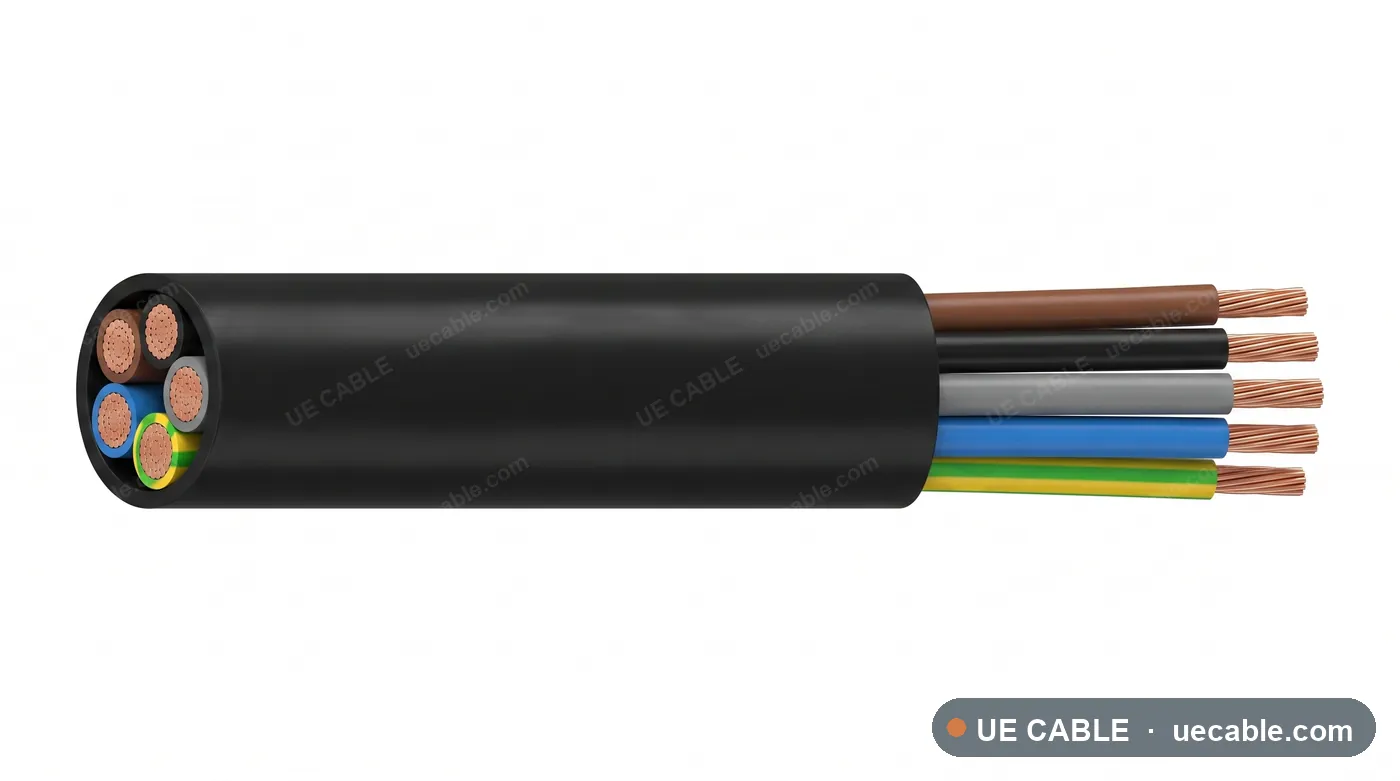

Deep Well Borehole Pump Cable cable construction reference

Deep-well pump cable

Deep Well Borehole Pump Cable

Deep Well Borehole Pump Cable is a submersible pump cable construction for deep wells, boreholes, irrigation pumps, using flexible copper conductor, water-resistant epr or pvc insulation and abrasion and water-resistant borehole sheath.

Standard
IEC 60245
Voltage class
450/750 V
Temperature class
Wet-route service by pump and well condition
Conductor
Flexible copper conductor
Insulation / jacket
Abrasion and water-resistant borehole sheath
Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

Deep Well Borehole Pump Cable is a submersible pump cable construction for deep wells, boreholes, irrigation pumps, using flexible copper conductor, water-resistant epr or pvc insulation and abrasion and water-resistant borehole sheath.

  • Deep wells
  • Boreholes
  • Irrigation pumps
  • Submersible pump motors

Cable Construction

  • Flexible copper conductor
  • Water-resistant EPR or PVC insulation
  • Flat or round borehole pump cable
  • Abrasion and water-resistant borehole sheath

Specifications

Select a cable size.

Each row below is a complete specification sheet — 21 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

Deep-well flat pump cable references

Each row is an exact submersible pump cable cable specification sheet. Shared pump duty, voltage, insulation, sheath and water/fluid duty are listed above.

  • Pump dutyDeep-well pump motor supply
  • Water / fluid dutyBorehole and long vertical water-well route
  • Cable shapeFlat or round borehole pump cable
Cable referenceCore designConductor sizeMax DC resistance at 20 °CDimension guide
Deep well borehole pump cable 450/750 V Deep-well pump motor supply 3 core flat 1.5 mm²3 core flat1.5 mm²12.7 Ω/km25 x 8.6 mm
Deep well borehole pump cable 450/750 V Deep-well pump motor supply 3 core flat 2.5 mm²3 core flat2.5 mm²7.6 Ω/km27 x 9.2 mm
Deep well borehole pump cable 450/750 V Deep-well pump motor supply 3 core flat 4 mm²3 core flat4 mm²4.7 Ω/km30 x 9.8 mm
Deep well borehole pump cable 450/750 V Deep-well pump motor supply 3 core flat 6 mm²3 core flat6 mm²3.1 Ω/km32 x 10.5 mm
Deep well borehole pump cable 450/750 V Deep-well pump motor supply 3 core flat 10 mm²3 core flat10 mm²1.83 Ω/km36 x 11.5 mm
Deep well borehole pump cable 450/750 V Deep-well pump motor supply 3 core flat 16 mm²3 core flat16 mm²1.15 Ω/km41 x 12.8 mm
Deep well borehole pump cable 450/750 V Deep-well pump motor supply 3 core flat 25 mm²3 core flat25 mm²0.727 Ω/km47 x 14.3 mm
Deep well borehole pump cable 450/750 V Deep-well pump motor supply 3 core + earth flat 1.5 mm²3 core + earth flat1.5 mm²12.7 Ω/km25 x 8.6 mm
Deep well borehole pump cable 450/750 V Deep-well pump motor supply 3 core + earth flat 2.5 mm²3 core + earth flat2.5 mm²7.6 Ω/km27 x 9.2 mm
Deep well borehole pump cable 450/750 V Deep-well pump motor supply 3 core + earth flat 4 mm²3 core + earth flat4 mm²4.7 Ω/km30 x 9.8 mm
Deep well borehole pump cable 450/750 V Deep-well pump motor supply 3 core + earth flat 6 mm²3 core + earth flat6 mm²3.1 Ω/km32 x 10.5 mm
Deep well borehole pump cable 450/750 V Deep-well pump motor supply 3 core + earth flat 10 mm²3 core + earth flat10 mm²1.83 Ω/km36 x 11.5 mm
Deep well borehole pump cable 450/750 V Deep-well pump motor supply 3 core + earth flat 16 mm²3 core + earth flat16 mm²1.15 Ω/km41 x 12.8 mm
Deep well borehole pump cable 450/750 V Deep-well pump motor supply 3 core + earth flat 25 mm²3 core + earth flat25 mm²0.727 Ω/km47 x 14.3 mm
Deep well borehole pump cable 450/750 V Deep-well pump motor supply 4 core flat 1.5 mm²4 core flat1.5 mm²12.7 Ω/km33 x 8.6 mm
Deep well borehole pump cable 450/750 V Deep-well pump motor supply 4 core flat 2.5 mm²4 core flat2.5 mm²7.6 Ω/km36 x 9.2 mm
Deep well borehole pump cable 450/750 V Deep-well pump motor supply 4 core flat 4 mm²4 core flat4 mm²4.7 Ω/km39 x 9.8 mm
Deep well borehole pump cable 450/750 V Deep-well pump motor supply 4 core flat 6 mm²4 core flat6 mm²3.1 Ω/km42 x 10.5 mm
Deep well borehole pump cable 450/750 V Deep-well pump motor supply 4 core flat 10 mm²4 core flat10 mm²1.83 Ω/km48 x 11.5 mm
Deep well borehole pump cable 450/750 V Deep-well pump motor supply 4 core flat 16 mm²4 core flat16 mm²1.15 Ω/km54 x 12.8 mm
Deep well borehole pump cable 450/750 V Deep-well pump motor supply 4 core flat 25 mm²4 core flat25 mm²0.727 Ω/km62 x 14.3 mm
Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.

Request Quote →
