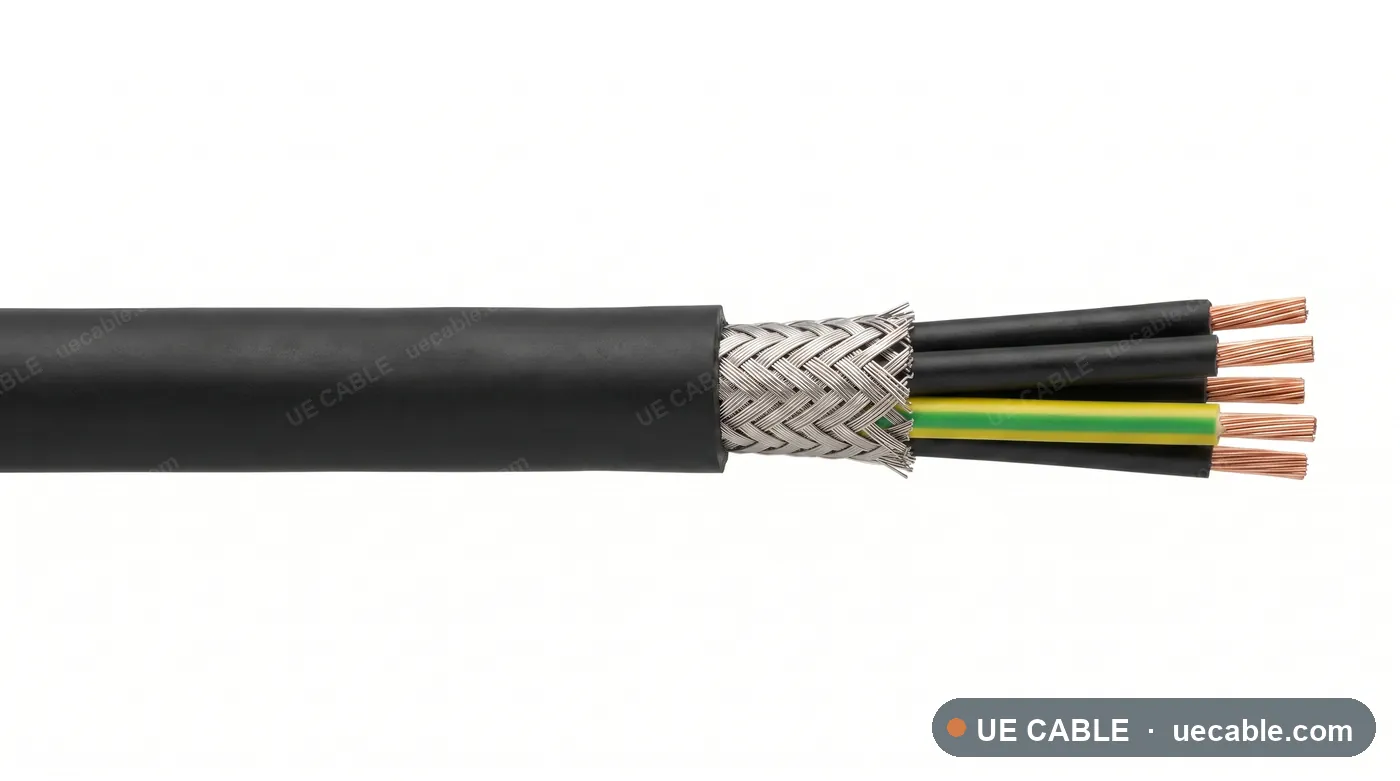

Servo Brake And Temperature Cable cable construction reference

Brake and auxiliary servo cable

Servo Brake And Temperature Cable

Servo Brake And Temperature Cable is a servo motor cable construction for servo brake circuits, temperature sensors, auxiliary motor control, using fine-stranded flexible copper conductor, high-flex pvc or tpe auxiliary-core insulation, optional overall tinned copper braid screen and pur or pvc flexible jacket.

Standard
UL 758
Voltage class
300/500 V auxiliary
Conductor
Fine-stranded flexible copper conductor
Insulation / jacket
PUR or PVC flexible jacket
Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

Servo Brake And Temperature Cable is a servo motor cable construction for servo brake circuits, temperature sensors, auxiliary motor control, using fine-stranded flexible copper conductor, high-flex pvc or tpe auxiliary-core insulation, optional overall tinned copper braid screen and pur or pvc flexible jacket.

  • Servo brake circuits
  • Temperature sensors
  • Auxiliary motor control
  • Machine wiring

Cable Construction

  • Fine-stranded flexible copper conductor
  • High-flex PVC or TPE auxiliary-core insulation
  • Power, brake, feedback or signal elements according to drive function
  • Optional overall tinned copper braid screen
  • PUR or PVC flexible jacket

Specifications

Select a cable size.

Each row below is a complete specification sheet — 12 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

Brake and auxiliary circuit specification references

Each row is an exact servo cable specification reference. Shared voltage, insulation, shielding, sheath and motion duty are listed above.

  • Service classBrake and auxiliary circuit
  • Drive functionBrake release, temperature and auxiliary control
  • ShieldingOptional overall tinned copper braid screen
Cable referenceCore / pair designPower / signal sizeMax DC resistance at 20 °COD guide
Servo brake and temperature cable 300/500 V auxiliary Brake release, temperature and auxiliary control 2 brake cores 0.75 mm²2 brake cores0.75 mm²24.710.8 mm
Servo brake and temperature cable 300/500 V auxiliary Brake release, temperature and auxiliary control 2 brake cores 1.0 mm²2 brake cores1.0 mm²18.511.1 mm
Servo brake and temperature cable 300/500 V auxiliary Brake release, temperature and auxiliary control 2 brake cores 1.5 mm²2 brake cores1.5 mm²12.711.6 mm
Servo brake and temperature cable 300/500 V auxiliary Brake release, temperature and auxiliary control 2 brake cores 2.5 mm²2 brake cores2.5 mm²7.612.3 mm
Servo brake and temperature cable 300/500 V auxiliary Brake release, temperature and auxiliary control 4 brake cores 0.75 mm²4 brake cores0.75 mm²24.711.7 mm
Servo brake and temperature cable 300/500 V auxiliary Brake release, temperature and auxiliary control 4 brake cores 1.0 mm²4 brake cores1.0 mm²18.512.0 mm
Servo brake and temperature cable 300/500 V auxiliary Brake release, temperature and auxiliary control 4 brake cores 1.5 mm²4 brake cores1.5 mm²12.712.5 mm
Servo brake and temperature cable 300/500 V auxiliary Brake release, temperature and auxiliary control 4 brake cores 2.5 mm²4 brake cores2.5 mm²7.613.2 mm
Servo brake and temperature cable 300/500 V auxiliary Brake release, temperature and auxiliary control 2 brake cores + temperature pair 0.75 mm²2 brake cores + temperature pair0.75 mm²24.710.8 mm
Servo brake and temperature cable 300/500 V auxiliary Brake release, temperature and auxiliary control 2 brake cores + temperature pair 1.0 mm²2 brake cores + temperature pair1.0 mm²18.511.1 mm
Servo brake and temperature cable 300/500 V auxiliary Brake release, temperature and auxiliary control 2 brake cores + temperature pair 1.5 mm²2 brake cores + temperature pair1.5 mm²12.711.6 mm
Servo brake and temperature cable 300/500 V auxiliary Brake release, temperature and auxiliary control 2 brake cores + temperature pair 2.5 mm²2 brake cores + temperature pair2.5 mm²7.612.3 mm
Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.

Request Quote →
