LSZH EMC screened servo cable

ROZ1-K LSZH EMC Servo Cable

ROZ1-K LSZH EMC Servo Cable is a servo motor cable construction for servo drives, drive cabinets, machine tools, using fine-stranded flexible copper conductor, xlpe low-capacitance power-core insulation, al/pet tape screen plus tinned copper wire braid screen and lszh uv and oil resistant sheath.

Standard: IEC 60502-1
Voltage class: 0.6/1 kV
Conductor: Fine-stranded flexible copper conductor
Insulation / jacket: LSZH UV and oil resistant sheath

Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

Servo drives
Drive cabinets
Machine tools
Oil and gas automation

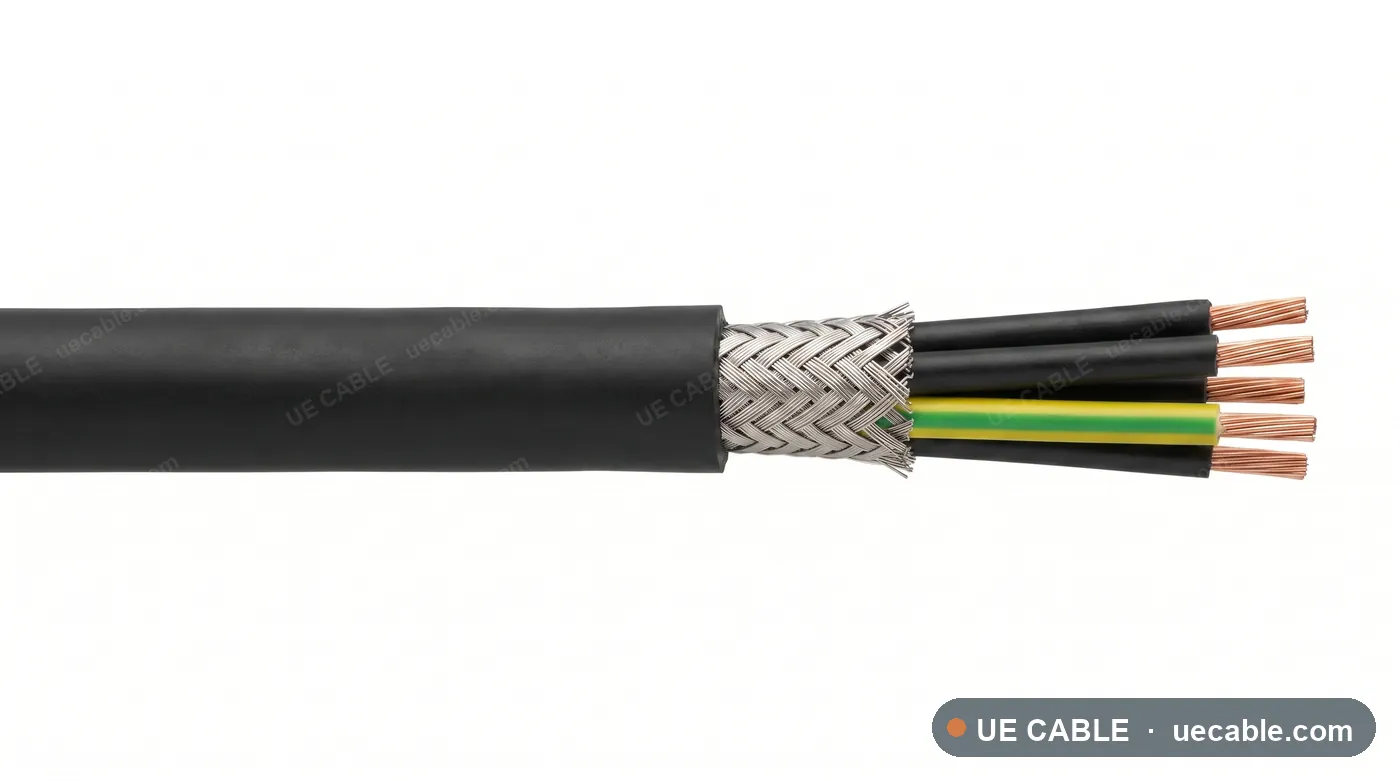

Cable Construction

Fine-stranded flexible copper conductor
XLPE low-capacitance power-core insulation
Power, brake, feedback or signal elements according to drive function
Al/PET tape screen plus tinned copper wire braid screen
LSZH UV and oil resistant sheath

Specifications

Select a cable size.

Each row below is a complete specification sheet — 21 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

Fixed and flexible EMC servo specification references

Each row is an exact servo cable specification reference. Shared voltage, insulation, shielding, sheath and motion duty are listed above.

Service classFixed and flexible EMC servo
Drive functionServo drive and frequency-drive motor power
ShieldingAl/PET tape screen plus tinned copper wire braid screen

Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.

Request Quote →

Cable reference	Core / pair design	Power / signal size	Max DC resistance at 20 °C	OD guide
ROZ1-K LSZH EMC servo cable 0.6/1 kV Servo drive and frequency-drive motor power 4G power cores 1.5 mm²	4G power cores	1.5 mm²	12.7	14.9 mm
ROZ1-K LSZH EMC servo cable 0.6/1 kV Servo drive and frequency-drive motor power 4G power cores 2.5 mm²	4G power cores	2.5 mm²	7.6	15.6 mm
ROZ1-K LSZH EMC servo cable 0.6/1 kV Servo drive and frequency-drive motor power 4G power cores 4 mm²	4G power cores	4 mm²	4.7	16.5 mm
ROZ1-K LSZH EMC servo cable 0.6/1 kV Servo drive and frequency-drive motor power 4G power cores 6 mm²	4G power cores	6 mm²	3.1	17.4 mm
ROZ1-K LSZH EMC servo cable 0.6/1 kV Servo drive and frequency-drive motor power 4G power cores 10 mm²	4G power cores	10 mm²	1.83	18.9 mm
ROZ1-K LSZH EMC servo cable 0.6/1 kV Servo drive and frequency-drive motor power 4G power cores 16 mm²	4G power cores	16 mm²	1.15	20.7 mm
ROZ1-K LSZH EMC servo cable 0.6/1 kV Servo drive and frequency-drive motor power 4G power cores 25 mm²	4G power cores	25 mm²	0.727	22.8 mm
ROZ1-K LSZH EMC servo cable 0.6/1 kV Servo drive and frequency-drive motor power 4G power cores + 2 x 1.5 brake cores 1.5 mm²	4G power cores + 2 x 1.5 brake cores	1.5 mm²	12.7	15.2 mm
ROZ1-K LSZH EMC servo cable 0.6/1 kV Servo drive and frequency-drive motor power 4G power cores + 2 x 1.5 brake cores 2.5 mm²	4G power cores + 2 x 1.5 brake cores	2.5 mm²	7.6	16.0 mm
ROZ1-K LSZH EMC servo cable 0.6/1 kV Servo drive and frequency-drive motor power 4G power cores + 2 x 1.5 brake cores 4 mm²	4G power cores + 2 x 1.5 brake cores	4 mm²	4.7	16.9 mm
ROZ1-K LSZH EMC servo cable 0.6/1 kV Servo drive and frequency-drive motor power 4G power cores + 2 x 1.5 brake cores 6 mm²	4G power cores + 2 x 1.5 brake cores	6 mm²	3.1	17.8 mm
ROZ1-K LSZH EMC servo cable 0.6/1 kV Servo drive and frequency-drive motor power 4G power cores + 2 x 1.5 brake cores 10 mm²	4G power cores + 2 x 1.5 brake cores	10 mm²	1.83	19.3 mm
ROZ1-K LSZH EMC servo cable 0.6/1 kV Servo drive and frequency-drive motor power 4G power cores + 2 x 1.5 brake cores 16 mm²	4G power cores + 2 x 1.5 brake cores	16 mm²	1.15	21.1 mm
ROZ1-K LSZH EMC servo cable 0.6/1 kV Servo drive and frequency-drive motor power 4G power cores + 2 x 1.5 brake cores 25 mm²	4G power cores + 2 x 1.5 brake cores	25 mm²	0.727	23.2 mm
ROZ1-K LSZH EMC servo cable 0.6/1 kV Servo drive and frequency-drive motor power 4G power cores + 2 x 1.5 brake cores + 2 x 0.75 signal cores 1.5 mm²	4G power cores + 2 x 1.5 brake cores + 2 x 0.75 signal cores	1.5 mm²	12.7	25.3 mm
ROZ1-K LSZH EMC servo cable 0.6/1 kV Servo drive and frequency-drive motor power 4G power cores + 2 x 1.5 brake cores + 2 x 0.75 signal cores 2.5 mm²	4G power cores + 2 x 1.5 brake cores + 2 x 0.75 signal cores	2.5 mm²	7.6	26.0 mm
ROZ1-K LSZH EMC servo cable 0.6/1 kV Servo drive and frequency-drive motor power 4G power cores + 2 x 1.5 brake cores + 2 x 0.75 signal cores 4 mm²	4G power cores + 2 x 1.5 brake cores + 2 x 0.75 signal cores	4 mm²	4.7	26.9 mm
ROZ1-K LSZH EMC servo cable 0.6/1 kV Servo drive and frequency-drive motor power 4G power cores + 2 x 1.5 brake cores + 2 x 0.75 signal cores 6 mm²	4G power cores + 2 x 1.5 brake cores + 2 x 0.75 signal cores	6 mm²	3.1	27.9 mm
ROZ1-K LSZH EMC servo cable 0.6/1 kV Servo drive and frequency-drive motor power 4G power cores + 2 x 1.5 brake cores + 2 x 0.75 signal cores 10 mm²	4G power cores + 2 x 1.5 brake cores + 2 x 0.75 signal cores	10 mm²	1.83	29.4 mm
ROZ1-K LSZH EMC servo cable 0.6/1 kV Servo drive and frequency-drive motor power 4G power cores + 2 x 1.5 brake cores + 2 x 0.75 signal cores 16 mm²	4G power cores + 2 x 1.5 brake cores + 2 x 0.75 signal cores	16 mm²	1.15	31.1 mm
ROZ1-K LSZH EMC servo cable 0.6/1 kV Servo drive and frequency-drive motor power 4G power cores + 2 x 1.5 brake cores + 2 x 0.75 signal cores 25 mm²	4G power cores + 2 x 1.5 brake cores + 2 x 0.75 signal cores	25 mm²	0.727	33.2 mm
