Electronic multiconductor cable

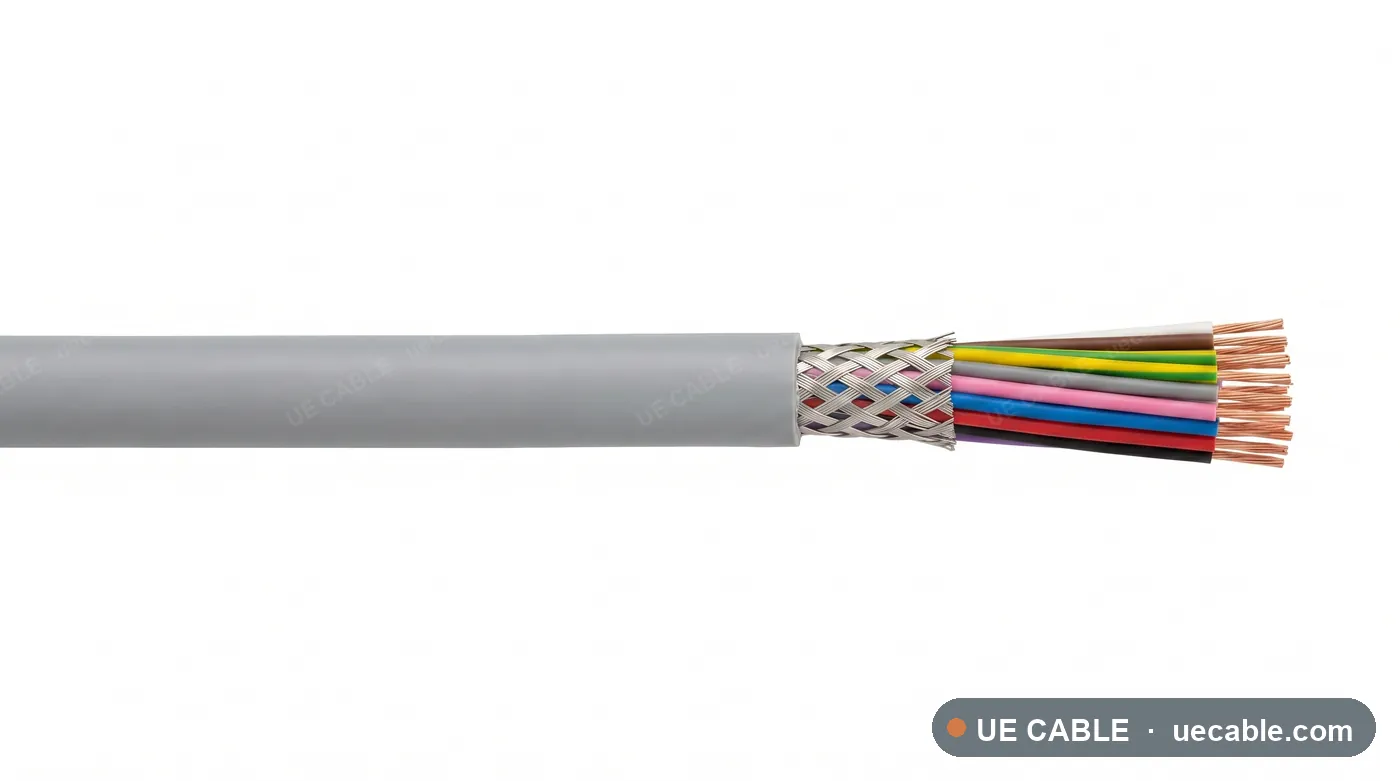

UL 2464 Electronic Multiconductor Cable is a low-voltage signal cable reference for electronic equipment, control panels, computer peripherals with size-specific electrical and construction data listed below.
Cable Type Data
UL 2464 Electronic Multiconductor Cable is a low-voltage signal cable reference for electronic equipment, control panels, computer peripherals with size-specific electrical and construction data listed below.
Specifications
Each row below is a complete specification sheet — 16 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.
| Cable reference | Cable design | Conductor size | Conductor construction | Max DC resistance at 20 °C | OD guide |
|---|---|---|---|---|---|
| UL 2464 Electronic Cable 2C 24 AWG | 2 core | 24 AWG / 0.20 mm² | 7/32 AWG | 85.0 Ω/km | 3.7 mm |
| UL 2464 Electronic Cable 2C 22 AWG | 2 core | 22 AWG / 0.33 mm² | 7/30 AWG | 53.5 Ω/km | 4.1 mm |
| UL 2464 Electronic Cable 3C 24 AWG | 3 core | 24 AWG / 0.20 mm² | 7/32 AWG | 85.0 Ω/km | 4.3 mm |
| UL 2464 Electronic Cable 3C 22 AWG | 3 core | 22 AWG / 0.33 mm² | 7/30 AWG | 53.5 Ω/km | 4.7 mm |
| UL 2464 Electronic Cable 4C 24 AWG | 4 core | 24 AWG / 0.20 mm² | 7/32 AWG | 85.0 Ω/km | 4.8 mm |
| UL 2464 Electronic Cable 4C 22 AWG | 4 core | 22 AWG / 0.33 mm² | 7/30 AWG | 53.5 Ω/km | 5.3 mm |
| UL 2464 Electronic Cable 6C 24 AWG | 6 core | 24 AWG / 0.20 mm² | 7/32 AWG | 85.0 Ω/km | 5.6 mm |
| UL 2464 Electronic Cable 6C 22 AWG | 6 core | 22 AWG / 0.33 mm² | 7/30 AWG | 53.5 Ω/km | 6.2 mm |
| UL 2464 Electronic Cable 8C 24 AWG | 8 core | 24 AWG / 0.20 mm² | 7/32 AWG | 85.0 Ω/km | 6.3 mm |
| UL 2464 Electronic Cable 8C 22 AWG | 8 core | 22 AWG / 0.33 mm² | 7/30 AWG | 53.5 Ω/km | 7.0 mm |
| UL 2464 Electronic Cable 12C 24 AWG | 12 core | 24 AWG / 0.20 mm² | 7/32 AWG | 85.0 Ω/km | 7.4 mm |
| UL 2464 Electronic Cable 12C 22 AWG | 12 core | 22 AWG / 0.33 mm² | 7/30 AWG | 53.5 Ω/km | 8.3 mm |
| UL 2464 Electronic Cable 20C 24 AWG | 20 core | 24 AWG / 0.20 mm² | 7/32 AWG | 85.0 Ω/km | 9.2 mm |
| UL 2464 Electronic Cable 20C 22 AWG | 20 core | 22 AWG / 0.33 mm² | 7/30 AWG | 53.5 Ω/km | 10.4 mm |
| UL 2464 Electronic Cable 30C 24 AWG | 30 core | 24 AWG / 0.20 mm² | 7/32 AWG | 85.0 Ω/km | 11.1 mm |
| UL 2464 Electronic Cable 30C 22 AWG | 30 core | 22 AWG / 0.33 mm² | 7/30 AWG | 53.5 Ω/km | 12.5 mm |
Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
