EN 50288-7 RE-2X(St)Y Multicore Instrumentation Cable

EN 50288-7 RE-2X(St)Y Multicore Instrumentation Cable is an instrumentation cable construction for multi-core signal and control circuits where pair twisting is not required, combining XLPE insulation, PVC sheath, overall aluminium/polyester tape screen with tinned copper drain wire and a protected installation profile.

Standard: EN 50288-7
Voltage class: 300/500 V or 500 V application reference
Conductor: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm² and customer-specified sizes
Insulation / jacket: PVC
Cross-section range: 2 core to 48 core available range

Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

Process control signal transmission
Petrochemical and refinery instrumentation
Power station monitoring and control
DCS, PLC, marshalling cabinet and junction box wiring
multi-core signal and control circuits where pair twisting is not required

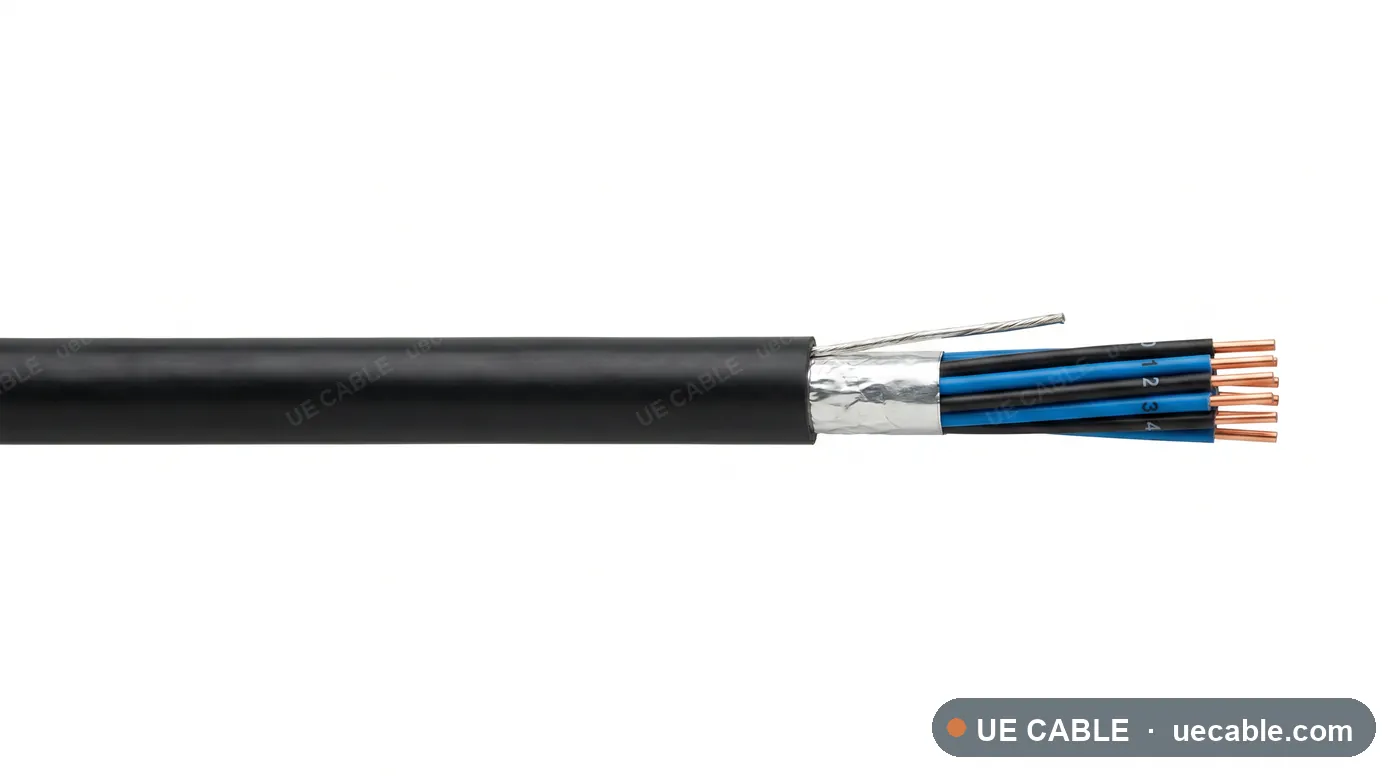

Cable Construction

Bare or tinned annealed copper conductor, Class 1 (solid), Class 2 (stranded) or Class 5 (flexible) as specified
XLPE insulated cores with identification to cable schedule
Cabled elements laid up with suitable fillers
Overall aluminium/polyester tape screen with tinned copper drain wire
Separator or bedding tape as required by construction
standard
PVC outer sheath with required cable marking

Specifications

Select a cable size.

Each row below is a complete specification sheet — 40 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

RE-2X(St)Y Multicore specification references

Each row is an exact instrumentation cable cable specification sheet. Confirm sheath colour, intrinsic-safety marking, drum length and test documents before quotation.

Conductor classClass 1 (solid) / 2 (stranded) / 5 (flexible)
Mutual capacitanceBy core layup

Cable reference	Pair / triple / core layout	Conductor size	Max DC resistance at 20 °C	L/R ratio	OD guide	Weight guide
UEC-EN50288-7-XLPE-PVC-OS-MULTICORE-2CORE-0P5MM2 2 core 0.5 mm²	2 core	0.5 mm²	39.39 Ω/km	25 uH/ohm	6.2 mm	70 kg/km
UEC-EN50288-7-XLPE-PVC-OS-MULTICORE-2CORE-0P75MM2 2 core 0.75 mm²	2 core	0.75 mm²	26.8 Ω/km	25 uH/ohm	6.4 mm	74 kg/km
UEC-EN50288-7-XLPE-PVC-OS-MULTICORE-2CORE-1P0MM2 2 core 1.0 mm²	2 core	1.0 mm²	19.7 Ω/km	40 uH/ohm	6.5 mm	79 kg/km
UEC-EN50288-7-XLPE-PVC-OS-MULTICORE-2CORE-1P5MM2 2 core 1.5 mm²	2 core	1.5 mm²	13.43 Ω/km	40 uH/ohm	6.7 mm	88 kg/km
UEC-EN50288-7-XLPE-PVC-OS-MULTICORE-3CORE-0P5MM2 3 core 0.5 mm²	3 core	0.5 mm²	39.39 Ω/km	25 uH/ohm	6.6 mm	77 kg/km
UEC-EN50288-7-XLPE-PVC-OS-MULTICORE-3CORE-0P75MM2 3 core 0.75 mm²	3 core	0.75 mm²	26.8 Ω/km	25 uH/ohm	6.7 mm	84 kg/km
UEC-EN50288-7-XLPE-PVC-OS-MULTICORE-3CORE-1P0MM2 3 core 1.0 mm²	3 core	1.0 mm²	19.7 Ω/km	40 uH/ohm	6.9 mm	90 kg/km
UEC-EN50288-7-XLPE-PVC-OS-MULTICORE-3CORE-1P5MM2 3 core 1.5 mm²	3 core	1.5 mm²	13.43 Ω/km	40 uH/ohm	7.1 mm	104 kg/km
UEC-EN50288-7-XLPE-PVC-OS-MULTICORE-4CORE-0P5MM2 4 core 0.5 mm²	4 core	0.5 mm²	39.39 Ω/km	25 uH/ohm	6.9 mm	84 kg/km
UEC-EN50288-7-XLPE-PVC-OS-MULTICORE-4CORE-0P75MM2 4 core 0.75 mm²	4 core	0.75 mm²	26.8 Ω/km	25 uH/ohm	7.0 mm	93 kg/km
UEC-EN50288-7-XLPE-PVC-OS-MULTICORE-4CORE-1P0MM2 4 core 1.0 mm²	4 core	1.0 mm²	19.7 Ω/km	40 uH/ohm	7.2 mm	102 kg/km
UEC-EN50288-7-XLPE-PVC-OS-MULTICORE-4CORE-1P5MM2 4 core 1.5 mm²	4 core	1.5 mm²	13.43 Ω/km	40 uH/ohm	7.4 mm	119 kg/km
UEC-EN50288-7-XLPE-PVC-OS-MULTICORE-6CORE-0P5MM2 6 core 0.5 mm²	6 core	0.5 mm²	39.39 Ω/km	25 uH/ohm	7.4 mm	98 kg/km
UEC-EN50288-7-XLPE-PVC-OS-MULTICORE-6CORE-0P75MM2 6 core 0.75 mm²	6 core	0.75 mm²	26.8 Ω/km	25 uH/ohm	7.5 mm	111 kg/km
UEC-EN50288-7-XLPE-PVC-OS-MULTICORE-6CORE-1P0MM2 6 core 1.0 mm²	6 core	1.0 mm²	19.7 Ω/km	40 uH/ohm	7.6 mm	124 kg/km
UEC-EN50288-7-XLPE-PVC-OS-MULTICORE-6CORE-1P5MM2 6 core 1.5 mm²	6 core	1.5 mm²	13.43 Ω/km	40 uH/ohm	7.9 mm	151 kg/km
UEC-EN50288-7-XLPE-PVC-OS-MULTICORE-8CORE-0P5MM2 8 core 0.5 mm²	8 core	0.5 mm²	39.39 Ω/km	25 uH/ohm	7.8 mm	112 kg/km
UEC-EN50288-7-XLPE-PVC-OS-MULTICORE-8CORE-0P75MM2 8 core 0.75 mm²	8 core	0.75 mm²	26.8 Ω/km	25 uH/ohm	7.9 mm	129 kg/km
UEC-EN50288-7-XLPE-PVC-OS-MULTICORE-8CORE-1P0MM2 8 core 1.0 mm²	8 core	1.0 mm²	19.7 Ω/km	40 uH/ohm	8.1 mm	147 kg/km
UEC-EN50288-7-XLPE-PVC-OS-MULTICORE-8CORE-1P5MM2 8 core 1.5 mm²	8 core	1.5 mm²	13.43 Ω/km	40 uH/ohm	8.3 mm	183 kg/km
UEC-EN50288-7-XLPE-PVC-OS-MULTICORE-12CORE-0P5MM2 12 core 0.5 mm²	12 core	0.5 mm²	39.39 Ω/km	25 uH/ohm	8.5 mm	139 kg/km
UEC-EN50288-7-XLPE-PVC-OS-MULTICORE-12CORE-0P75MM2 12 core 0.75 mm²	12 core	0.75 mm²	26.8 Ω/km	25 uH/ohm	8.6 mm	166 kg/km
UEC-EN50288-7-XLPE-PVC-OS-MULTICORE-12CORE-1P0MM2 12 core 1.0 mm²	12 core	1.0 mm²	19.7 Ω/km	40 uH/ohm	8.7 mm	193 kg/km
UEC-EN50288-7-XLPE-PVC-OS-MULTICORE-12CORE-1P5MM2 12 core 1.5 mm²	12 core	1.5 mm²	13.43 Ω/km	40 uH/ohm	9.0 mm	246 kg/km
UEC-EN50288-7-XLPE-PVC-OS-MULTICORE-18CORE-0P5MM2 18 core 0.5 mm²	18 core	0.5 mm²	39.39 Ω/km	25 uH/ohm	9.3 mm	181 kg/km
UEC-EN50288-7-XLPE-PVC-OS-MULTICORE-18CORE-0P75MM2 18 core 0.75 mm²	18 core	0.75 mm²	26.8 Ω/km	25 uH/ohm	9.5 mm	221 kg/km
UEC-EN50288-7-XLPE-PVC-OS-MULTICORE-18CORE-1P0MM2 18 core 1.0 mm²	18 core	1.0 mm²	19.7 Ω/km	40 uH/ohm	9.6 mm	261 kg/km
UEC-EN50288-7-XLPE-PVC-OS-MULTICORE-18CORE-1P5MM2 18 core 1.5 mm²	18 core	1.5 mm²	13.43 Ω/km	40 uH/ohm	9.8 mm	341 kg/km
UEC-EN50288-7-XLPE-PVC-OS-MULTICORE-24CORE-0P5MM2 24 core 0.5 mm²	24 core	0.5 mm²	39.39 Ω/km	25 uH/ohm	10.0 mm	223 kg/km
UEC-EN50288-7-XLPE-PVC-OS-MULTICORE-24CORE-0P75MM2 24 core 0.75 mm²	24 core	0.75 mm²	26.8 Ω/km	25 uH/ohm	10.2 mm	276 kg/km
UEC-EN50288-7-XLPE-PVC-OS-MULTICORE-24CORE-1P0MM2 24 core 1.0 mm²	24 core	1.0 mm²	19.7 Ω/km	40 uH/ohm	10.3 mm	330 kg/km
UEC-EN50288-7-XLPE-PVC-OS-MULTICORE-24CORE-1P5MM2 24 core 1.5 mm²	24 core	1.5 mm²	13.43 Ω/km	40 uH/ohm	10.5 mm	436 kg/km
UEC-EN50288-7-XLPE-PVC-OS-MULTICORE-36CORE-0P5MM2 36 core 0.5 mm²	36 core	0.5 mm²	39.39 Ω/km	25 uH/ohm	11.2 mm	306 kg/km
UEC-EN50288-7-XLPE-PVC-OS-MULTICORE-36CORE-0P75MM2 36 core 0.75 mm²	36 core	0.75 mm²	26.8 Ω/km	25 uH/ohm	11.4 mm	386 kg/km
UEC-EN50288-7-XLPE-PVC-OS-MULTICORE-36CORE-1P0MM2 36 core 1.0 mm²	36 core	1.0 mm²	19.7 Ω/km	40 uH/ohm	11.5 mm	466 kg/km
UEC-EN50288-7-XLPE-PVC-OS-MULTICORE-36CORE-1P5MM2 36 core 1.5 mm²	36 core	1.5 mm²	13.43 Ω/km	40 uH/ohm	11.7 mm	627 kg/km
UEC-EN50288-7-XLPE-PVC-OS-MULTICORE-48CORE-0P5MM2 48 core 0.5 mm²	48 core	0.5 mm²	39.39 Ω/km	25 uH/ohm	12.2 mm	390 kg/km
UEC-EN50288-7-XLPE-PVC-OS-MULTICORE-48CORE-0P75MM2 48 core 0.75 mm²	48 core	0.75 mm²	26.8 Ω/km	25 uH/ohm	12.4 mm	496 kg/km
UEC-EN50288-7-XLPE-PVC-OS-MULTICORE-48CORE-1P0MM2 48 core 1.0 mm²	48 core	1.0 mm²	19.7 Ω/km	40 uH/ohm	12.5 mm	603 kg/km
UEC-EN50288-7-XLPE-PVC-OS-MULTICORE-48CORE-1P5MM2 48 core 1.5 mm²	48 core	1.5 mm²	13.43 Ω/km	40 uH/ohm	12.7 mm	817 kg/km

Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
