Type TC tray power and control cable

UL 1277 Type TC Power Control Tray Cable

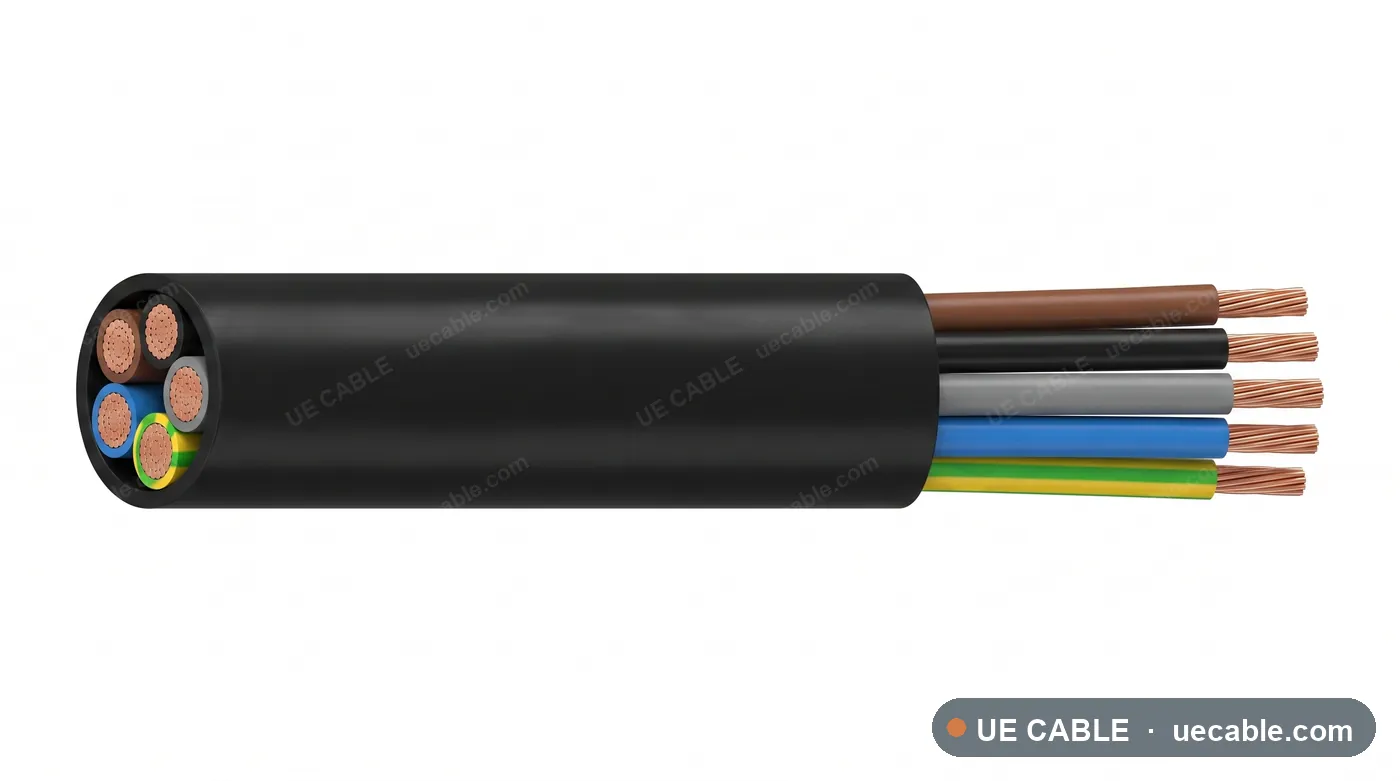

UL 1277 Type TC Power Control Tray Cable is a tray cable construction for power control circuits, industrial plants, manufacturing lines, using stranded bare copper conductor, pvc nylon insulation and oil and sunlight resistant pvc tray jacket.

Standard: UL 1277
Voltage class: 600 V
Temperature class: 90 °C dry / 75 °C wet guide
Conductor: Stranded bare copper conductor
Insulation / jacket: Oil and sunlight resistant PVC tray jacket

Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

Power control circuits
Industrial plants
Manufacturing lines
Control panels

Cable Construction

Stranded bare copper conductor
PVC nylon insulation
Oil and sunlight resistant PVC tray jacket

Specifications

Select a cable size.

Each row below is a complete specification sheet — 28 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

UL 1277 type TC power and control tray cable references

Each row is an exact tray cable cable specification sheet. Shared UL/CSA rating, jacket and installation data are listed above.

Tray cable dutyPower and control tray
Circuit typePower and control
Voltage class600 V

Cable reference	Core / pair design	Conductor size	Max DC resistance at 20 °C	OD guide
Type TC 600 V Power and control tray Power and control 3 core 18 AWG / 0.82 mm²	3 core	18 AWG / 0.82 mm²	22.6 Ω/km	12.2 mm
Type TC 600 V Power and control tray Power and control 3 core 16 AWG / 1.31 mm²	3 core	16 AWG / 1.31 mm²	14.1 Ω/km	12.6 mm
Type TC 600 V Power and control tray Power and control 3 core 14 AWG / 2.08 mm²	3 core	14 AWG / 2.08 mm²	8.89 Ω/km	13.1 mm
Type TC 600 V Power and control tray Power and control 3 core 12 AWG / 3.31 mm²	3 core	12 AWG / 3.31 mm²	5.59 Ω/km	13.7 mm
Type TC 600 V Power and control tray Power and control 4 core 18 AWG / 0.82 mm²	4 core	18 AWG / 0.82 mm²	22.6 Ω/km	12.6 mm
Type TC 600 V Power and control tray Power and control 4 core 16 AWG / 1.31 mm²	4 core	16 AWG / 1.31 mm²	14.1 Ω/km	13.0 mm
Type TC 600 V Power and control tray Power and control 4 core 14 AWG / 2.08 mm²	4 core	14 AWG / 2.08 mm²	8.89 Ω/km	13.6 mm
Type TC 600 V Power and control tray Power and control 4 core 12 AWG / 3.31 mm²	4 core	12 AWG / 3.31 mm²	5.59 Ω/km	14.2 mm
Type TC 600 V Power and control tray Power and control 5 core 18 AWG / 0.82 mm²	5 core	18 AWG / 0.82 mm²	22.6 Ω/km	13.1 mm
Type TC 600 V Power and control tray Power and control 5 core 16 AWG / 1.31 mm²	5 core	16 AWG / 1.31 mm²	14.1 Ω/km	13.5 mm
Type TC 600 V Power and control tray Power and control 5 core 14 AWG / 2.08 mm²	5 core	14 AWG / 2.08 mm²	8.89 Ω/km	14.0 mm
Type TC 600 V Power and control tray Power and control 5 core 12 AWG / 3.31 mm²	5 core	12 AWG / 3.31 mm²	5.59 Ω/km	14.6 mm
Type TC 600 V Power and control tray Power and control 7 core 18 AWG / 0.82 mm²	7 core	18 AWG / 0.82 mm²	22.6 Ω/km	13.8 mm
Type TC 600 V Power and control tray Power and control 7 core 16 AWG / 1.31 mm²	7 core	16 AWG / 1.31 mm²	14.1 Ω/km	14.2 mm
Type TC 600 V Power and control tray Power and control 7 core 14 AWG / 2.08 mm²	7 core	14 AWG / 2.08 mm²	8.89 Ω/km	14.7 mm
Type TC 600 V Power and control tray Power and control 7 core 12 AWG / 3.31 mm²	7 core	12 AWG / 3.31 mm²	5.59 Ω/km	15.3 mm
Type TC 600 V Power and control tray Power and control 12 core 18 AWG / 0.82 mm²	12 core	18 AWG / 0.82 mm²	22.6 Ω/km	15.2 mm
Type TC 600 V Power and control tray Power and control 12 core 16 AWG / 1.31 mm²	12 core	16 AWG / 1.31 mm²	14.1 Ω/km	15.6 mm
Type TC 600 V Power and control tray Power and control 12 core 14 AWG / 2.08 mm²	12 core	14 AWG / 2.08 mm²	8.89 Ω/km	16.1 mm
Type TC 600 V Power and control tray Power and control 12 core 12 AWG / 3.31 mm²	12 core	12 AWG / 3.31 mm²	5.59 Ω/km	16.8 mm
Type TC 600 V Power and control tray Power and control 18 core 18 AWG / 0.82 mm²	18 core	18 AWG / 0.82 mm²	22.6 Ω/km	16.6 mm
Type TC 600 V Power and control tray Power and control 18 core 16 AWG / 1.31 mm²	18 core	16 AWG / 1.31 mm²	14.1 Ω/km	17.0 mm
Type TC 600 V Power and control tray Power and control 18 core 14 AWG / 2.08 mm²	18 core	14 AWG / 2.08 mm²	8.89 Ω/km	17.5 mm
Type TC 600 V Power and control tray Power and control 18 core 12 AWG / 3.31 mm²	18 core	12 AWG / 3.31 mm²	5.59 Ω/km	18.1 mm
Type TC 600 V Power and control tray Power and control 25 core 18 AWG / 0.82 mm²	25 core	18 AWG / 0.82 mm²	22.6 Ω/km	17.9 mm
Type TC 600 V Power and control tray Power and control 25 core 16 AWG / 1.31 mm²	25 core	16 AWG / 1.31 mm²	14.1 Ω/km	18.3 mm
Type TC 600 V Power and control tray Power and control 25 core 14 AWG / 2.08 mm²	25 core	14 AWG / 2.08 mm²	8.89 Ω/km	18.8 mm
Type TC 600 V Power and control tray Power and control 25 core 12 AWG / 3.31 mm²	25 core	12 AWG / 3.31 mm²	5.59 Ω/km	19.4 mm

Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
