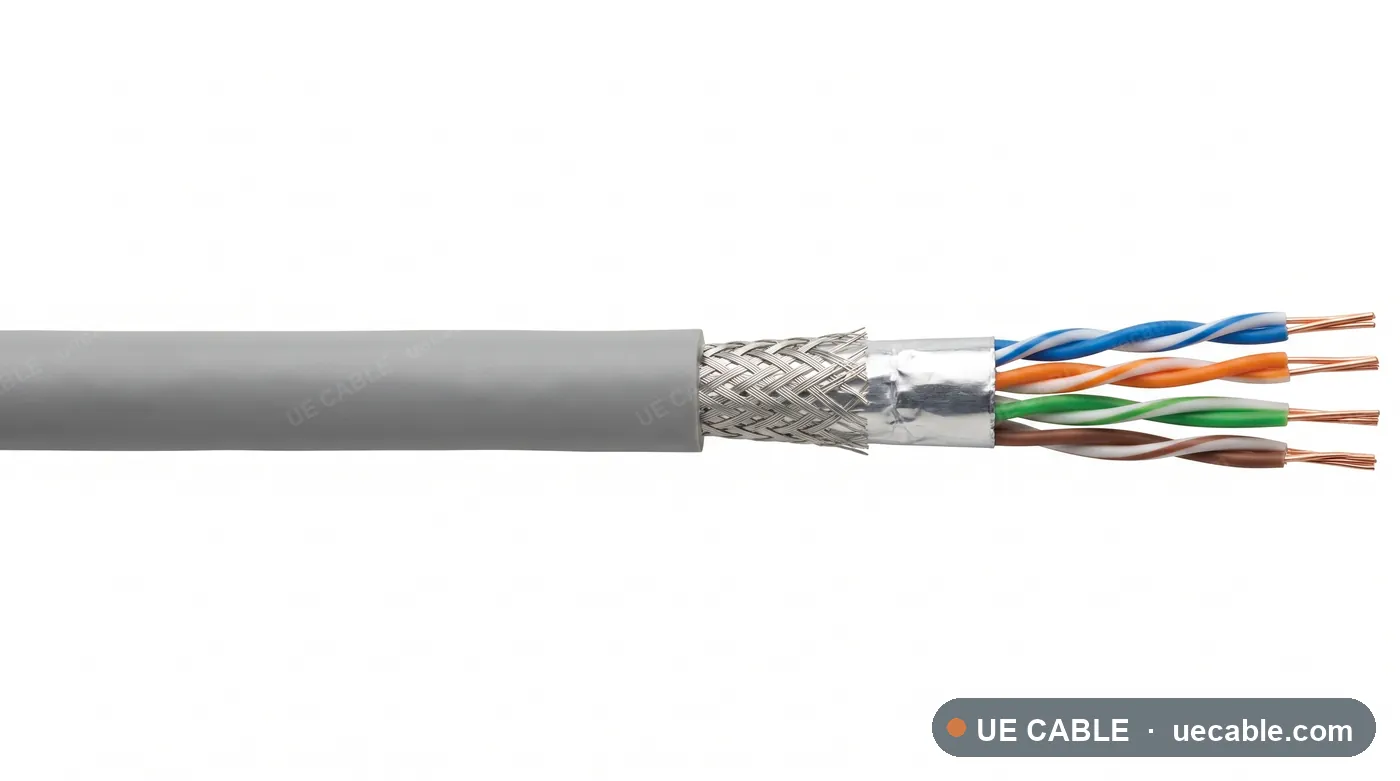

Type JX PVC Overall Screened Thermocouple Extension Cable cable construction reference

Screened Type J extension cable

Type JX PVC Overall Screened Thermocouple Extension Cable

Type JX PVC Overall Screened Thermocouple Extension Cable is a thermocouple cable reference for process temperature measurement, machine temperature circuits, industrial instrumentation, using JX thermocouple alloy conductors, flame retardant pvc thermocouple insulation and al/pet overall tape screen with tinned copper drain wire.

Standard
IEC 60584-3
Voltage class
250 V instrumentation circuit
Temperature class
-20 °C to +60 °C cable route
Conductor
1/0.5 mm solid / 24 AWG, 7/0.2 mm stranded / 24 AWG
Insulation / jacket
FR PVC outer sheath
Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

Type JX PVC Overall Screened Thermocouple Extension Cable is a thermocouple cable reference for process temperature measurement, machine temperature circuits, industrial instrumentation, using JX thermocouple alloy conductors, flame retardant pvc thermocouple insulation and al/pet overall tape screen with tinned copper drain wire.

  • Process temperature measurement
  • Machine temperature circuits
  • Industrial instrumentation
  • Control cabinets

Cable Construction

  • Thermocouple alloy positive and negative conductors
  • Extension grade for JX circuits
  • Flame retardant PVC thermocouple insulation
  • Al/PET overall tape screen with tinned copper drain wire
  • FR PVC outer sheath

Specifications

Select a cable size.

Each row below is a complete specification sheet — 10 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

Type JX PVC overall screened thermocouple extension cable specification references

Each row is an exact thermocouple cable cable specification sheet.

  • Thermocouple typeJX
  • Cable gradeExtension grade
  • Alloy combinationPositive iron / negative constantan
  • Insulation / sheathFlame retardant PVC thermocouple insulation
  • Screen / protectionAl/PET overall tape screen with tinned copper drain wire
  • Temperature range-20 °C to +60 °C cable route
  • Tolerance classIEC 60584-3 Class 1 / Class 2 option
Cable referencePair layoutConductor constructionOD guide
Type JX PVC overall screened thermocouple extension cable JX 1 pair 1/0.5 mm solid / 24 AWG1 pair1/0.5 mm solid / 24 AWG8.2 mm
Type JX PVC overall screened thermocouple extension cable JX 1 pair 7/0.2 mm stranded / 24 AWG1 pair7/0.2 mm stranded / 24 AWG8.4 mm
Type JX PVC overall screened thermocouple extension cable JX 2 pair 1/0.5 mm solid / 24 AWG2 pair1/0.5 mm solid / 24 AWG9.3 mm
Type JX PVC overall screened thermocouple extension cable JX 2 pair 7/0.2 mm stranded / 24 AWG2 pair7/0.2 mm stranded / 24 AWG9.5 mm
Type JX PVC overall screened thermocouple extension cable JX 4 pair 1/0.5 mm solid / 24 AWG4 pair1/0.5 mm solid / 24 AWG10.8 mm
Type JX PVC overall screened thermocouple extension cable JX 4 pair 7/0.2 mm stranded / 24 AWG4 pair7/0.2 mm stranded / 24 AWG11.0 mm
Type JX PVC overall screened thermocouple extension cable JX 8 pair 1/0.5 mm solid / 24 AWG8 pair1/0.5 mm solid / 24 AWG13.0 mm
Type JX PVC overall screened thermocouple extension cable JX 8 pair 7/0.2 mm stranded / 24 AWG8 pair7/0.2 mm stranded / 24 AWG13.1 mm
Type JX PVC overall screened thermocouple extension cable JX 12 pair 1/0.5 mm solid / 24 AWG12 pair1/0.5 mm solid / 24 AWG14.7 mm
Type JX PVC overall screened thermocouple extension cable JX 12 pair 7/0.2 mm stranded / 24 AWG12 pair7/0.2 mm stranded / 24 AWG14.8 mm
Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
