Shielded TC-ER Tray Control Cable

Shielded TC-ER Tray Control Cable is a tray cable construction for shielded controls, machine tools, process equipment, using fine stranded bare copper conductor, pvc nylon insulation, overall foil and tinned copper braid shield and oil and sunlight resistant pvc tray jacket.

Standard: UL 1277 TC-ER
Voltage class: 600 V
Temperature class: 90 °C dry / 75 °C wet guide
Conductor: Fine stranded bare copper conductor
Insulation / jacket: Oil and sunlight resistant PVC tray jacket

Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

Shielded controls
Machine tools
Process equipment
Noisy industrial routes

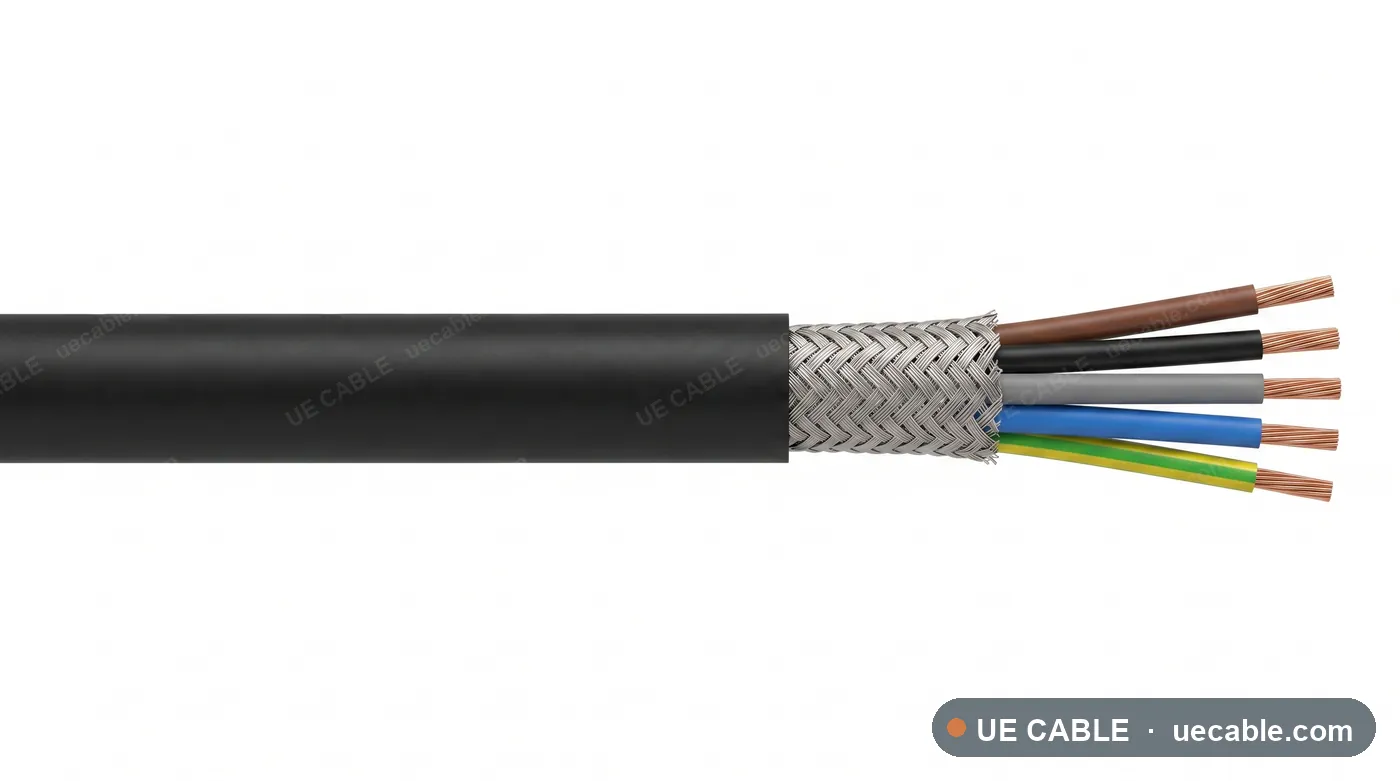

Cable Construction

Fine stranded bare copper conductor
PVC nylon insulation
Overall foil and tinned copper braid shield
Oil and sunlight resistant PVC tray jacket

Specifications

Select a cable size.

Each row below is a complete specification sheet — 20 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

Shielded tray control cable references

Each row is an exact tray cable cable specification sheet. Shared UL/CSA rating, jacket and installation data are listed above.

Tray cable dutyShielded power and control tray
Circuit typeShielded control
Voltage class600 V

Cable reference	Core / pair design	Conductor size	Max DC resistance at 20 °C	OD guide
TC-ER shielded 600 V Shielded power and control tray Shielded control 3 core 18 AWG / 0.82 mm²	3 core	18 AWG / 0.82 mm²	22.6 Ω/km	13.2 mm
TC-ER shielded 600 V Shielded power and control tray Shielded control 3 core 16 AWG / 1.31 mm²	3 core	16 AWG / 1.31 mm²	14.1 Ω/km	13.6 mm
TC-ER shielded 600 V Shielded power and control tray Shielded control 3 core 14 AWG / 2.08 mm²	3 core	14 AWG / 2.08 mm²	8.89 Ω/km	14.1 mm
TC-ER shielded 600 V Shielded power and control tray Shielded control 3 core 12 AWG / 3.31 mm²	3 core	12 AWG / 3.31 mm²	5.59 Ω/km	14.7 mm
TC-ER shielded 600 V Shielded power and control tray Shielded control 4 core 18 AWG / 0.82 mm²	4 core	18 AWG / 0.82 mm²	22.6 Ω/km	13.6 mm
TC-ER shielded 600 V Shielded power and control tray Shielded control 4 core 16 AWG / 1.31 mm²	4 core	16 AWG / 1.31 mm²	14.1 Ω/km	14.0 mm
TC-ER shielded 600 V Shielded power and control tray Shielded control 4 core 14 AWG / 2.08 mm²	4 core	14 AWG / 2.08 mm²	8.89 Ω/km	14.6 mm
TC-ER shielded 600 V Shielded power and control tray Shielded control 4 core 12 AWG / 3.31 mm²	4 core	12 AWG / 3.31 mm²	5.59 Ω/km	15.2 mm
TC-ER shielded 600 V Shielded power and control tray Shielded control 5 core 18 AWG / 0.82 mm²	5 core	18 AWG / 0.82 mm²	22.6 Ω/km	14.1 mm
TC-ER shielded 600 V Shielded power and control tray Shielded control 5 core 16 AWG / 1.31 mm²	5 core	16 AWG / 1.31 mm²	14.1 Ω/km	14.5 mm
TC-ER shielded 600 V Shielded power and control tray Shielded control 5 core 14 AWG / 2.08 mm²	5 core	14 AWG / 2.08 mm²	8.89 Ω/km	15.0 mm
TC-ER shielded 600 V Shielded power and control tray Shielded control 5 core 12 AWG / 3.31 mm²	5 core	12 AWG / 3.31 mm²	5.59 Ω/km	15.6 mm
TC-ER shielded 600 V Shielded power and control tray Shielded control 7 core 18 AWG / 0.82 mm²	7 core	18 AWG / 0.82 mm²	22.6 Ω/km	14.8 mm
TC-ER shielded 600 V Shielded power and control tray Shielded control 7 core 16 AWG / 1.31 mm²	7 core	16 AWG / 1.31 mm²	14.1 Ω/km	15.2 mm
TC-ER shielded 600 V Shielded power and control tray Shielded control 7 core 14 AWG / 2.08 mm²	7 core	14 AWG / 2.08 mm²	8.89 Ω/km	15.7 mm
TC-ER shielded 600 V Shielded power and control tray Shielded control 7 core 12 AWG / 3.31 mm²	7 core	12 AWG / 3.31 mm²	5.59 Ω/km	16.3 mm
TC-ER shielded 600 V Shielded power and control tray Shielded control 12 core 18 AWG / 0.82 mm²	12 core	18 AWG / 0.82 mm²	22.6 Ω/km	16.2 mm
TC-ER shielded 600 V Shielded power and control tray Shielded control 12 core 16 AWG / 1.31 mm²	12 core	16 AWG / 1.31 mm²	14.1 Ω/km	16.6 mm
TC-ER shielded 600 V Shielded power and control tray Shielded control 12 core 14 AWG / 2.08 mm²	12 core	14 AWG / 2.08 mm²	8.89 Ω/km	17.1 mm
TC-ER shielded 600 V Shielded power and control tray Shielded control 12 core 12 AWG / 3.31 mm²	12 core	12 AWG / 3.31 mm²	5.59 Ω/km	17.8 mm

Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
