Line-level audio cable

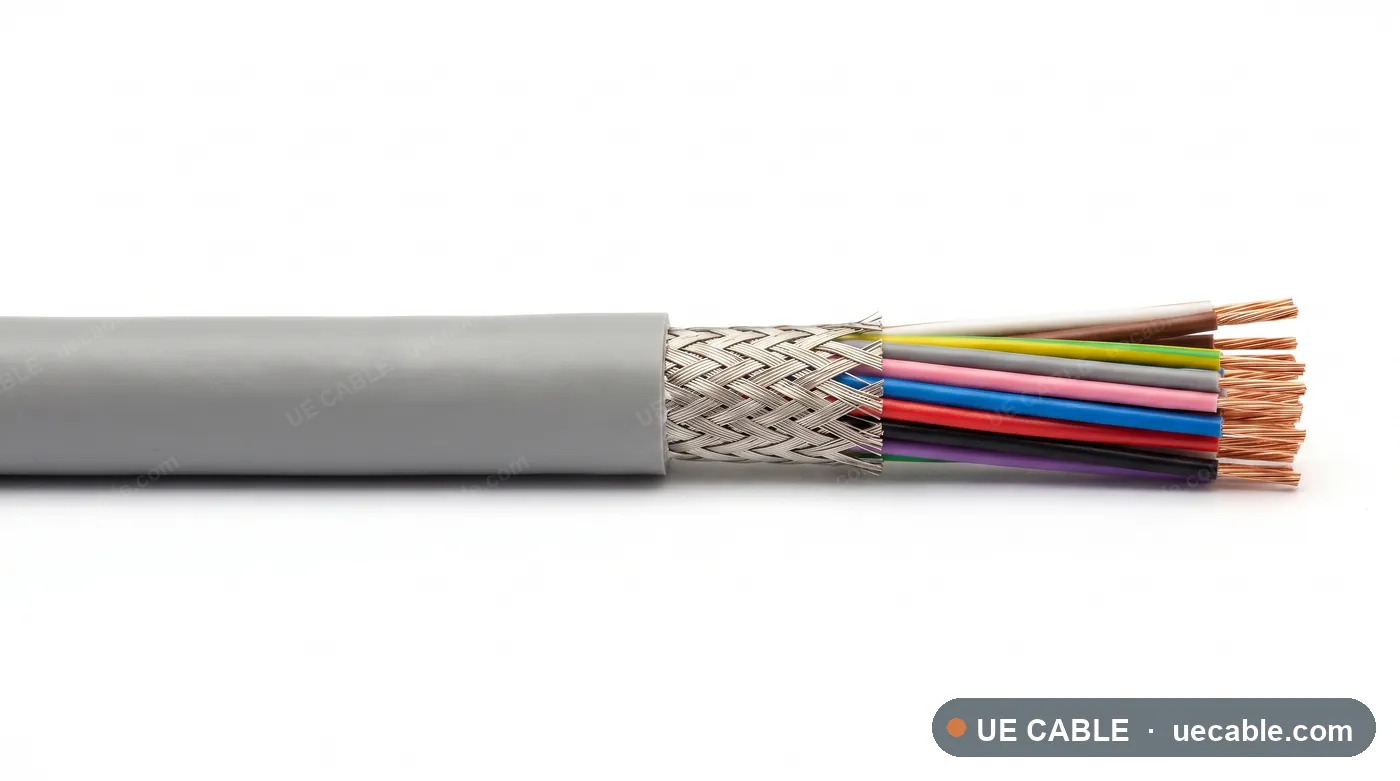

Screened Analog Audio Cable is a low-voltage signal cable reference for line-level audio, sound systems, studio wiring with size-specific electrical and construction data listed below.
Cable Type Data
Screened Analog Audio Cable is a low-voltage signal cable reference for line-level audio, sound systems, studio wiring with size-specific electrical and construction data listed below.
Specifications
Each row below is a complete specification sheet — 8 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.
| Cable reference | Cable design | Conductor size | Conductor construction | Max DC resistance at 20 °C | OD guide |
|---|---|---|---|---|---|
| Screened Analog Audio Cable 1P 24 AWG | 1 twisted pair | 24 AWG / 0.20 mm² | 7/32 AWG | 85.0 Ω/km | 3.8 mm |
| Screened Analog Audio Cable 1P 22 AWG | 1 twisted pair | 22 AWG / 0.33 mm² | 7/30 AWG | 53.5 Ω/km | 4.2 mm |
| Screened Analog Audio Cable 2P 24 AWG | 2 twisted pair | 24 AWG / 0.20 mm² | 7/32 AWG | 85.0 Ω/km | 4.9 mm |
| Screened Analog Audio Cable 2P 22 AWG | 2 twisted pair | 22 AWG / 0.33 mm² | 7/30 AWG | 53.5 Ω/km | 5.4 mm |
| Screened Analog Audio Cable 4P 24 AWG | 4 twisted pair | 24 AWG / 0.20 mm² | 7/32 AWG | 85.0 Ω/km | 6.4 mm |
| Screened Analog Audio Cable 4P 22 AWG | 4 twisted pair | 22 AWG / 0.33 mm² | 7/30 AWG | 53.5 Ω/km | 7.1 mm |
| Screened Analog Audio Cable 8P 24 AWG | 8 twisted pair | 24 AWG / 0.20 mm² | 7/32 AWG | 85.0 Ω/km | 8.5 mm |
| Screened Analog Audio Cable 8P 22 AWG | 8 twisted pair | 22 AWG / 0.33 mm² | 7/30 AWG | 53.5 Ω/km | 9.5 mm |
Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
