75 Ω broadband coaxial cable

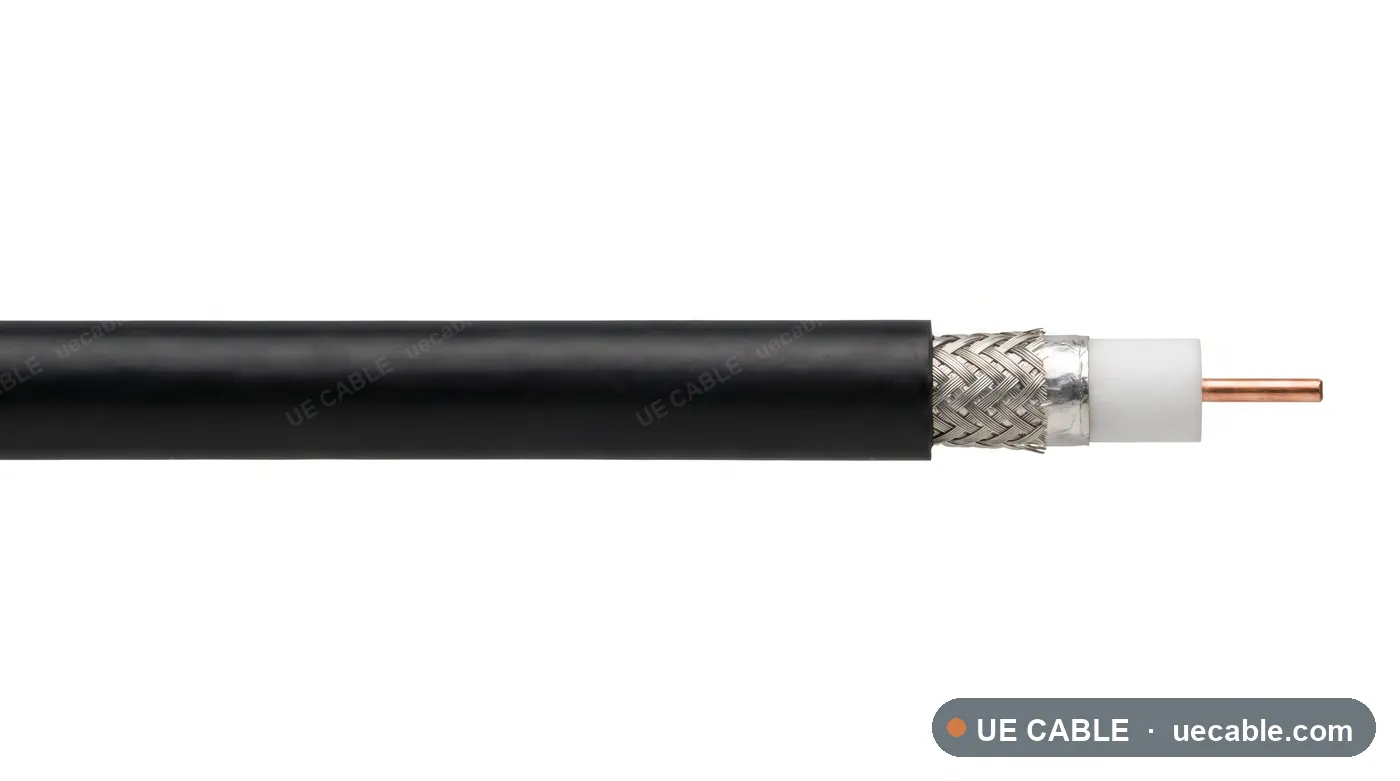

RG6 75 Ω CATV And Satellite Coaxial Cable is a coaxial cable reference for catv, satellite tv, broadband distribution with impedance, shielding, dielectric and loss data separated in the specification matrix.
Cable Type Data
RG6 75 Ω CATV And Satellite Coaxial Cable is a coaxial cable reference for catv, satellite tv, broadband distribution with impedance, shielding, dielectric and loss data separated in the specification matrix.
Specifications
Each row below is a complete specification sheet — 1 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.
| Cable reference | Application | Coax reference | Impedance | Center conductor | Dielectric | Shield construction | Jacket | OD guide | Electrical reference |
|---|---|---|---|---|---|---|---|---|---|
| RG6 UV-resistant PVC Coaxial Cable | CATV, satellite, broadband and commercial video route | RG6 | 75 Ω | Solid copper-clad steel or bare copper conductor | Foam PE dielectric | Foil plus braid or quad shield | UV-resistant PVC jacket | 6.90 mm | 53 pF/m nominal; 0.20 dB/m at 100 MHz guide; 82% nominal velocity factor |
Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
