75 Ω CCTV and video coaxial cable

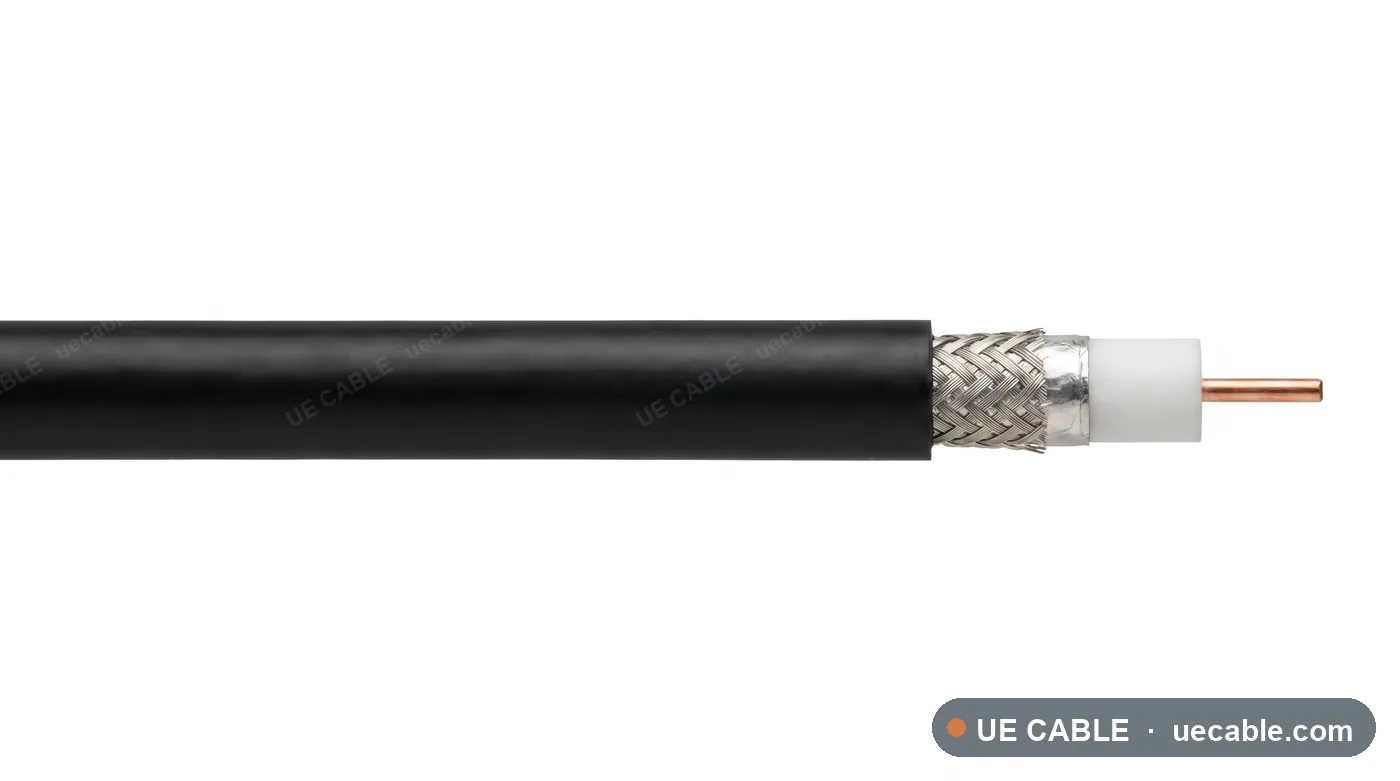

RG59 75 Ω CCTV Coaxial Cable is a coaxial cable reference for cctv, baseband video, security cameras with impedance, shielding, dielectric and loss data separated in the specification matrix.
Cable Type Data
RG59 75 Ω CCTV Coaxial Cable is a coaxial cable reference for cctv, baseband video, security cameras with impedance, shielding, dielectric and loss data separated in the specification matrix.
Specifications
Each row below is a complete specification sheet — 1 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.
| Cable reference | Application | Coax reference | Impedance | Center conductor | Dielectric | Shield construction | Jacket | OD guide | Electrical reference |
|---|---|---|---|---|---|---|---|---|---|
| RG59 UV-resistant PVC Coaxial Cable | CCTV, baseband video and short 75 Ω route | RG59 | 75 Ω | Solid bare copper or copper-clad steel conductor | Solid or foam PE dielectric | Bare copper braid or foil plus braid screen | UV-resistant PVC jacket | 6.10 mm | 67 pF/m nominal; 0.25 dB/m at 100 MHz guide; 66% to 82% velocity factor |
Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
