50 Ω RF coaxial cable

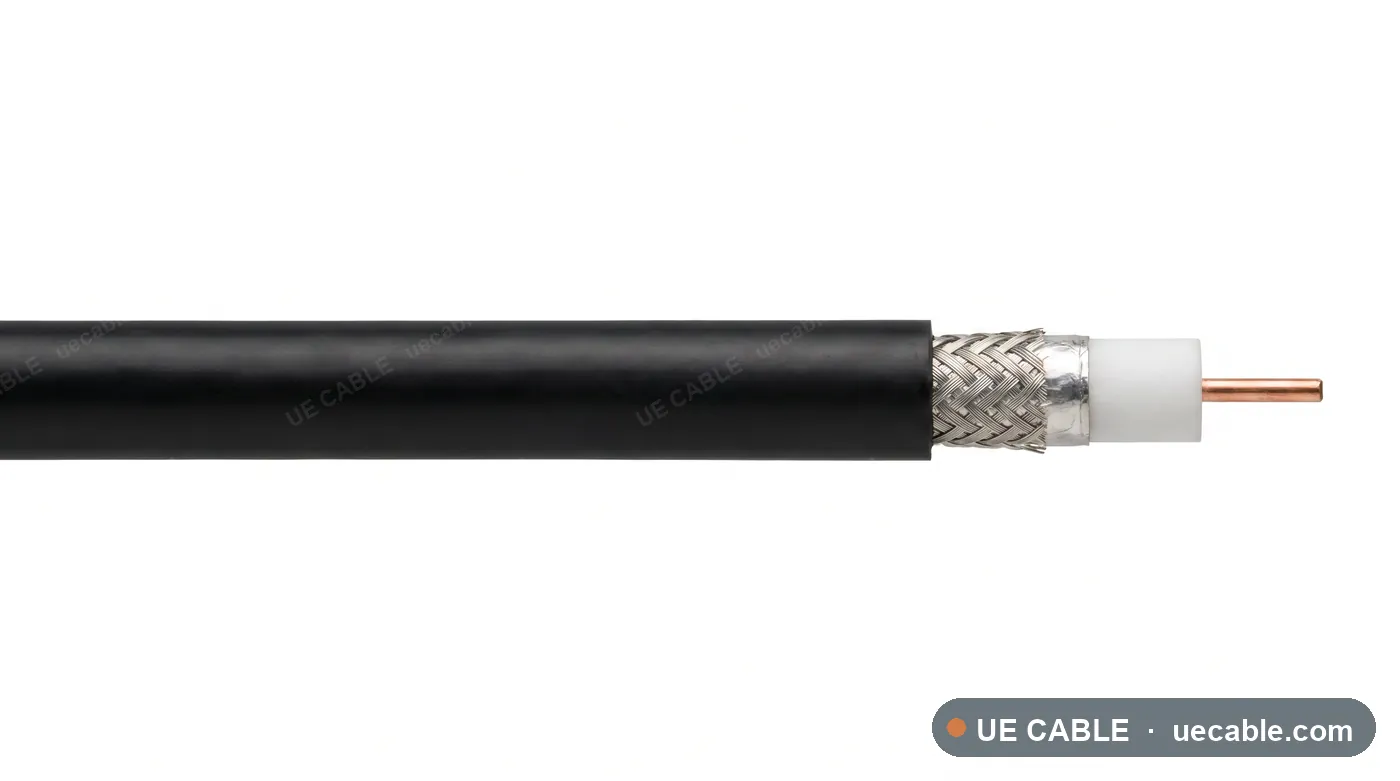

RG58 50 Ω Flexible Coaxial Cable is a coaxial cable reference for rf equipment, radio communication, test leads with impedance, shielding, dielectric and loss data separated in the specification matrix.
Cable Type Data
RG58 50 Ω Flexible Coaxial Cable is a coaxial cable reference for rf equipment, radio communication, test leads with impedance, shielding, dielectric and loss data separated in the specification matrix.
Specifications
Each row below is a complete specification sheet — 1 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.
| Cable reference | Application | Coax reference | Impedance | Center conductor | Dielectric | Shield construction | Jacket | OD guide | Electrical reference |
|---|---|---|---|---|---|---|---|---|---|
| RG58 UV-resistant PVC Coaxial Cable | RF equipment, test lead and antenna jumper | RG58 | 50 Ω | Stranded tinned copper conductor | Solid PE dielectric | Tinned copper braid screen | UV-resistant PVC jacket | 4.95 mm | 100 pF/m nominal; 0.64 dB/m at 400 MHz guide; 66% nominal velocity factor |
Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
