Large diameter RF coaxial cable

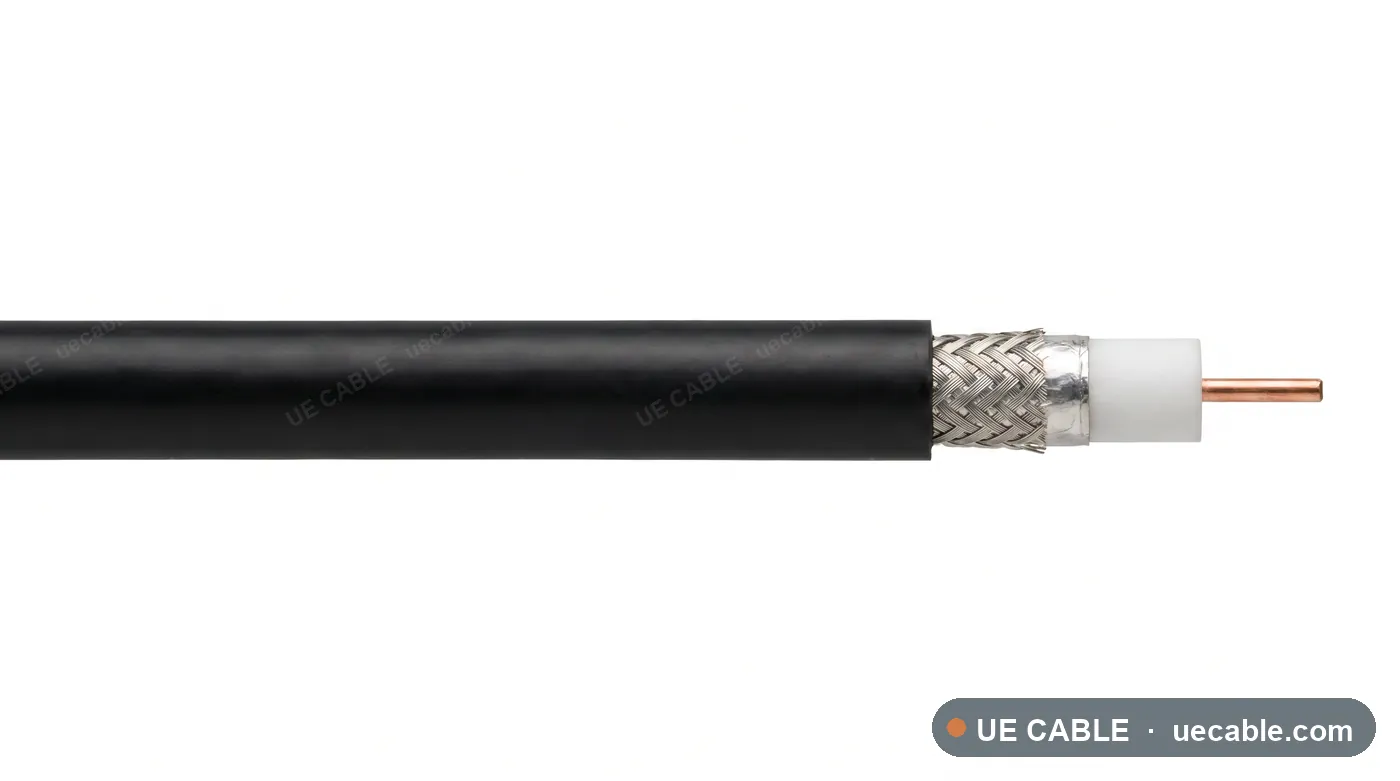

RG213 / RG8 50 Ω RF Coaxial Cable is a coaxial cable reference for base station feeders, radio systems, rf transmission with impedance, shielding, dielectric and loss data separated in the specification matrix.
Cable Type Data
RG213 / RG8 50 Ω RF Coaxial Cable is a coaxial cable reference for base station feeders, radio systems, rf transmission with impedance, shielding, dielectric and loss data separated in the specification matrix.
Specifications
Each row below is a complete specification sheet — 1 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.
| Cable reference | Application | Coax reference | Impedance | Center conductor | Dielectric | Shield construction | Jacket | OD guide | Electrical reference |
|---|---|---|---|---|---|---|---|---|---|
| RG213 UV-resistant PVC Coaxial Cable | RF feeder, base station and antenna route | RG213 | 50 Ω | Stranded bare copper conductor | Solid PE dielectric | Bare copper braid screen | UV-resistant PVC jacket | 10.30 mm | 101 pF/m nominal; 0.28 dB/m at 400 MHz guide; 66% nominal velocity factor |
Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
