Miniature RF coaxial cable
RG174 Miniature 50 Ω Coaxial Cable is a coaxial cable reference for internal rf wiring, gps leads, compact antenna pigtails with impedance, shielding, dielectric and loss data separated in the specification matrix.
Cable Type Data
RG174 Miniature 50 Ω Coaxial Cable is a coaxial cable reference for internal rf wiring, gps leads, compact antenna pigtails with impedance, shielding, dielectric and loss data separated in the specification matrix.
Specifications
Each row below is a complete specification sheet — 1 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

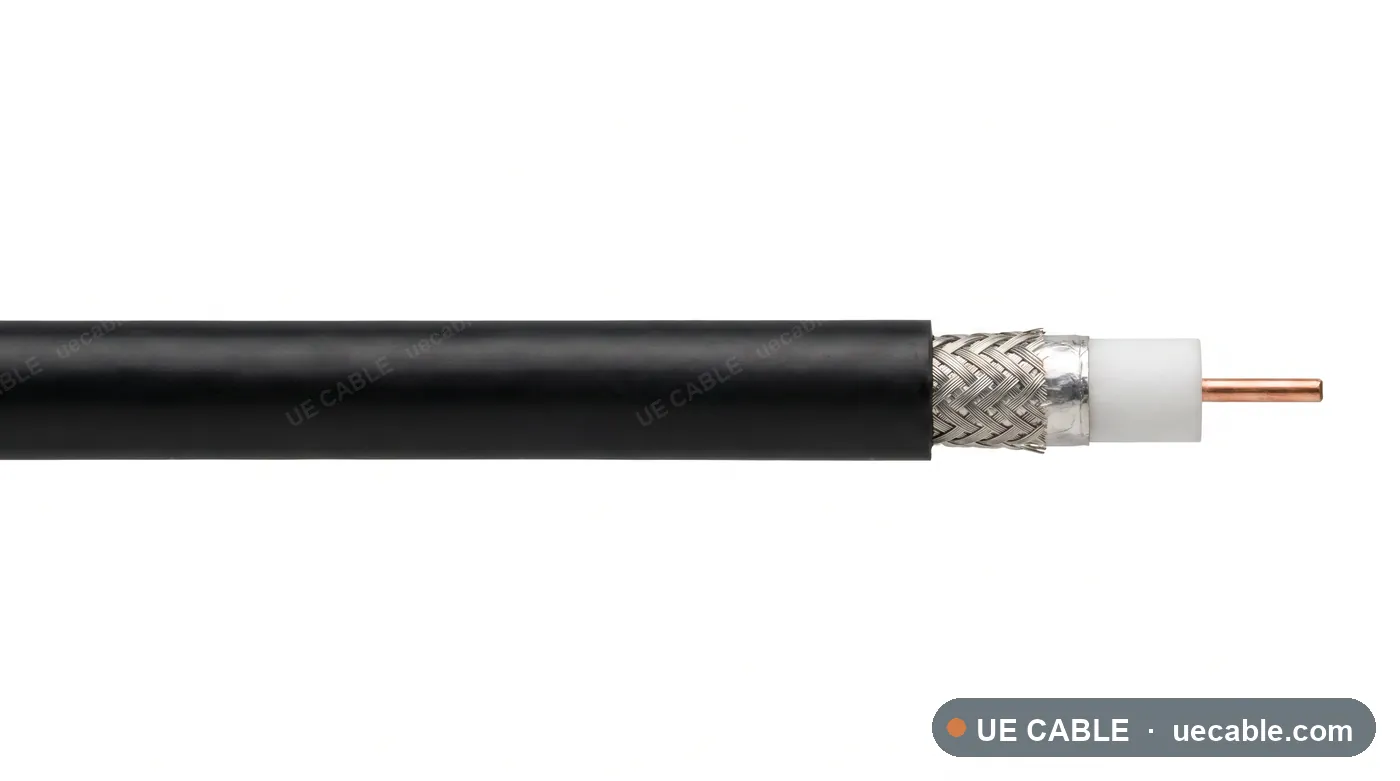

| Cable reference | Application | Coax reference | Impedance | Center conductor | Dielectric | Shield construction | Jacket | OD guide | Electrical reference |
|---|---|---|---|---|---|---|---|---|---|
| RG174 PVC Coaxial Cable | Compact RF, GPS and instrumentation pigtail | RG174 | 50 Ω | Stranded copper-clad steel or tinned copper conductor | Solid PE dielectric | Tinned copper braid screen | PVC jacket | 2.80 mm | 101 pF/m nominal; 1.20 dB/m at 400 MHz guide; 66% nominal velocity factor |
Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
