Longer route 75 Ω coaxial cable

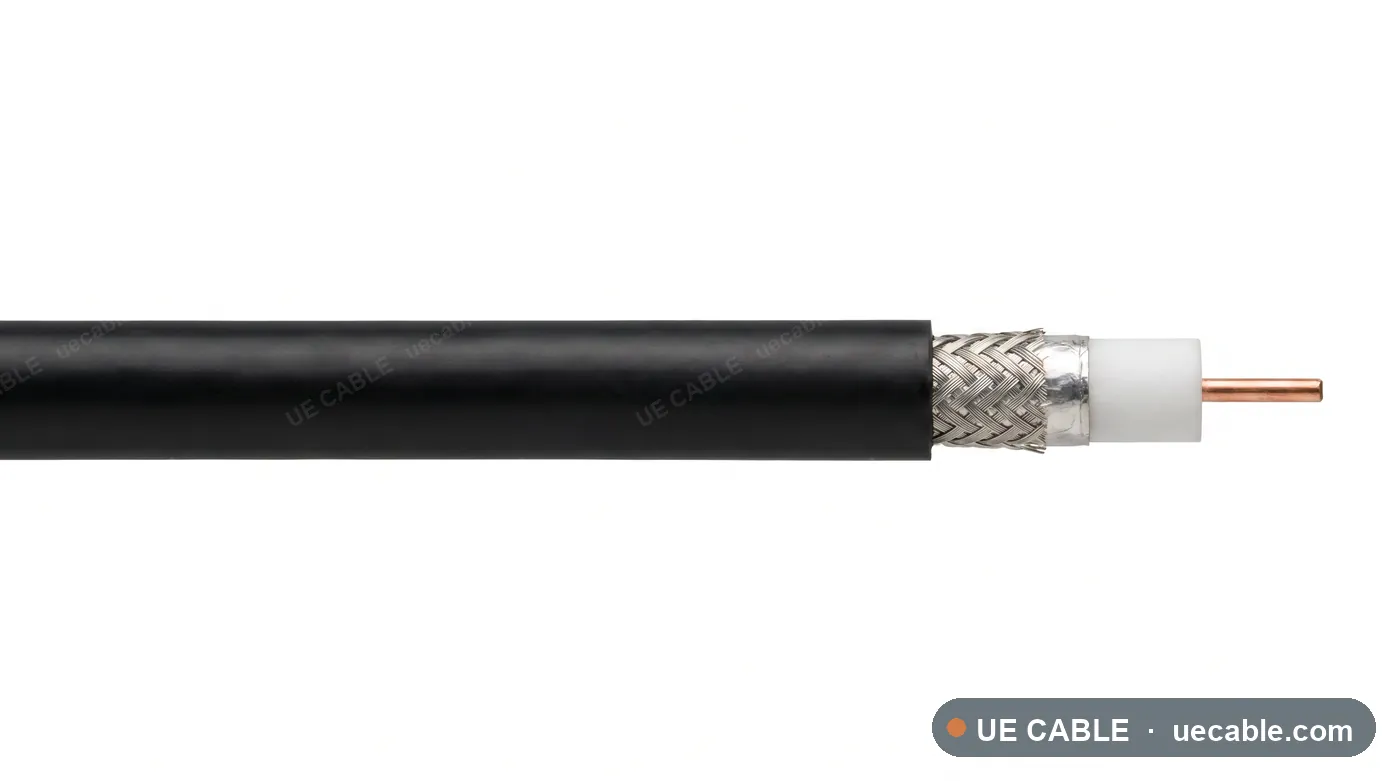

RG11 75 Ω Trunk Coaxial Cable is a coaxial cable reference for longer catv runs, trunk video distribution, satellite backbone with impedance, shielding, dielectric and loss data separated in the specification matrix.
Cable Type Data
RG11 75 Ω Trunk Coaxial Cable is a coaxial cable reference for longer catv runs, trunk video distribution, satellite backbone with impedance, shielding, dielectric and loss data separated in the specification matrix.
Specifications
Each row below is a complete specification sheet — 1 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.
| Cable reference | Application | Coax reference | Impedance | Center conductor | Dielectric | Shield construction | Jacket | OD guide | Electrical reference |
|---|---|---|---|---|---|---|---|---|---|
| RG11 UV-resistant PVC Coaxial Cable | Longer CATV, satellite and 75 Ω trunk route | RG11 | 75 Ω | Solid bare copper or copper-clad steel conductor | Foam PE dielectric | Foil plus braid or quad shield | UV-resistant PVC jacket | 10.30 mm | 53 pF/m nominal; 0.13 dB/m at 100 MHz guide; 82% nominal velocity factor |
Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
