PVC EMC VFD Motor Cable cable construction reference

PVC screened drive cable

PVC EMC VFD Motor Cable

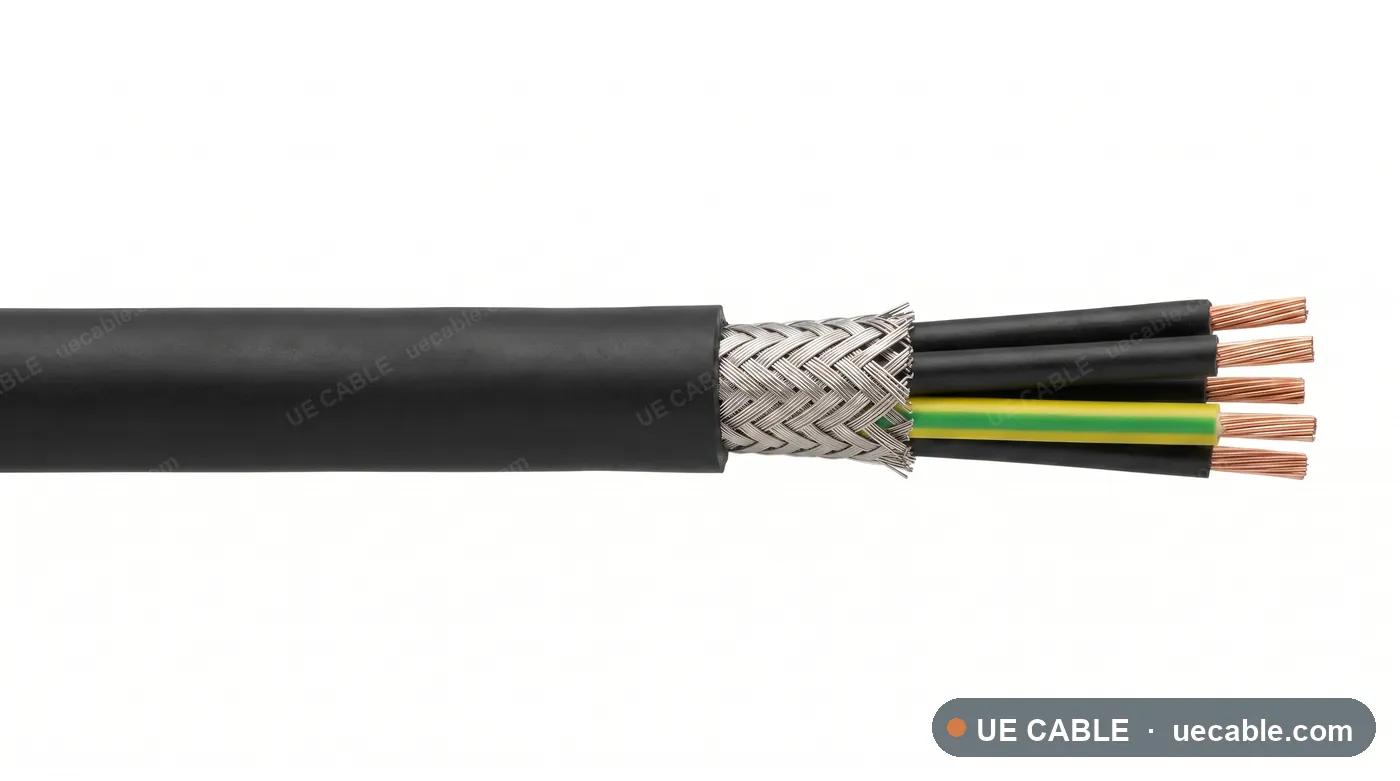

PVC EMC VFD Motor Cable is a specific variable-frequency drive cable construction for industrial motors, machine drives, pumps, using class 5 flexible copper conductor, xlpe insulation, copper tape or foil plus copper braid screen and pvc oil-resistant sheath.

Standard
IEC 60502-1
Voltage class
0.6/1 kV
Conductor
Class 5 flexible copper conductor
Insulation / jacket
PVC oil-resistant sheath
Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

PVC EMC VFD Motor Cable is a specific variable-frequency drive cable construction for industrial motors, machine drives, pumps, using class 5 flexible copper conductor, xlpe insulation, copper tape or foil plus copper braid screen and pvc oil-resistant sheath.

  • Industrial motors
  • Machine drives
  • Pumps
  • Fans

Cable Construction

  • Class 5 flexible copper conductor
  • XLPE insulation
  • Symmetrical protective earth or ground conductors
  • Copper tape or foil plus copper braid screen
  • PVC oil-resistant sheath

Specifications

Select a cable size.

Each row below is a complete specification sheet — 9 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

0.6/1 kV EMC drive specification references

Each row is an exact VFD cable cable specification sheet. Shared insulation, EMC screen and sheath data are listed above.

  • Voltage class0.6/1 kV
  • EMC screenCopper tape or foil plus copper braid screen
Cable referenceCore / ground designPower conductorMax DC resistance at 20 °COD guide
PVC EMC VFD motor cable 0.6/1 kV 3 x 6 mm² + 3 symmetrical grounds x 1.5 mm²3 x 6 mm² + 3 symmetrical grounds x 1.5 mm²6 mm²3.30 Ω/km15 mm
PVC EMC VFD motor cable 0.6/1 kV 3 x 10 mm² + 3 symmetrical grounds x 1.5 mm²3 x 10 mm² + 3 symmetrical grounds x 1.5 mm²10 mm²1.91 Ω/km17 mm
PVC EMC VFD motor cable 0.6/1 kV 3 x 16 mm² + 3 symmetrical grounds x 1.5 mm²3 x 16 mm² + 3 symmetrical grounds x 1.5 mm²16 mm²1.21 Ω/km19 mm
PVC EMC VFD motor cable 0.6/1 kV 3 x 25 mm² + 3 symmetrical grounds x 4 mm²3 x 25 mm² + 3 symmetrical grounds x 4 mm²25 mm²0.780 Ω/km22 mm
PVC EMC VFD motor cable 0.6/1 kV 3 x 35 mm² + 3 symmetrical grounds x 4 mm²3 x 35 mm² + 3 symmetrical grounds x 4 mm²35 mm²0.554 Ω/km24 mm
PVC EMC VFD motor cable 0.6/1 kV 3 x 50 mm² + 3 symmetrical grounds x 10 mm²3 x 50 mm² + 3 symmetrical grounds x 10 mm²50 mm²0.386 Ω/km27 mm
PVC EMC VFD motor cable 0.6/1 kV 3 x 70 mm² + 3 symmetrical grounds x 10 mm²3 x 70 mm² + 3 symmetrical grounds x 10 mm²70 mm²0.272 Ω/km31 mm
PVC EMC VFD motor cable 0.6/1 kV 3 x 95 mm² + 3 symmetrical grounds x 16 mm²3 x 95 mm² + 3 symmetrical grounds x 16 mm²95 mm²0.206 Ω/km34 mm
PVC EMC VFD motor cable 0.6/1 kV 3 x 120 mm² + 3 symmetrical grounds x 16 mm²3 x 120 mm² + 3 symmetrical grounds x 16 mm²120 mm²0.161 Ω/km37 mm
Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.

Request Quote →
