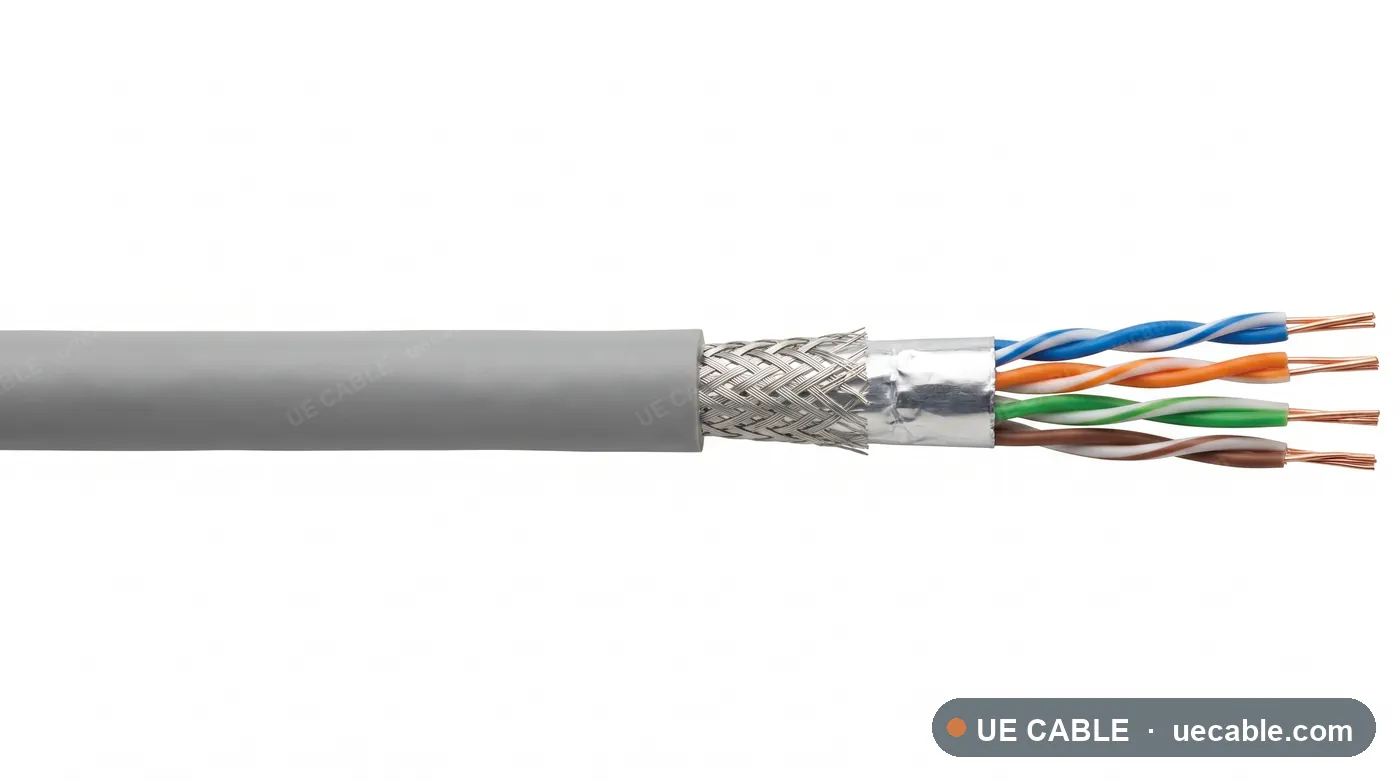

PROFINET Type A Cat5e SF/UTP PVC Static Cable cable construction reference

Fixed PROFINET cable

PROFINET Type A Cat5e SF/UTP PVC Static Cable

PROFINET Type A Cat5e SF/UTP PVC Static Cable is an industrial Ethernet cable construction for fixed automation networks, plc cabinets, machine wiring applications, with Cat5e, 100 MHz, aluminium foil plus tinned copper braid and green pvc jacket.

Standard
IEC 61158
Conductor
AWG22/1 solid
Insulation / jacket
Green PVC jacket

Cable Type Data

Construction and applications.

Applications

PROFINET Type A Cat5e SF/UTP PVC Static Cable is an industrial Ethernet cable construction for fixed automation networks, plc cabinets, machine wiring applications, with Cat5e, 100 MHz, aluminium foil plus tinned copper braid and green pvc jacket.

  • Fixed automation networks
  • PLC cabinets
  • Machine wiring
  • Factory Ethernet

Cable Construction

  • AWG22/1 solid
  • Twisted pair data cores
  • Aluminium foil plus tinned copper braid
  • Green PVC jacket

Specifications

Select a cable size.

Each row below is a complete specification sheet — 1 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

PROFINET Type A specification references

Each row is an exact cable specification sheet. Confirm connector type, installation motion, oil exposure and network protocol before quotation.

Cable referenceProtocol / useCategoryPair layoutConductorBandwidthShielding
PROFINET Type A Cat5e SF/UTP PVC 2 x 2 pair AWG22/1 solid Static installationPROFINET Type ACat5e2 x 2 pairAWG22/1 solid100 MHzAluminium foil plus tinned copper braid
Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
