Power-limited tray cable

PLTC 300 V Signal Tray Cable

PLTC 300 V Signal Tray Cable is a tray cable construction for signal tray circuits, alarm systems, intercom systems, using stranded bare copper conductor, pvc insulation, aluminium polyester foil screen with drain wire and flame retardant pvc tray jacket.

Standard: UL 13
Voltage class: 300 V
Temperature class: 90 °C dry / 75 °C wet guide
Conductor: Stranded bare copper conductor
Insulation / jacket: Flame retardant PVC tray jacket

Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

Signal tray circuits
Alarm systems
Intercom systems
Industrial controls

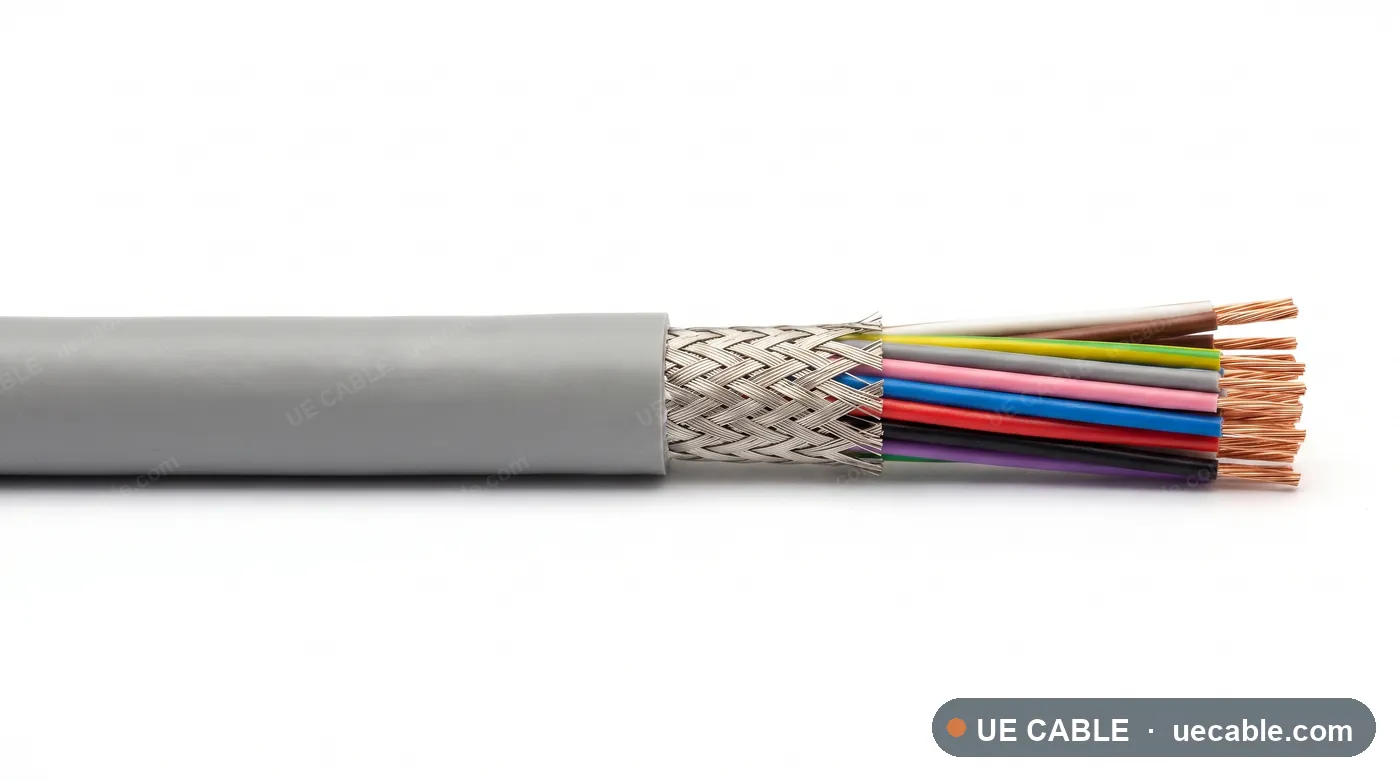

Cable Construction

Stranded bare copper conductor
PVC insulation
Aluminium polyester foil screen with drain wire
Flame retardant PVC tray jacket

Specifications

Select a cable size.

Each row below is a complete specification sheet — 24 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

PLTC 300 V signal tray cable references

Each row is an exact tray cable cable specification sheet. Shared UL/CSA rating, jacket and installation data are listed above.

Tray cable dutyPower-limited signal tray
Voltage class300 V

Cable reference	Circuit type	Core / pair design	Conductor size	Max DC resistance at 20 °C	OD guide
PLTC 300 V Power-limited signal tray Pair 1 pair 18 AWG / 0.82 mm²	Pair	1 pair	18 AWG / 0.82 mm²	22.6 Ω/km	11.2 mm
PLTC 300 V Power-limited signal tray Pair 1 pair 16 AWG / 1.31 mm²	Pair	1 pair	16 AWG / 1.31 mm²	14.1 Ω/km	11.6 mm
PLTC 300 V Power-limited signal tray Pair 2 pair 18 AWG / 0.82 mm²	Pair	2 pair	18 AWG / 0.82 mm²	22.6 Ω/km	12.2 mm
PLTC 300 V Power-limited signal tray Pair 2 pair 16 AWG / 1.31 mm²	Pair	2 pair	16 AWG / 1.31 mm²	14.1 Ω/km	12.6 mm
PLTC 300 V Power-limited signal tray Pair 4 pair 18 AWG / 0.82 mm²	Pair	4 pair	18 AWG / 0.82 mm²	22.6 Ω/km	13.7 mm
PLTC 300 V Power-limited signal tray Pair 4 pair 16 AWG / 1.31 mm²	Pair	4 pair	16 AWG / 1.31 mm²	14.1 Ω/km	14.1 mm
PLTC 300 V Power-limited signal tray Pair 8 pair 18 AWG / 0.82 mm²	Pair	8 pair	18 AWG / 0.82 mm²	22.6 Ω/km	15.7 mm
PLTC 300 V Power-limited signal tray Pair 8 pair 16 AWG / 1.31 mm²	Pair	8 pair	16 AWG / 1.31 mm²	14.1 Ω/km	16.1 mm
PLTC 300 V Power-limited signal tray Pair 12 pair 18 AWG / 0.82 mm²	Pair	12 pair	18 AWG / 0.82 mm²	22.6 Ω/km	17.3 mm
PLTC 300 V Power-limited signal tray Pair 12 pair 16 AWG / 1.31 mm²	Pair	12 pair	16 AWG / 1.31 mm²	14.1 Ω/km	17.7 mm
PLTC 300 V Power-limited signal tray Pair 16 pair 18 AWG / 0.82 mm²	Pair	16 pair	18 AWG / 0.82 mm²	22.6 Ω/km	18.6 mm
PLTC 300 V Power-limited signal tray Pair 16 pair 16 AWG / 1.31 mm²	Pair	16 pair	16 AWG / 1.31 mm²	14.1 Ω/km	19.0 mm
PLTC 300 V Power-limited signal tray Triad 1 pair 18 AWG / 0.82 mm²	Triad	1 pair	18 AWG / 0.82 mm²	22.6 Ω/km	11.2 mm
PLTC 300 V Power-limited signal tray Triad 1 pair 16 AWG / 1.31 mm²	Triad	1 pair	16 AWG / 1.31 mm²	14.1 Ω/km	11.6 mm
PLTC 300 V Power-limited signal tray Triad 2 pair 18 AWG / 0.82 mm²	Triad	2 pair	18 AWG / 0.82 mm²	22.6 Ω/km	12.2 mm
PLTC 300 V Power-limited signal tray Triad 2 pair 16 AWG / 1.31 mm²	Triad	2 pair	16 AWG / 1.31 mm²	14.1 Ω/km	12.6 mm
PLTC 300 V Power-limited signal tray Triad 4 pair 18 AWG / 0.82 mm²	Triad	4 pair	18 AWG / 0.82 mm²	22.6 Ω/km	13.7 mm
PLTC 300 V Power-limited signal tray Triad 4 pair 16 AWG / 1.31 mm²	Triad	4 pair	16 AWG / 1.31 mm²	14.1 Ω/km	14.1 mm
PLTC 300 V Power-limited signal tray Triad 8 pair 18 AWG / 0.82 mm²	Triad	8 pair	18 AWG / 0.82 mm²	22.6 Ω/km	15.7 mm
PLTC 300 V Power-limited signal tray Triad 8 pair 16 AWG / 1.31 mm²	Triad	8 pair	16 AWG / 1.31 mm²	14.1 Ω/km	16.1 mm
PLTC 300 V Power-limited signal tray Triad 12 pair 18 AWG / 0.82 mm²	Triad	12 pair	18 AWG / 0.82 mm²	22.6 Ω/km	17.3 mm
PLTC 300 V Power-limited signal tray Triad 12 pair 16 AWG / 1.31 mm²	Triad	12 pair	16 AWG / 1.31 mm²	14.1 Ω/km	17.7 mm
PLTC 300 V Power-limited signal tray Triad 16 pair 18 AWG / 0.82 mm²	Triad	16 pair	18 AWG / 0.82 mm²	22.6 Ω/km	18.6 mm
PLTC 300 V Power-limited signal tray Triad 16 pair 16 AWG / 1.31 mm²	Triad	16 pair	16 AWG / 1.31 mm²	14.1 Ω/km	19.0 mm

Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
