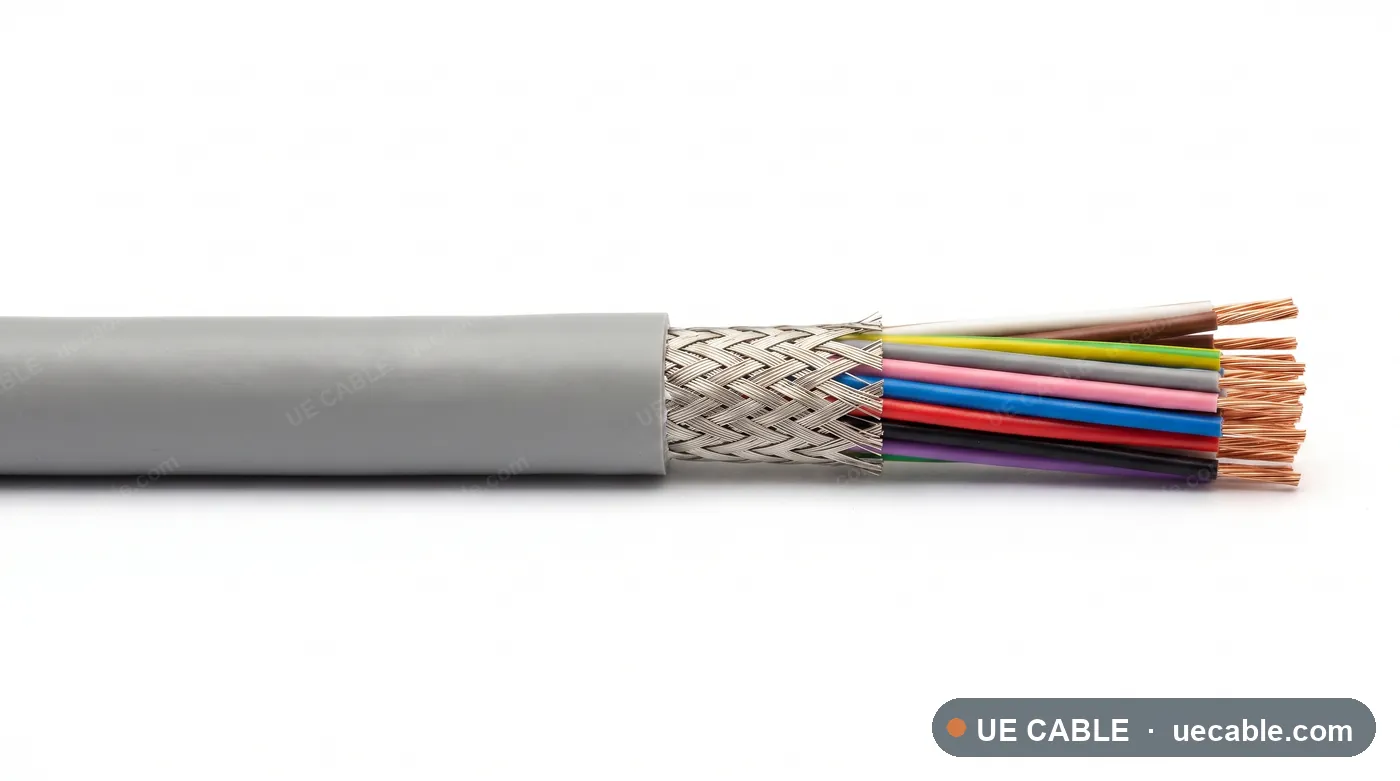

ITC Instrumentation Tray Cable cable construction reference

Instrumentation tray cable

ITC Instrumentation Tray Cable

ITC Instrumentation Tray Cable is a tray cable construction for instrumentation signals, process control, analogue signals, using stranded bare copper conductor, pvc nylon instrumentation insulation, individual and overall aluminium polyester screen with drain wire and sunlight resistant pvc tray jacket.

Standard: UL 2250
Voltage class: 300 V
Temperature class: 90 °C dry / 75 °C wet guide
Conductor: Stranded bare copper conductor
Insulation / jacket: Sunlight resistant PVC tray jacket

Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

ITC Instrumentation Tray Cable is a tray cable construction for instrumentation signals, process control, analogue signals, using stranded bare copper conductor, pvc nylon instrumentation insulation, individual and overall aluminium polyester screen with drain wire and sunlight resistant pvc tray jacket.

Instrumentation signals
Process control
Analogue signals
Plant automation

Cable Construction

Stranded bare copper conductor
PVC nylon instrumentation insulation
Individual and overall aluminium polyester screen with drain wire
Sunlight resistant PVC tray jacket

Specifications

Select a cable size.

Each row below is a complete specification sheet — 24 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

ITC instrumentation tray cable references

Each row is an exact tray cable cable specification sheet. Shared UL/CSA rating, jacket and installation data are listed above.

Tray cable dutyInstrumentation tray signal
Voltage class300 V

Cable reference	Circuit type	Core / pair design	Conductor size	Max DC resistance at 20 °C	OD guide
ITC 300 V Instrumentation tray signal Pair 1 pair 18 AWG / 0.82 mm²	Pair	1 pair	18 AWG / 0.82 mm²	22.6 Ω/km	11.8 mm
ITC 300 V Instrumentation tray signal Pair 1 pair 16 AWG / 1.31 mm²	Pair	1 pair	16 AWG / 1.31 mm²	14.1 Ω/km	12.2 mm
ITC 300 V Instrumentation tray signal Pair 2 pair 18 AWG / 0.82 mm²	Pair	2 pair	18 AWG / 0.82 mm²	22.6 Ω/km	12.8 mm
ITC 300 V Instrumentation tray signal Pair 2 pair 16 AWG / 1.31 mm²	Pair	2 pair	16 AWG / 1.31 mm²	14.1 Ω/km	13.2 mm
ITC 300 V Instrumentation tray signal Pair 4 pair 18 AWG / 0.82 mm²	Pair	4 pair	18 AWG / 0.82 mm²	22.6 Ω/km	14.3 mm
ITC 300 V Instrumentation tray signal Pair 4 pair 16 AWG / 1.31 mm²	Pair	4 pair	16 AWG / 1.31 mm²	14.1 Ω/km	14.7 mm
ITC 300 V Instrumentation tray signal Pair 8 pair 18 AWG / 0.82 mm²	Pair	8 pair	18 AWG / 0.82 mm²	22.6 Ω/km	16.3 mm
ITC 300 V Instrumentation tray signal Pair 8 pair 16 AWG / 1.31 mm²	Pair	8 pair	16 AWG / 1.31 mm²	14.1 Ω/km	16.7 mm
ITC 300 V Instrumentation tray signal Pair 12 pair 18 AWG / 0.82 mm²	Pair	12 pair	18 AWG / 0.82 mm²	22.6 Ω/km	17.9 mm
ITC 300 V Instrumentation tray signal Pair 12 pair 16 AWG / 1.31 mm²	Pair	12 pair	16 AWG / 1.31 mm²	14.1 Ω/km	18.3 mm
ITC 300 V Instrumentation tray signal Pair 16 pair 18 AWG / 0.82 mm²	Pair	16 pair	18 AWG / 0.82 mm²	22.6 Ω/km	19.2 mm
ITC 300 V Instrumentation tray signal Pair 16 pair 16 AWG / 1.31 mm²	Pair	16 pair	16 AWG / 1.31 mm²	14.1 Ω/km	19.6 mm
ITC 300 V Instrumentation tray signal Triad 1 pair 18 AWG / 0.82 mm²	Triad	1 pair	18 AWG / 0.82 mm²	22.6 Ω/km	11.8 mm
ITC 300 V Instrumentation tray signal Triad 1 pair 16 AWG / 1.31 mm²	Triad	1 pair	16 AWG / 1.31 mm²	14.1 Ω/km	12.2 mm
ITC 300 V Instrumentation tray signal Triad 2 pair 18 AWG / 0.82 mm²	Triad	2 pair	18 AWG / 0.82 mm²	22.6 Ω/km	12.8 mm
ITC 300 V Instrumentation tray signal Triad 2 pair 16 AWG / 1.31 mm²	Triad	2 pair	16 AWG / 1.31 mm²	14.1 Ω/km	13.2 mm
ITC 300 V Instrumentation tray signal Triad 4 pair 18 AWG / 0.82 mm²	Triad	4 pair	18 AWG / 0.82 mm²	22.6 Ω/km	14.3 mm
ITC 300 V Instrumentation tray signal Triad 4 pair 16 AWG / 1.31 mm²	Triad	4 pair	16 AWG / 1.31 mm²	14.1 Ω/km	14.7 mm
ITC 300 V Instrumentation tray signal Triad 8 pair 18 AWG / 0.82 mm²	Triad	8 pair	18 AWG / 0.82 mm²	22.6 Ω/km	16.3 mm
ITC 300 V Instrumentation tray signal Triad 8 pair 16 AWG / 1.31 mm²	Triad	8 pair	16 AWG / 1.31 mm²	14.1 Ω/km	16.7 mm
ITC 300 V Instrumentation tray signal Triad 12 pair 18 AWG / 0.82 mm²	Triad	12 pair	18 AWG / 0.82 mm²	22.6 Ω/km	17.9 mm
ITC 300 V Instrumentation tray signal Triad 12 pair 16 AWG / 1.31 mm²	Triad	12 pair	16 AWG / 1.31 mm²	14.1 Ω/km	18.3 mm
ITC 300 V Instrumentation tray signal Triad 16 pair 18 AWG / 0.82 mm²	Triad	16 pair	18 AWG / 0.82 mm²	22.6 Ω/km	19.2 mm
ITC 300 V Instrumentation tray signal Triad 16 pair 16 AWG / 1.31 mm²	Triad	16 pair	16 AWG / 1.31 mm²	14.1 Ω/km	19.6 mm

Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
