EtherCAT automation cable

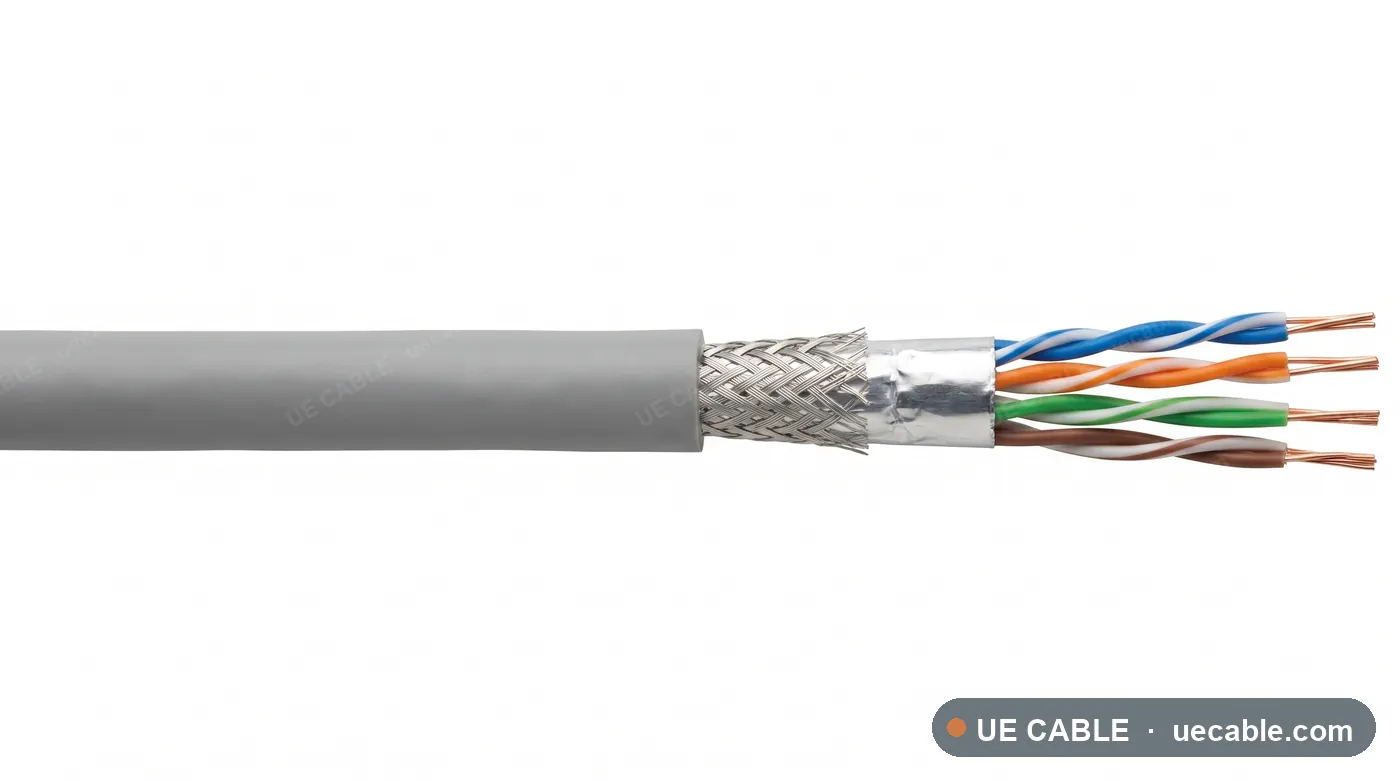

EtherCAT Cat5e Industrial Ethernet Cable is an industrial Ethernet cable construction for servo networks, distributed i/o, motion control applications, with Cat5e, 100 MHz, foil and braid screen and PVC jacket.
Cable Type Data
EtherCAT Cat5e Industrial Ethernet Cable is an industrial Ethernet cable construction for servo networks, distributed i/o, motion control applications, with Cat5e, 100 MHz, foil and braid screen and PVC jacket.
Specifications
Each row below is a complete specification sheet — 8 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.
Each row is an exact cable specification sheet. Confirm connector type, installation motion, oil exposure and network protocol before quotation.
| Cable reference | Pair layout | Conductor |
|---|---|---|
| EtherCAT Cat5e Industrial 2 x 2 pair AWG22/7 stranded Static installation | 2 x 2 pair | AWG22/7 stranded |
| EtherCAT Cat5e Industrial 2 x 2 pair AWG22/7 stranded Flexible installation | 2 x 2 pair | AWG22/7 stranded |
| EtherCAT Cat5e Industrial 2 x 2 pair AWG26/7 stranded Static installation | 2 x 2 pair | AWG26/7 stranded |
| EtherCAT Cat5e Industrial 2 x 2 pair AWG26/7 stranded Flexible installation | 2 x 2 pair | AWG26/7 stranded |
| EtherCAT Cat5e Industrial 4 x 2 pair AWG22/7 stranded Static installation | 4 x 2 pair | AWG22/7 stranded |
| EtherCAT Cat5e Industrial 4 x 2 pair AWG22/7 stranded Flexible installation | 4 x 2 pair | AWG22/7 stranded |
| EtherCAT Cat5e Industrial 4 x 2 pair AWG26/7 stranded Static installation | 4 x 2 pair | AWG26/7 stranded |
| EtherCAT Cat5e Industrial 4 x 2 pair AWG26/7 stranded Flexible installation | 4 x 2 pair | AWG26/7 stranded |
Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
