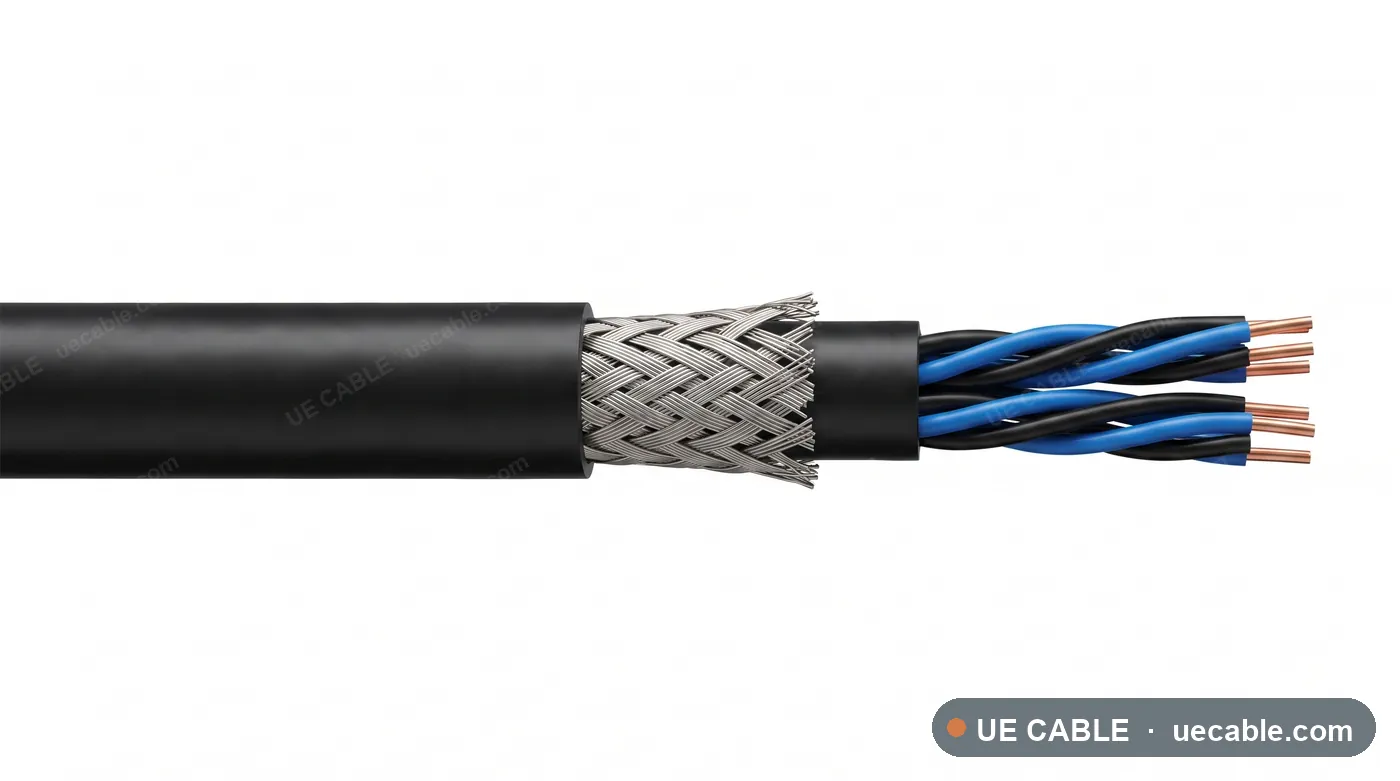

EN 50288-7 RE-2X(St)Y CWB Multipair Instrumentation Cable cable construction reference

Copper Wire Braid Screened

EN 50288-7 RE-2X(St)Y CWB Multipair Instrumentation Cable

EN 50288-7 RE-2X(St)Y CWB Multipair Instrumentation Cable is an instrumentation cable construction for marshalling cabinets, DCS racks, junction boxes and multi-loop field instrument wiring, combining XLPE insulation, PVC sheath, copper wire braid screen for emc protection and mechanical stability and a protected installation profile.

Standard
EN 50288-7
Voltage class
300/500 V or 500 V application reference
Conductor
0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm² and customer-specified sizes
Insulation / jacket
PVC
Cross-section range
2 pair to 50 pair available range
Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

EN 50288-7 RE-2X(St)Y CWB Multipair Instrumentation Cable is an instrumentation cable construction for marshalling cabinets, DCS racks, junction boxes and multi-loop field instrument wiring, combining XLPE insulation, PVC sheath, copper wire braid screen for emc protection and mechanical stability and a protected installation profile.

  • Process control signal transmission
  • Petrochemical and refinery instrumentation
  • Power station monitoring and control
  • DCS, PLC, marshalling cabinet and junction box wiring
  • marshalling cabinets, DCS racks, junction boxes and multi-loop field instrument wiring

Cable Construction

  • Bare or tinned annealed copper conductor, Class 1 (solid), Class 2 (stranded) or Class 5 (flexible) as specified
  • XLPE insulated pairs with identification to cable schedule
  • Cabled elements laid up with suitable fillers
  • Copper wire braid screen for EMC protection and mechanical stability
  • Separator or bedding tape as required by construction
  • standard
  • PVC outer sheath with required cable marking

Specifications

Select a cable size.

Each row below is a complete specification sheet — 28 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

RE-2X(St)Y CWB Multipair specification references

Each row is an exact instrumentation cable cable specification sheet. Confirm sheath colour, intrinsic-safety marking, drum length and test documents before quotation.

  • Conductor classClass 1 (solid) / 2 (stranded) / 5 (flexible)
Cable referencePair / triple / core layoutConductor sizeMax DC resistance at 20 °CMutual capacitanceL/R ratioOD guideWeight guide
UEC-EN50288-7-XLPE-PVC-CWB-MULTIPAIR-2PAIR-0P5MM2 2 pair 0.5 mm²2 pair0.5 mm²39.39 Ω/km115 pF/m guide25 uH/ohm8.8 mm101 kg/km
UEC-EN50288-7-XLPE-PVC-CWB-MULTIPAIR-2PAIR-0P75MM2 2 pair 0.75 mm²2 pair0.75 mm²26.8 Ω/km115 pF/m guide25 uH/ohm9.0 mm110 kg/km
UEC-EN50288-7-XLPE-PVC-CWB-MULTIPAIR-2PAIR-1P0MM2 2 pair 1.0 mm²2 pair1.0 mm²19.7 Ω/km115 pF/m guide40 uH/ohm9.2 mm119 kg/km
UEC-EN50288-7-XLPE-PVC-CWB-MULTIPAIR-2PAIR-1P5MM2 2 pair 1.5 mm²2 pair1.5 mm²13.43 Ω/km115 pF/m guide40 uH/ohm9.4 mm136 kg/km
UEC-EN50288-7-XLPE-PVC-CWB-MULTIPAIR-5PAIR-0P5MM2 5 pair 0.5 mm²5 pair0.5 mm²39.39 Ω/km115 pF/m guide25 uH/ohm10.2 mm135 kg/km
UEC-EN50288-7-XLPE-PVC-CWB-MULTIPAIR-5PAIR-0P75MM2 5 pair 0.75 mm²5 pair0.75 mm²26.8 Ω/km115 pF/m guide25 uH/ohm10.3 mm157 kg/km
UEC-EN50288-7-XLPE-PVC-CWB-MULTIPAIR-5PAIR-1P0MM2 5 pair 1.0 mm²5 pair1.0 mm²19.7 Ω/km120 pF/m guide40 uH/ohm10.5 mm180 kg/km
UEC-EN50288-7-XLPE-PVC-CWB-MULTIPAIR-5PAIR-1P5MM2 5 pair 1.5 mm²5 pair1.5 mm²13.43 Ω/km120 pF/m guide40 uH/ohm10.7 mm224 kg/km
UEC-EN50288-7-XLPE-PVC-CWB-MULTIPAIR-10PAIR-0P5MM2 10 pair 0.5 mm²10 pair0.5 mm²39.39 Ω/km115 pF/m guide25 uH/ohm11.7 mm192 kg/km
UEC-EN50288-7-XLPE-PVC-CWB-MULTIPAIR-10PAIR-0P75MM2 10 pair 0.75 mm²10 pair0.75 mm²26.8 Ω/km115 pF/m guide25 uH/ohm11.8 mm237 kg/km
UEC-EN50288-7-XLPE-PVC-CWB-MULTIPAIR-10PAIR-1P0MM2 10 pair 1.0 mm²10 pair1.0 mm²19.7 Ω/km120 pF/m guide40 uH/ohm12.0 mm281 kg/km
UEC-EN50288-7-XLPE-PVC-CWB-MULTIPAIR-10PAIR-1P5MM2 10 pair 1.5 mm²10 pair1.5 mm²13.43 Ω/km120 pF/m guide40 uH/ohm12.2 mm370 kg/km
UEC-EN50288-7-XLPE-PVC-CWB-MULTIPAIR-15PAIR-0P5MM2 15 pair 0.5 mm²15 pair0.5 mm²39.39 Ω/km115 pF/m guide25 uH/ohm12.8 mm249 kg/km
UEC-EN50288-7-XLPE-PVC-CWB-MULTIPAIR-15PAIR-0P75MM2 15 pair 0.75 mm²15 pair0.75 mm²26.8 Ω/km115 pF/m guide25 uH/ohm13.0 mm316 kg/km
UEC-EN50288-7-XLPE-PVC-CWB-MULTIPAIR-15PAIR-1P0MM2 15 pair 1.0 mm²15 pair1.0 mm²19.7 Ω/km120 pF/m guide40 uH/ohm13.1 mm383 kg/km
UEC-EN50288-7-XLPE-PVC-CWB-MULTIPAIR-15PAIR-1P5MM2 15 pair 1.5 mm²15 pair1.5 mm²13.43 Ω/km120 pF/m guide40 uH/ohm13.4 mm516 kg/km
UEC-EN50288-7-XLPE-PVC-CWB-MULTIPAIR-20PAIR-0P5MM2 20 pair 0.5 mm²20 pair0.5 mm²39.39 Ω/km115 pF/m guide25 uH/ohm13.8 mm306 kg/km
UEC-EN50288-7-XLPE-PVC-CWB-MULTIPAIR-20PAIR-0P75MM2 20 pair 0.75 mm²20 pair0.75 mm²26.8 Ω/km115 pF/m guide25 uH/ohm14.0 mm395 kg/km
UEC-EN50288-7-XLPE-PVC-CWB-MULTIPAIR-20PAIR-1P0MM2 20 pair 1.0 mm²20 pair1.0 mm²19.7 Ω/km120 pF/m guide40 uH/ohm14.1 mm484 kg/km
UEC-EN50288-7-XLPE-PVC-CWB-MULTIPAIR-20PAIR-1P5MM2 20 pair 1.5 mm²20 pair1.5 mm²13.43 Ω/km120 pF/m guide40 uH/ohm14.4 mm662 kg/km
UEC-EN50288-7-XLPE-PVC-CWB-MULTIPAIR-30PAIR-0P5MM2 30 pair 0.5 mm²30 pair0.5 mm²39.39 Ω/km115 pF/m guide25 uH/ohm15.4 mm420 kg/km
UEC-EN50288-7-XLPE-PVC-CWB-MULTIPAIR-30PAIR-0P75MM2 30 pair 0.75 mm²30 pair0.75 mm²26.8 Ω/km115 pF/m guide25 uH/ohm15.6 mm554 kg/km
UEC-EN50288-7-XLPE-PVC-CWB-MULTIPAIR-30PAIR-1P0MM2 30 pair 1.0 mm²30 pair1.0 mm²19.7 Ω/km120 pF/m guide40 uH/ohm15.7 mm687 kg/km
UEC-EN50288-7-XLPE-PVC-CWB-MULTIPAIR-30PAIR-1P5MM2 30 pair 1.5 mm²30 pair1.5 mm²13.43 Ω/km120 pF/m guide40 uH/ohm16.0 mm954 kg/km
UEC-EN50288-7-XLPE-PVC-CWB-MULTIPAIR-50PAIR-0P5MM2 50 pair 0.5 mm²50 pair0.5 mm²39.39 Ω/km115 pF/m guide25 uH/ohm18.0 mm648 kg/km
UEC-EN50288-7-XLPE-PVC-CWB-MULTIPAIR-50PAIR-0P75MM2 50 pair 0.75 mm²50 pair0.75 mm²26.8 Ω/km115 pF/m guide25 uH/ohm18.2 mm871 kg/km
UEC-EN50288-7-XLPE-PVC-CWB-MULTIPAIR-50PAIR-1P0MM2 50 pair 1.0 mm²50 pair1.0 mm²19.7 Ω/km120 pF/m guide40 uH/ohm18.3 mm1093 kg/km
UEC-EN50288-7-XLPE-PVC-CWB-MULTIPAIR-50PAIR-1P5MM2 50 pair 1.5 mm²50 pair1.5 mm²13.43 Ω/km120 pF/m guide40 uH/ohm18.6 mm1538 kg/km
Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.

Request Quote →
