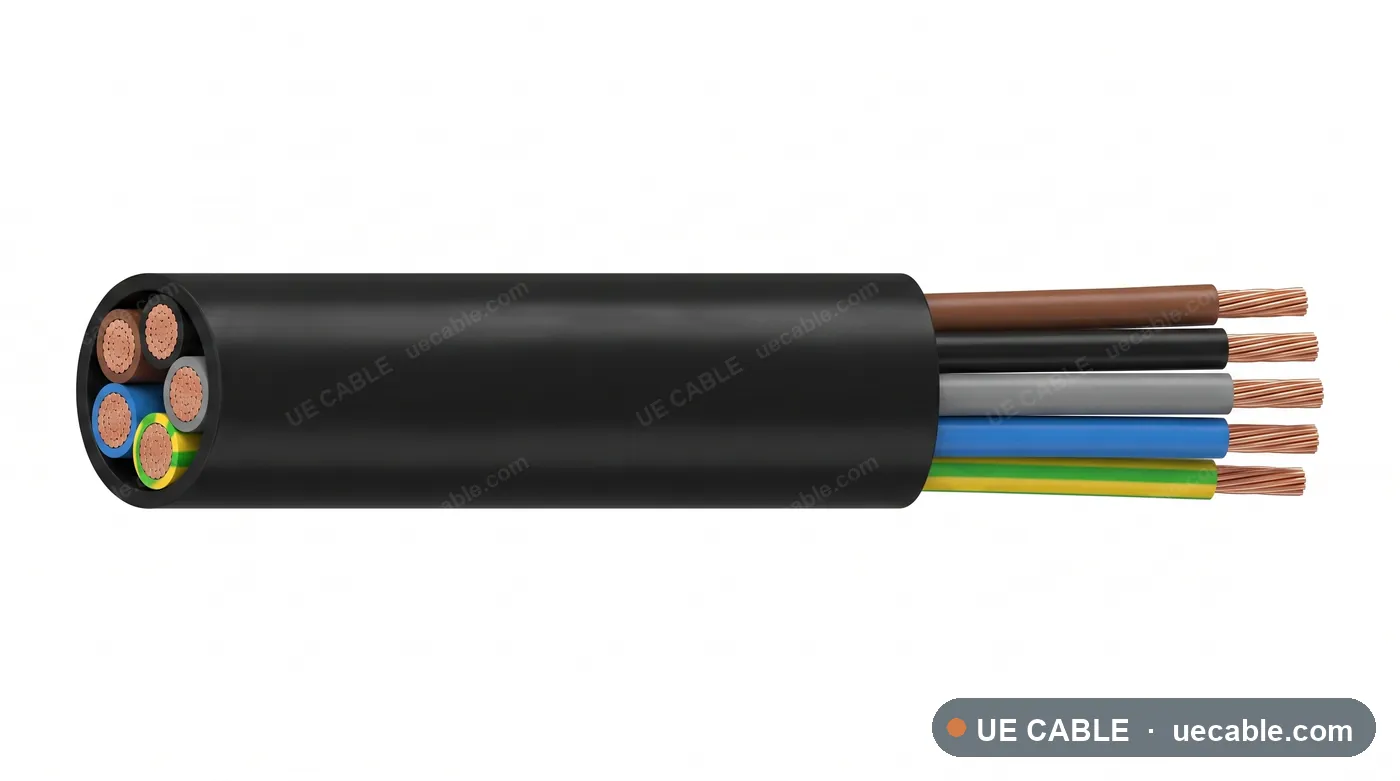

Direct Burial Sunlight Resistant Tray Cable

Direct Burial Sunlight Resistant Tray Cable is a tray cable construction for outdoor tray, direct burial, petrochemical plants, using stranded bare copper conductor, xhhw-2 or pvc nylon insulation and sunlight, oil and direct-burial rated pvc jacket.

Standard
UL 1277
Voltage class
600 V
Temperature class
90 °C dry / 75 °C wet guide
Conductor
Stranded bare copper conductor
Insulation / jacket
Sunlight, oil and direct-burial rated PVC jacket
Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

Direct Burial Sunlight Resistant Tray Cable is a tray cable construction for outdoor tray, direct burial, petrochemical plants, using stranded bare copper conductor, xhhw-2 or pvc nylon insulation and sunlight, oil and direct-burial rated pvc jacket.

  • Outdoor tray
  • Direct burial
  • Petrochemical plants
  • Utilities

Cable Construction

  • Stranded bare copper conductor
  • XHHW-2 or PVC nylon insulation
  • Sunlight, oil and direct-burial rated PVC jacket

Specifications

Select a cable size.

Each row below is a complete specification sheet — 25 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

Direct burial tray cable references

Each row is an exact tray cable cable specification sheet. Shared UL/CSA rating, jacket and installation data are listed above.

  • Tray cable dutyOutdoor direct-burial tray cable
  • Circuit typeDirect burial tray
  • Voltage class600 V
Cable referenceCore / pair designConductor sizeMax DC resistance at 20 °COD guide
Direct burial tray cable 600 V Outdoor direct-burial tray cable Direct burial tray 3 core 14 AWG / 2.08 mm²3 core14 AWG / 2.08 mm²8.89 Ω/km14.1 mm
Direct burial tray cable 600 V Outdoor direct-burial tray cable Direct burial tray 3 core 12 AWG / 3.31 mm²3 core12 AWG / 3.31 mm²5.59 Ω/km14.7 mm
Direct burial tray cable 600 V Outdoor direct-burial tray cable Direct burial tray 3 core 10 AWG / 5.26 mm²3 core10 AWG / 5.26 mm²3.52 Ω/km15.5 mm
Direct burial tray cable 600 V Outdoor direct-burial tray cable Direct burial tray 3 core 8 AWG / 8.37 mm²3 core8 AWG / 8.37 mm²2.21 Ω/km16.5 mm
Direct burial tray cable 600 V Outdoor direct-burial tray cable Direct burial tray 3 core 6 AWG / 13.3 mm²3 core6 AWG / 13.3 mm²1.39 Ω/km17.8 mm
Direct burial tray cable 600 V Outdoor direct-burial tray cable Direct burial tray 4 core 14 AWG / 2.08 mm²4 core14 AWG / 2.08 mm²8.89 Ω/km14.6 mm
Direct burial tray cable 600 V Outdoor direct-burial tray cable Direct burial tray 4 core 12 AWG / 3.31 mm²4 core12 AWG / 3.31 mm²5.59 Ω/km15.2 mm
Direct burial tray cable 600 V Outdoor direct-burial tray cable Direct burial tray 4 core 10 AWG / 5.26 mm²4 core10 AWG / 5.26 mm²3.52 Ω/km16.0 mm
Direct burial tray cable 600 V Outdoor direct-burial tray cable Direct burial tray 4 core 8 AWG / 8.37 mm²4 core8 AWG / 8.37 mm²2.21 Ω/km17.0 mm
Direct burial tray cable 600 V Outdoor direct-burial tray cable Direct burial tray 4 core 6 AWG / 13.3 mm²4 core6 AWG / 13.3 mm²1.39 Ω/km18.3 mm
Direct burial tray cable 600 V Outdoor direct-burial tray cable Direct burial tray 5 core 14 AWG / 2.08 mm²5 core14 AWG / 2.08 mm²8.89 Ω/km15.0 mm
Direct burial tray cable 600 V Outdoor direct-burial tray cable Direct burial tray 5 core 12 AWG / 3.31 mm²5 core12 AWG / 3.31 mm²5.59 Ω/km15.6 mm
Direct burial tray cable 600 V Outdoor direct-burial tray cable Direct burial tray 5 core 10 AWG / 5.26 mm²5 core10 AWG / 5.26 mm²3.52 Ω/km16.4 mm
Direct burial tray cable 600 V Outdoor direct-burial tray cable Direct burial tray 5 core 8 AWG / 8.37 mm²5 core8 AWG / 8.37 mm²2.21 Ω/km17.4 mm
Direct burial tray cable 600 V Outdoor direct-burial tray cable Direct burial tray 5 core 6 AWG / 13.3 mm²5 core6 AWG / 13.3 mm²1.39 Ω/km18.7 mm
Direct burial tray cable 600 V Outdoor direct-burial tray cable Direct burial tray 7 core 14 AWG / 2.08 mm²7 core14 AWG / 2.08 mm²8.89 Ω/km15.7 mm
Direct burial tray cable 600 V Outdoor direct-burial tray cable Direct burial tray 7 core 12 AWG / 3.31 mm²7 core12 AWG / 3.31 mm²5.59 Ω/km16.3 mm
Direct burial tray cable 600 V Outdoor direct-burial tray cable Direct burial tray 7 core 10 AWG / 5.26 mm²7 core10 AWG / 5.26 mm²3.52 Ω/km17.1 mm
Direct burial tray cable 600 V Outdoor direct-burial tray cable Direct burial tray 7 core 8 AWG / 8.37 mm²7 core8 AWG / 8.37 mm²2.21 Ω/km18.1 mm
Direct burial tray cable 600 V Outdoor direct-burial tray cable Direct burial tray 7 core 6 AWG / 13.3 mm²7 core6 AWG / 13.3 mm²1.39 Ω/km19.4 mm
Direct burial tray cable 600 V Outdoor direct-burial tray cable Direct burial tray 12 core 14 AWG / 2.08 mm²12 core14 AWG / 2.08 mm²8.89 Ω/km17.1 mm
Direct burial tray cable 600 V Outdoor direct-burial tray cable Direct burial tray 12 core 12 AWG / 3.31 mm²12 core12 AWG / 3.31 mm²5.59 Ω/km17.8 mm
Direct burial tray cable 600 V Outdoor direct-burial tray cable Direct burial tray 12 core 10 AWG / 5.26 mm²12 core10 AWG / 5.26 mm²3.52 Ω/km18.6 mm
Direct burial tray cable 600 V Outdoor direct-burial tray cable Direct burial tray 12 core 8 AWG / 8.37 mm²12 core8 AWG / 8.37 mm²2.21 Ω/km19.6 mm
Direct burial tray cable 600 V Outdoor direct-burial tray cable Direct burial tray 12 core 6 AWG / 13.3 mm²12 core6 AWG / 13.3 mm²1.39 Ω/km20.9 mm
Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.

Request Quote →
