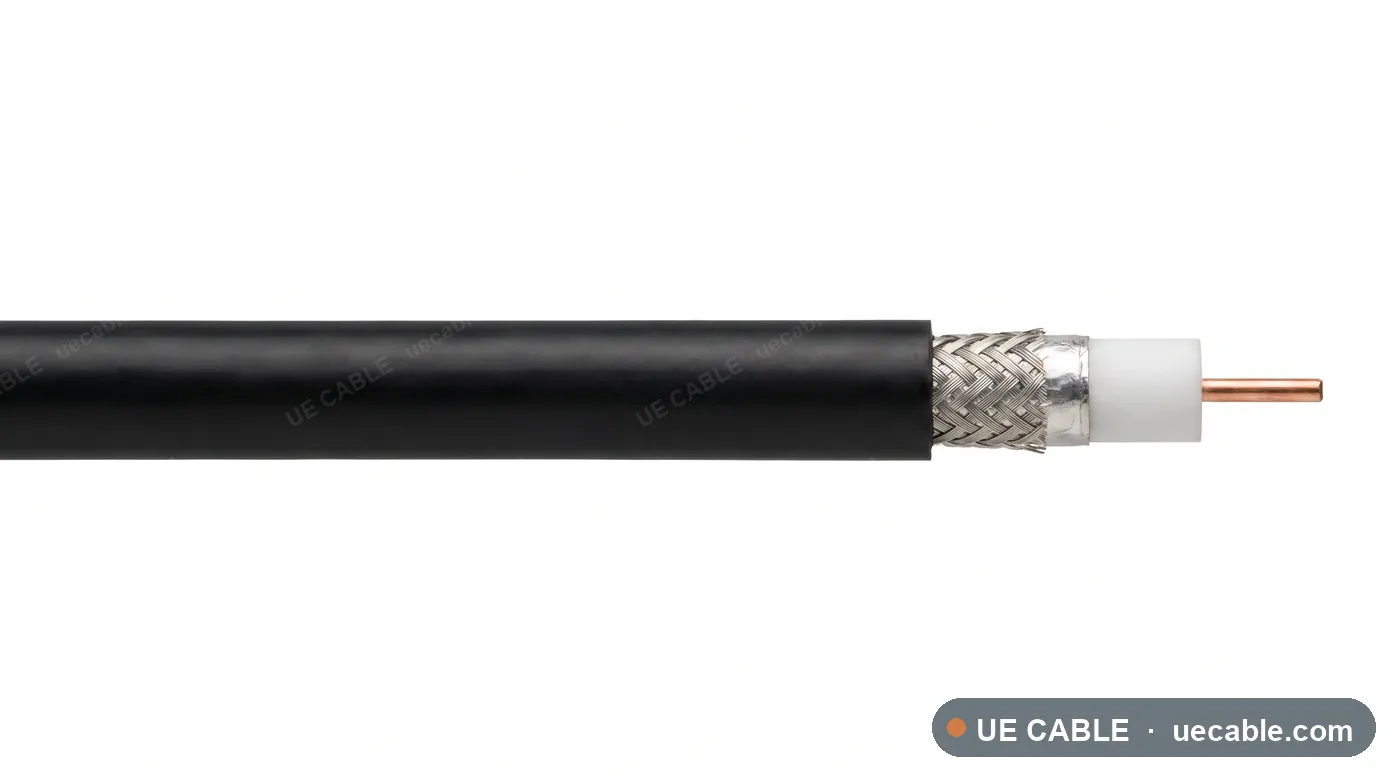

CCTV Composite PVC Coaxial Cable cable construction reference

Composite video, power and control cable

CCTV Composite PVC Coaxial Cable

CCTV Composite Coaxial Cable is a coaxial cable reference for cctv cameras, security camera power, ptz control with impedance, shielding, dielectric and loss data separated in the specification matrix.

Standard
CCTV and low-voltage security cable references
Conductor
Coaxial center conductor plus power/control cores
Insulation / jacket
PVC coaxial jacket
Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

CCTV Composite Coaxial Cable is a coaxial cable reference for cctv cameras, security camera power, ptz control with impedance, shielding, dielectric and loss data separated in the specification matrix.

  • CCTV cameras
  • Security camera power
  • PTZ control
  • Video plus low-voltage circuits

Cable Construction

  • 75 Ω coaxial video element
  • Power and optional control conductors
  • Foil plus braid shield
  • PVC composite jacket

Specifications

Select a cable size.

Each row below is a complete specification sheet — 5 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

Cable Specification Sheets

  • Impedance75 Ω video coax element
  • Center conductorCoax center conductor plus stranded copper power/control cores
  • DielectricFoam PE or solid PE coax dielectric
  • JacketPVC composite jacket
  • Electrical reference75 Ω video element plus low-voltage power/control cores
Cable referenceApplicationCoax referenceShield constructionOD guide
RG59 + 2C 18 AWG CCTV CompositeCCTV video plus camera powerRG59 75 Ω coax + 2C 18 AWG powerFoil plus braid coax screen8.4 mm guide
RG59 + 2C 16 AWG CCTV CompositeLonger CCTV video plus camera powerRG59 75 Ω coax + 2C 16 AWG powerFoil plus braid coax screen9.2 mm guide
RG6 + 2C 18 AWG CCTV CompositeHD CCTV video plus camera powerRG6 75 Ω coax + 2C 18 AWG powerFoil plus braid coax screen9.0 mm guide
RG6 Quad + 2C 18 AWG CCTV CompositeHigh-shield CCTV plus powerRG6 quad shield coax + 2C 18 AWG powerQuad shield coax screen9.8 mm guide
RG59 + 2C 18 AWG + 2C 22 AWGCCTV video, power and controlRG59 coax + power pair + control pairFoil plus braid coax screen10.8 mm guide
Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.

Request Quote →
