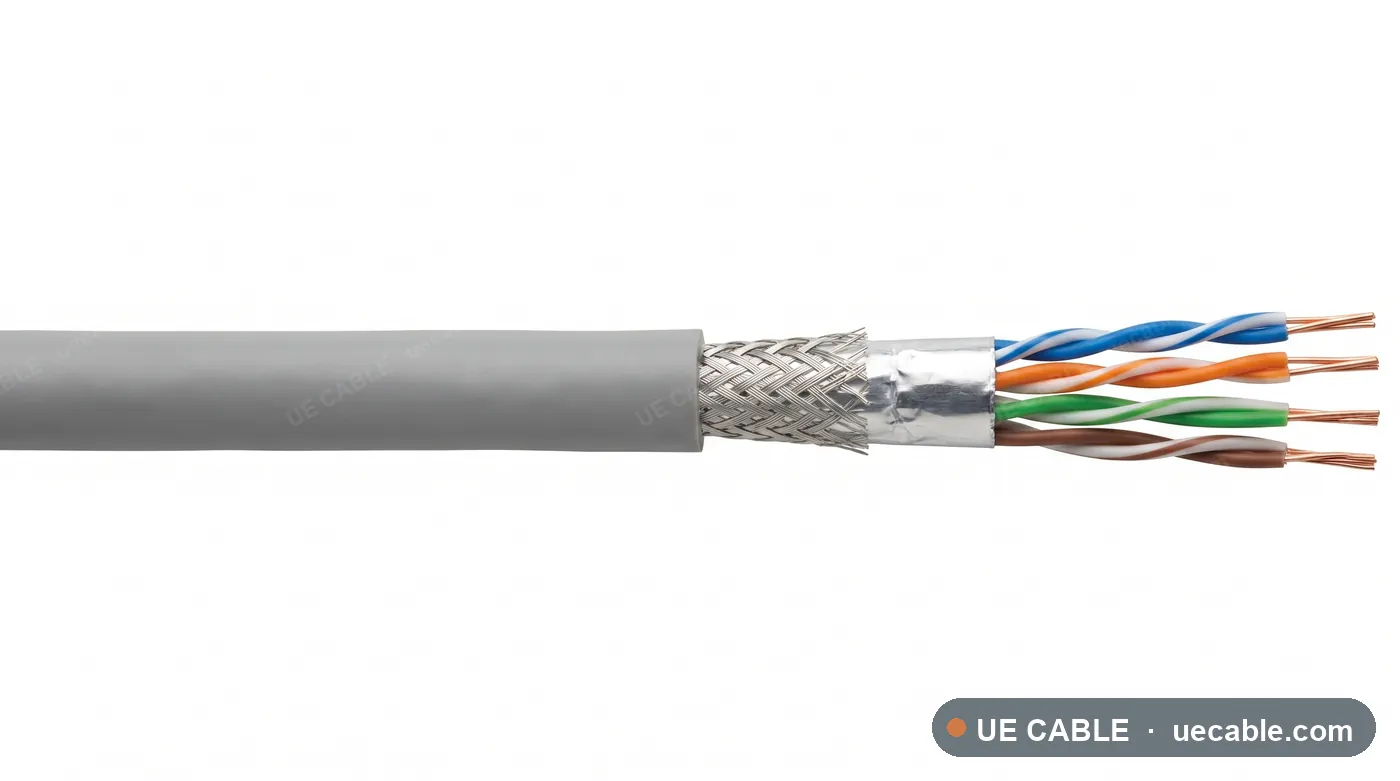

Shielded 10 Gigabit data-center cable
Cat6A S/FTP Data Center LAN Cable is a structured cabling product for Data centers, High-density racks, Switch-to-server links, using Cat6A, 4 x 2 pair, S/FTP shielding and jacket options including LSZH CPR Cca indoor jacket or PVC CMP plenum jacket.
Cable Type Data
Cat6A S/FTP Data Center LAN Cable is a structured cabling product for Data centers, High-density racks, Switch-to-server links, using Cat6A, 4 x 2 pair, S/FTP shielding and jacket options including LSZH CPR Cca indoor jacket or PVC CMP plenum jacket.
Specifications
Each row below is a complete specification sheet — 2 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.
Each row is an exact cable specification sheet. Confirm channel class, installation route, fire rating, shielding, colour, packing length and certification test requirements before quotation.
| Cable reference | Conductor | Max DC resistance at 20 °C | OD guide |
|---|---|---|---|
| Cat6A S/FTP Data Center Cat6A 4 x 2 pair AWG23/1 solid bare copper S/FTP PVC CMP plenum jacket | AWG23/1 solid bare copper | 7.6 Ω/100 m max | 8.2 mm |
| Cat6A S/FTP Data Center Cat6A 4 x 2 pair AWG26/7 stranded bare copper S/FTP PVC CMP plenum jacket | AWG26/7 stranded bare copper | 15.0 Ω/100 m max | 7.7 mm |
Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
