SIHFC Screened Silicone Control Cable

SIHFC Screened Silicone Control Cable is a heat-resistant cable construction for furnace controls, heated process lines, sensor control circuits, using class 5 tinned copper conductor, silicone rubber core insulation, tinned copper braid screen and silicone rubber outer sheath.

Standard: VDE / IEC silicone control cable reference
Voltage class: 300/500 V
Temperature class: -60 °C to +180 °C flexible control service
Conductor: Class 5 tinned copper conductor
Insulation / jacket: Silicone rubber outer sheath

Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

Furnace controls
Heated process lines
Sensor control circuits
Machine tools

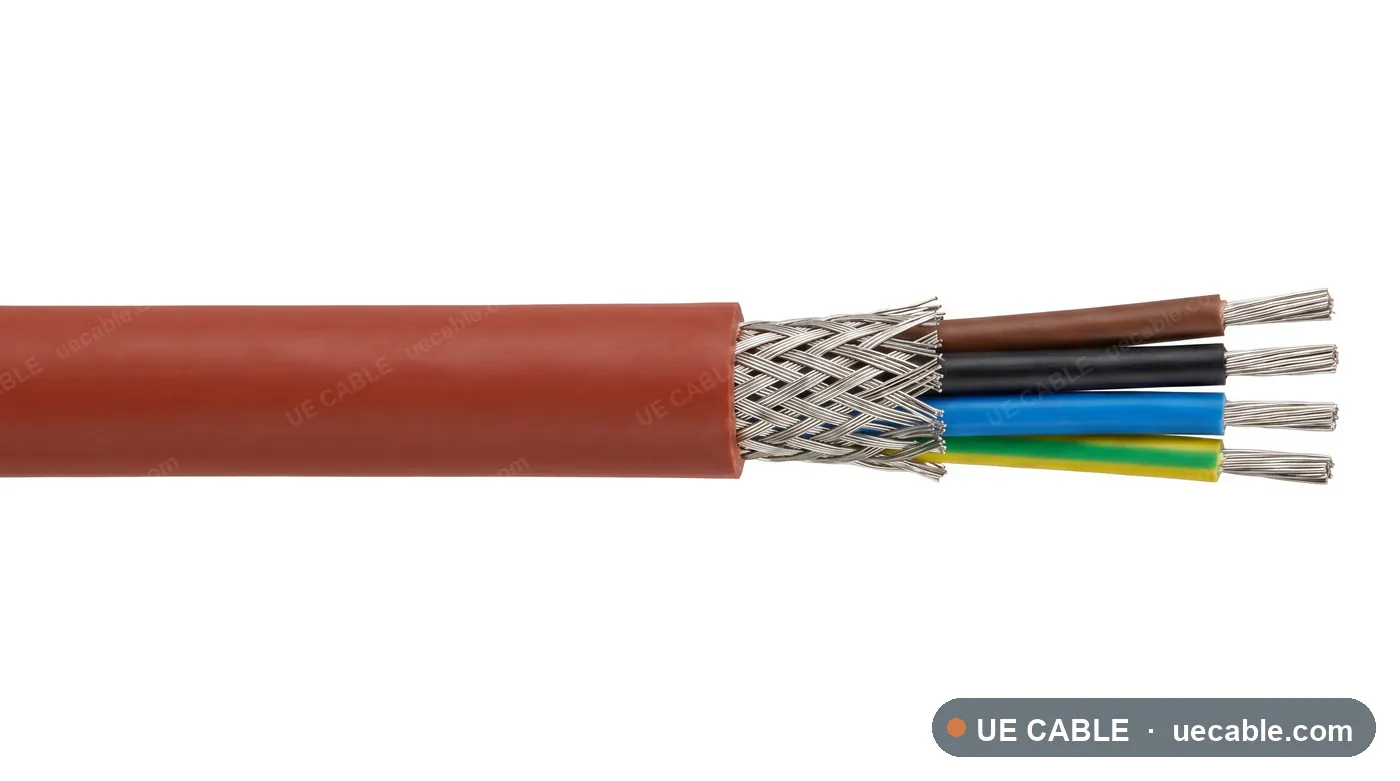

Cable Construction

Class 5 tinned copper conductor
Silicone rubber core insulation
Tinned copper braid screen
Silicone rubber outer sheath

Specifications

Select a cable size.

Each row below is a complete specification sheet — 30 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

Screened silicone control cable references

Each row is an exact high-temperature cable cable specification sheet. Shared temperature class, material system and fire behavior are listed above.

Heat dutyEMC-sensitive high-temperature control wiring
Voltage class300/500 V

Cable reference	Core design	Conductor size	Max DC resistance at 20 °C	OD guide	Cable weight
SIHFC 300/500 V EMC-sensitive high-temperature control wiring 2 core 0.5 mm²	2 core	0.5 mm²	37.1 Ω/km	9.4 mm	0.28 kg/m
SIHFC 300/500 V EMC-sensitive high-temperature control wiring 2 core 0.75 mm²	2 core	0.75 mm²	24.7 Ω/km	9.7 mm	0.29 kg/m
SIHFC 300/500 V EMC-sensitive high-temperature control wiring 2 core 1.0 mm²	2 core	1.0 mm²	18.5 Ω/km	9.9 mm	0.29 kg/m
SIHFC 300/500 V EMC-sensitive high-temperature control wiring 2 core 1.5 mm²	2 core	1.5 mm²	12.7 Ω/km	10.2 mm	0.30 kg/m
SIHFC 300/500 V EMC-sensitive high-temperature control wiring 2 core 2.5 mm²	2 core	2.5 mm²	7.6 Ω/km	10.7 mm	0.33 kg/m
SIHFC 300/500 V EMC-sensitive high-temperature control wiring 3 core 0.5 mm²	3 core	0.5 mm²	37.1 Ω/km	10.1 mm	0.29 kg/m
SIHFC 300/500 V EMC-sensitive high-temperature control wiring 3 core 0.75 mm²	3 core	0.75 mm²	24.7 Ω/km	10.3 mm	0.29 kg/m
SIHFC 300/500 V EMC-sensitive high-temperature control wiring 3 core 1.0 mm²	3 core	1.0 mm²	18.5 Ω/km	10.5 mm	0.30 kg/m
SIHFC 300/500 V EMC-sensitive high-temperature control wiring 3 core 1.5 mm²	3 core	1.5 mm²	12.7 Ω/km	10.9 mm	0.32 kg/m
SIHFC 300/500 V EMC-sensitive high-temperature control wiring 3 core 2.5 mm²	3 core	2.5 mm²	7.6 Ω/km	11.4 mm	0.35 kg/m
SIHFC 300/500 V EMC-sensitive high-temperature control wiring 4 core 0.5 mm²	4 core	0.5 mm²	37.1 Ω/km	10.7 mm	0.29 kg/m
SIHFC 300/500 V EMC-sensitive high-temperature control wiring 4 core 0.75 mm²	4 core	0.75 mm²	24.7 Ω/km	10.9 mm	0.30 kg/m
SIHFC 300/500 V EMC-sensitive high-temperature control wiring 4 core 1.0 mm²	4 core	1.0 mm²	18.5 Ω/km	11.1 mm	0.31 kg/m
SIHFC 300/500 V EMC-sensitive high-temperature control wiring 4 core 1.5 mm²	4 core	1.5 mm²	12.7 Ω/km	11.4 mm	0.34 kg/m
SIHFC 300/500 V EMC-sensitive high-temperature control wiring 4 core 2.5 mm²	4 core	2.5 mm²	7.6 Ω/km	12.0 mm	0.38 kg/m
SIHFC 300/500 V EMC-sensitive high-temperature control wiring 5 core 0.5 mm²	5 core	0.5 mm²	37.1 Ω/km	11.2 mm	0.30 kg/m
SIHFC 300/500 V EMC-sensitive high-temperature control wiring 5 core 0.75 mm²	5 core	0.75 mm²	24.7 Ω/km	11.4 mm	0.31 kg/m
SIHFC 300/500 V EMC-sensitive high-temperature control wiring 5 core 1.0 mm²	5 core	1.0 mm²	18.5 Ω/km	11.6 mm	0.33 kg/m
SIHFC 300/500 V EMC-sensitive high-temperature control wiring 5 core 1.5 mm²	5 core	1.5 mm²	12.7 Ω/km	11.9 mm	0.35 kg/m
SIHFC 300/500 V EMC-sensitive high-temperature control wiring 5 core 2.5 mm²	5 core	2.5 mm²	7.6 Ω/km	12.5 mm	0.41 kg/m
SIHFC 300/500 V EMC-sensitive high-temperature control wiring 7 core 0.5 mm²	7 core	0.5 mm²	37.1 Ω/km	12.0 mm	0.31 kg/m
SIHFC 300/500 V EMC-sensitive high-temperature control wiring 7 core 0.75 mm²	7 core	0.75 mm²	24.7 Ω/km	12.3 mm	0.33 kg/m
SIHFC 300/500 V EMC-sensitive high-temperature control wiring 7 core 1.0 mm²	7 core	1.0 mm²	18.5 Ω/km	12.5 mm	0.35 kg/m
SIHFC 300/500 V EMC-sensitive high-temperature control wiring 7 core 1.5 mm²	7 core	1.5 mm²	12.7 Ω/km	12.8 mm	0.39 kg/m
SIHFC 300/500 V EMC-sensitive high-temperature control wiring 7 core 2.5 mm²	7 core	2.5 mm²	7.6 Ω/km	13.3 mm	0.46 kg/m
SIHFC 300/500 V EMC-sensitive high-temperature control wiring 12 core 0.5 mm²	12 core	0.5 mm²	37.1 Ω/km	13.7 mm	0.34 kg/m
SIHFC 300/500 V EMC-sensitive high-temperature control wiring 12 core 0.75 mm²	12 core	0.75 mm²	24.7 Ω/km	14.0 mm	0.37 kg/m
SIHFC 300/500 V EMC-sensitive high-temperature control wiring 12 core 1.0 mm²	12 core	1.0 mm²	18.5 Ω/km	14.2 mm	0.40 kg/m
SIHFC 300/500 V EMC-sensitive high-temperature control wiring 12 core 1.5 mm²	12 core	1.5 mm²	12.7 Ω/km	14.5 mm	0.47 kg/m
SIHFC 300/500 V EMC-sensitive high-temperature control wiring 12 core 2.5 mm²	12 core	2.5 mm²	7.6 Ω/km	15.0 mm	0.60 kg/m

Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
