SIHF Multicore Silicone Control Cable

SIHF Multicore Silicone Control Cable is a heat-resistant cable construction for oven controls, lighting systems, hvac equipment, using class 5 tinned copper conductor, silicone rubber core insulation and silicone rubber outer sheath.

Standard: VDE / IEC silicone control cable reference
Voltage class: 300/500 V
Temperature class: -60 °C to +180 °C flexible control service
Conductor: Class 5 tinned copper conductor
Insulation / jacket: Silicone rubber outer sheath

Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

Oven controls
Lighting systems
HVAC equipment
Machine control

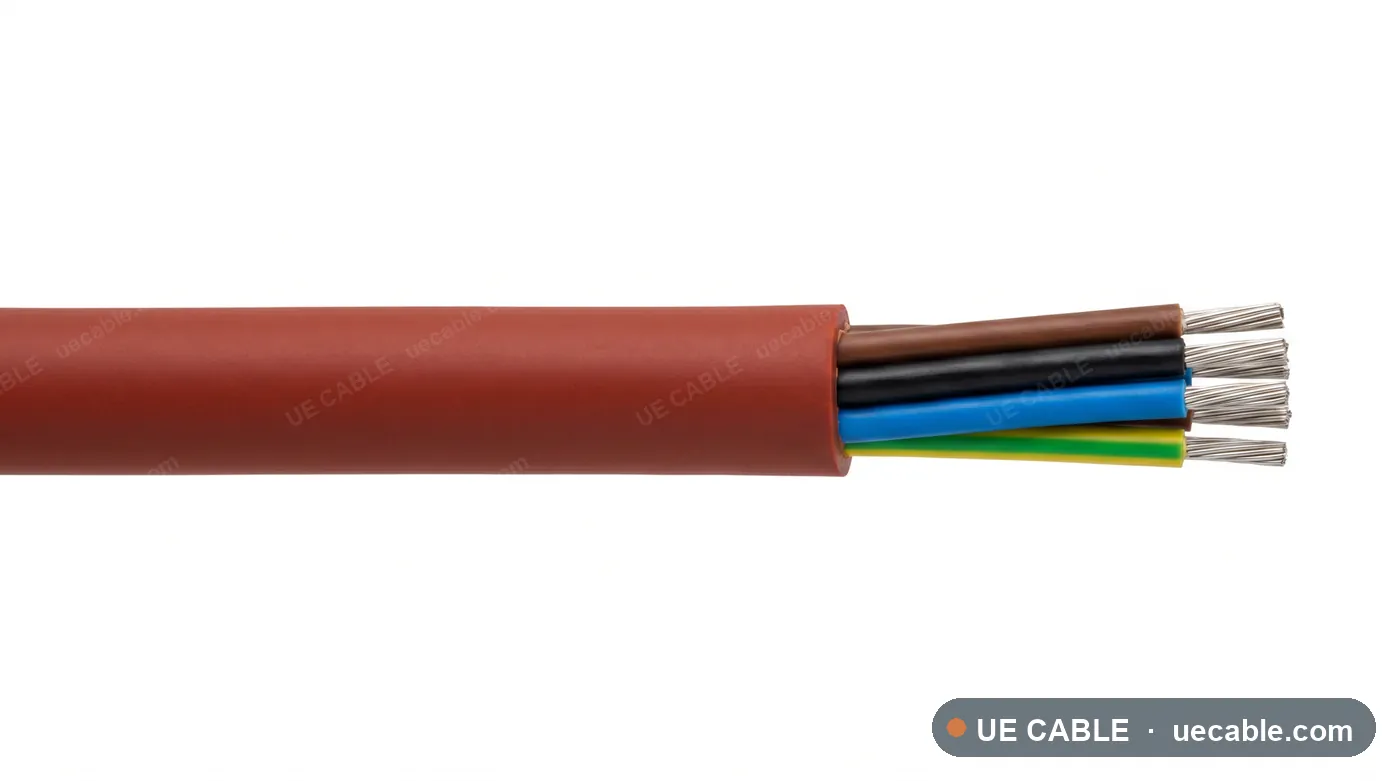

Cable Construction

Class 5 tinned copper conductor
Silicone rubber core insulation
Silicone rubber outer sheath

Specifications

Select a cable size.

Each row below is a complete specification sheet — 40 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

SIHF multicore silicone control cable references

Each row is an exact high-temperature cable cable specification sheet. Shared temperature class, material system and fire behavior are listed above.

Heat dutyHigh-temperature control wiring
Voltage class300/500 V

Cable reference	Core design	Conductor size	Max DC resistance at 20 °C	OD guide	Cable weight
SIHF 300/500 V High-temperature control wiring 2 core 0.5 mm²	2 core	0.5 mm²	37.1 Ω/km	8.3 mm	0.17 kg/m
SIHF 300/500 V High-temperature control wiring 2 core 0.75 mm²	2 core	0.75 mm²	24.7 Ω/km	8.6 mm	0.18 kg/m
SIHF 300/500 V High-temperature control wiring 2 core 1.0 mm²	2 core	1.0 mm²	18.5 Ω/km	8.8 mm	0.18 kg/m
SIHF 300/500 V High-temperature control wiring 2 core 1.5 mm²	2 core	1.5 mm²	12.7 Ω/km	9.1 mm	0.19 kg/m
SIHF 300/500 V High-temperature control wiring 2 core 2.5 mm²	2 core	2.5 mm²	7.6 Ω/km	9.6 mm	0.21 kg/m
SIHF 300/500 V High-temperature control wiring 3 core 0.5 mm²	3 core	0.5 mm²	37.1 Ω/km	9.0 mm	0.18 kg/m
SIHF 300/500 V High-temperature control wiring 3 core 0.75 mm²	3 core	0.75 mm²	24.7 Ω/km	9.2 mm	0.18 kg/m
SIHF 300/500 V High-temperature control wiring 3 core 1.0 mm²	3 core	1.0 mm²	18.5 Ω/km	9.4 mm	0.19 kg/m
SIHF 300/500 V High-temperature control wiring 3 core 1.5 mm²	3 core	1.5 mm²	12.7 Ω/km	9.8 mm	0.21 kg/m
SIHF 300/500 V High-temperature control wiring 3 core 2.5 mm²	3 core	2.5 mm²	7.6 Ω/km	10.3 mm	0.24 kg/m
SIHF 300/500 V High-temperature control wiring 4 core 0.5 mm²	4 core	0.5 mm²	37.1 Ω/km	9.6 mm	0.18 kg/m
SIHF 300/500 V High-temperature control wiring 4 core 0.75 mm²	4 core	0.75 mm²	24.7 Ω/km	9.8 mm	0.19 kg/m
SIHF 300/500 V High-temperature control wiring 4 core 1.0 mm²	4 core	1.0 mm²	18.5 Ω/km	10.0 mm	0.20 kg/m
SIHF 300/500 V High-temperature control wiring 4 core 1.5 mm²	4 core	1.5 mm²	12.7 Ω/km	10.3 mm	0.23 kg/m
SIHF 300/500 V High-temperature control wiring 4 core 2.5 mm²	4 core	2.5 mm²	7.6 Ω/km	10.9 mm	0.27 kg/m
SIHF 300/500 V High-temperature control wiring 5 core 0.5 mm²	5 core	0.5 mm²	37.1 Ω/km	10.1 mm	0.19 kg/m
SIHF 300/500 V High-temperature control wiring 5 core 0.75 mm²	5 core	0.75 mm²	24.7 Ω/km	10.3 mm	0.20 kg/m
SIHF 300/500 V High-temperature control wiring 5 core 1.0 mm²	5 core	1.0 mm²	18.5 Ω/km	10.5 mm	0.21 kg/m
SIHF 300/500 V High-temperature control wiring 5 core 1.5 mm²	5 core	1.5 mm²	12.7 Ω/km	10.8 mm	0.24 kg/m
SIHF 300/500 V High-temperature control wiring 5 core 2.5 mm²	5 core	2.5 mm²	7.6 Ω/km	11.4 mm	0.30 kg/m
SIHF 300/500 V High-temperature control wiring 7 core 0.5 mm²	7 core	0.5 mm²	37.1 Ω/km	10.9 mm	0.20 kg/m
SIHF 300/500 V High-temperature control wiring 7 core 0.75 mm²	7 core	0.75 mm²	24.7 Ω/km	11.2 mm	0.22 kg/m
SIHF 300/500 V High-temperature control wiring 7 core 1.0 mm²	7 core	1.0 mm²	18.5 Ω/km	11.4 mm	0.24 kg/m
SIHF 300/500 V High-temperature control wiring 7 core 1.5 mm²	7 core	1.5 mm²	12.7 Ω/km	11.7 mm	0.28 kg/m
SIHF 300/500 V High-temperature control wiring 7 core 2.5 mm²	7 core	2.5 mm²	7.6 Ω/km	12.2 mm	0.35 kg/m
SIHF 300/500 V High-temperature control wiring 12 core 0.5 mm²	12 core	0.5 mm²	37.1 Ω/km	12.6 mm	0.23 kg/m
SIHF 300/500 V High-temperature control wiring 12 core 0.75 mm²	12 core	0.75 mm²	24.7 Ω/km	12.9 mm	0.26 kg/m
SIHF 300/500 V High-temperature control wiring 12 core 1.0 mm²	12 core	1.0 mm²	18.5 Ω/km	13.1 mm	0.29 kg/m
SIHF 300/500 V High-temperature control wiring 12 core 1.5 mm²	12 core	1.5 mm²	12.7 Ω/km	13.4 mm	0.36 kg/m
SIHF 300/500 V High-temperature control wiring 12 core 2.5 mm²	12 core	2.5 mm²	7.6 Ω/km	13.9 mm	0.49 kg/m
SIHF 300/500 V High-temperature control wiring 18 core 0.5 mm²	18 core	0.5 mm²	37.1 Ω/km	14.3 mm	0.26 kg/m
SIHF 300/500 V High-temperature control wiring 18 core 0.75 mm²	18 core	0.75 mm²	24.7 Ω/km	14.5 mm	0.31 kg/m
SIHF 300/500 V High-temperature control wiring 18 core 1.0 mm²	18 core	1.0 mm²	18.5 Ω/km	14.7 mm	0.36 kg/m
SIHF 300/500 V High-temperature control wiring 18 core 1.5 mm²	18 core	1.5 mm²	12.7 Ω/km	15.0 mm	0.46 kg/m
SIHF 300/500 V High-temperature control wiring 18 core 2.5 mm²	18 core	2.5 mm²	7.6 Ω/km	15.6 mm	0.66 kg/m
SIHF 300/500 V High-temperature control wiring 25 core 0.5 mm²	25 core	0.5 mm²	37.1 Ω/km	15.9 mm	0.30 kg/m
SIHF 300/500 V High-temperature control wiring 25 core 0.75 mm²	25 core	0.75 mm²	24.7 Ω/km	16.1 mm	0.37 kg/m
SIHF 300/500 V High-temperature control wiring 25 core 1.0 mm²	25 core	1.0 mm²	18.5 Ω/km	16.3 mm	0.43 kg/m
SIHF 300/500 V High-temperature control wiring 25 core 1.5 mm²	25 core	1.5 mm²	12.7 Ω/km	16.6 mm	0.57 kg/m
SIHF 300/500 V High-temperature control wiring 25 core 2.5 mm²	25 core	2.5 mm²	7.6 Ω/km	17.2 mm	0.85 kg/m

Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
