S180 HT Continuous Flex Silicone Cable

S180 HT Continuous Flex Silicone Cable is a heat-resistant cable construction for heated automation, cable chains, moving machine tools, using extra fine tinned copper conductor, notch-resistant silicone core insulation and high-flex silicone outer sheath.

Standard: Continuous-flex silicone cable reference
Voltage class: 1000 V
Temperature class: Up to +180 °C continuous-flex service
Conductor: Extra fine tinned copper conductor
Insulation / jacket: High-flex silicone outer sheath

Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

Heated automation
Cable chains
Moving machine tools
High-temperature robotics

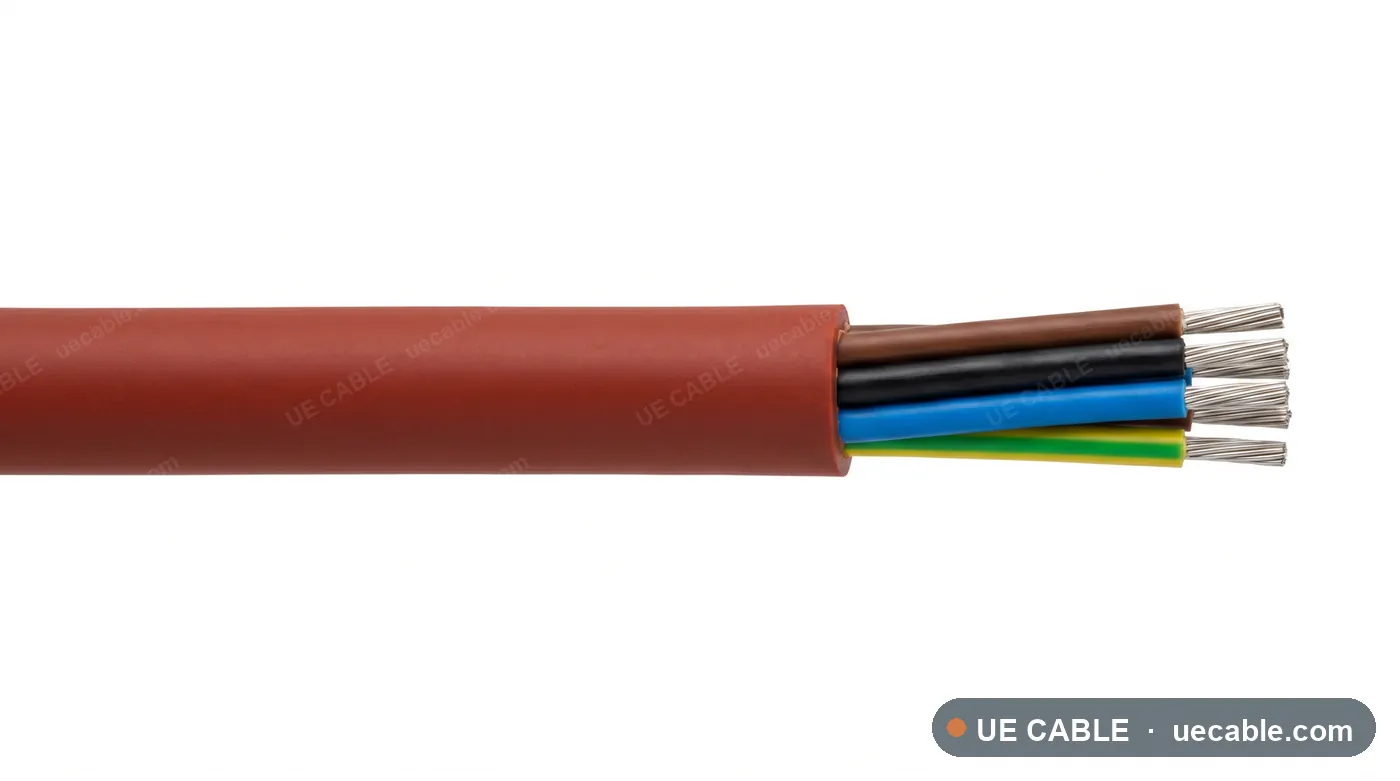

Cable Construction

Extra fine tinned copper conductor
Notch-resistant silicone core insulation
High-flex silicone outer sheath

Specifications

Select a cable size.

Each row below is a complete specification sheet — 30 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

Continuous-flex silicone high-temperature cable references

Each row is an exact high-temperature cable cable specification sheet. Shared temperature class, material system and fire behavior are listed above.

Heat dutyHigh-temperature moving cable route
Voltage class1000 V

Cable reference	Core design	Conductor size	Max DC resistance at 20 °C	OD guide	Cable weight
S180 HT 1000 V High-temperature moving cable route 2 core 0.5 mm²	2 core	0.5 mm²	37.1 Ω/km	8.3 mm	0.17 kg/m
S180 HT 1000 V High-temperature moving cable route 2 core 0.75 mm²	2 core	0.75 mm²	24.7 Ω/km	8.6 mm	0.18 kg/m
S180 HT 1000 V High-temperature moving cable route 2 core 1.0 mm²	2 core	1.0 mm²	18.5 Ω/km	8.8 mm	0.18 kg/m
S180 HT 1000 V High-temperature moving cable route 2 core 1.5 mm²	2 core	1.5 mm²	12.7 Ω/km	9.1 mm	0.19 kg/m
S180 HT 1000 V High-temperature moving cable route 2 core 2.5 mm²	2 core	2.5 mm²	7.6 Ω/km	9.6 mm	0.21 kg/m
S180 HT 1000 V High-temperature moving cable route 3 core 0.5 mm²	3 core	0.5 mm²	37.1 Ω/km	9.0 mm	0.18 kg/m
S180 HT 1000 V High-temperature moving cable route 3 core 0.75 mm²	3 core	0.75 mm²	24.7 Ω/km	9.2 mm	0.18 kg/m
S180 HT 1000 V High-temperature moving cable route 3 core 1.0 mm²	3 core	1.0 mm²	18.5 Ω/km	9.4 mm	0.19 kg/m
S180 HT 1000 V High-temperature moving cable route 3 core 1.5 mm²	3 core	1.5 mm²	12.7 Ω/km	9.8 mm	0.21 kg/m
S180 HT 1000 V High-temperature moving cable route 3 core 2.5 mm²	3 core	2.5 mm²	7.6 Ω/km	10.3 mm	0.24 kg/m
S180 HT 1000 V High-temperature moving cable route 4 core 0.5 mm²	4 core	0.5 mm²	37.1 Ω/km	9.6 mm	0.18 kg/m
S180 HT 1000 V High-temperature moving cable route 4 core 0.75 mm²	4 core	0.75 mm²	24.7 Ω/km	9.8 mm	0.19 kg/m
S180 HT 1000 V High-temperature moving cable route 4 core 1.0 mm²	4 core	1.0 mm²	18.5 Ω/km	10.0 mm	0.20 kg/m
S180 HT 1000 V High-temperature moving cable route 4 core 1.5 mm²	4 core	1.5 mm²	12.7 Ω/km	10.3 mm	0.23 kg/m
S180 HT 1000 V High-temperature moving cable route 4 core 2.5 mm²	4 core	2.5 mm²	7.6 Ω/km	10.9 mm	0.27 kg/m
S180 HT 1000 V High-temperature moving cable route 5 core 0.5 mm²	5 core	0.5 mm²	37.1 Ω/km	10.1 mm	0.19 kg/m
S180 HT 1000 V High-temperature moving cable route 5 core 0.75 mm²	5 core	0.75 mm²	24.7 Ω/km	10.3 mm	0.20 kg/m
S180 HT 1000 V High-temperature moving cable route 5 core 1.0 mm²	5 core	1.0 mm²	18.5 Ω/km	10.5 mm	0.21 kg/m
S180 HT 1000 V High-temperature moving cable route 5 core 1.5 mm²	5 core	1.5 mm²	12.7 Ω/km	10.8 mm	0.24 kg/m
S180 HT 1000 V High-temperature moving cable route 5 core 2.5 mm²	5 core	2.5 mm²	7.6 Ω/km	11.4 mm	0.30 kg/m
S180 HT 1000 V High-temperature moving cable route 7 core 0.5 mm²	7 core	0.5 mm²	37.1 Ω/km	10.9 mm	0.20 kg/m
S180 HT 1000 V High-temperature moving cable route 7 core 0.75 mm²	7 core	0.75 mm²	24.7 Ω/km	11.2 mm	0.22 kg/m
S180 HT 1000 V High-temperature moving cable route 7 core 1.0 mm²	7 core	1.0 mm²	18.5 Ω/km	11.4 mm	0.24 kg/m
S180 HT 1000 V High-temperature moving cable route 7 core 1.5 mm²	7 core	1.5 mm²	12.7 Ω/km	11.7 mm	0.28 kg/m
S180 HT 1000 V High-temperature moving cable route 7 core 2.5 mm²	7 core	2.5 mm²	7.6 Ω/km	12.2 mm	0.35 kg/m
S180 HT 1000 V High-temperature moving cable route 12 core 0.5 mm²	12 core	0.5 mm²	37.1 Ω/km	12.6 mm	0.23 kg/m
S180 HT 1000 V High-temperature moving cable route 12 core 0.75 mm²	12 core	0.75 mm²	24.7 Ω/km	12.9 mm	0.26 kg/m
S180 HT 1000 V High-temperature moving cable route 12 core 1.0 mm²	12 core	1.0 mm²	18.5 Ω/km	13.1 mm	0.29 kg/m
S180 HT 1000 V High-temperature moving cable route 12 core 1.5 mm²	12 core	1.5 mm²	12.7 Ω/km	13.4 mm	0.36 kg/m
S180 HT 1000 V High-temperature moving cable route 12 core 2.5 mm²	12 core	2.5 mm²	7.6 Ω/km	13.9 mm	0.49 kg/m

Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
