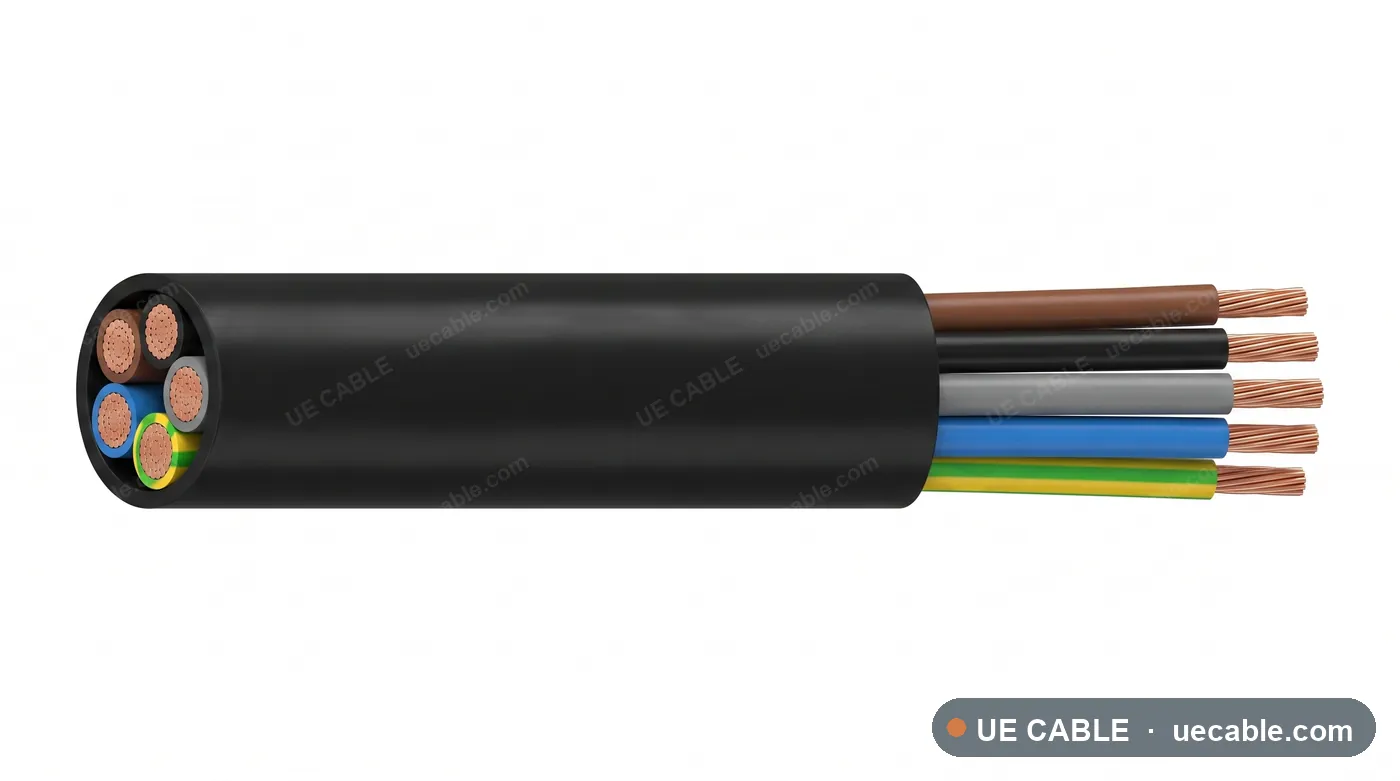

FAA L-823 Secondary Airfield Lighting Lead Cable cable construction reference

Secondary fixture lead cable

FAA L-823 Secondary Airfield Lighting Lead Cable

FAA L-823 Secondary Airfield Lighting Lead Cable is an airport cable construction for runway lamps, taxiway lamps, airfield signs, using flexible tinned copper conductor, rubber or thermoplastic rubber insulation and pcp, tpr or rubber flexible outer sheath.

Standard
FAA L-823 / AC 150/5345-26
Voltage class
600 V / 1 kV connector system
Temperature class
Flexible airfield lead guide
Conductor
Flexible tinned copper conductor
Insulation / jacket
PCP, TPR or rubber flexible outer sheath
Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

FAA L-823 Secondary Airfield Lighting Lead Cable is an airport cable construction for runway lamps, taxiway lamps, airfield signs, using flexible tinned copper conductor, rubber or thermoplastic rubber insulation and pcp, tpr or rubber flexible outer sheath.

  • Runway lamps
  • Taxiway lamps
  • Airfield signs
  • Isolation transformer secondary leads

Cable Construction

  • Flexible tinned copper conductor
  • Rubber or thermoplastic rubber insulation
  • PCP, TPR or rubber flexible outer sheath
  • Fixture lead, isolation transformer secondary and molded connector assembly

Specifications

Select a cable size.

Each row below is a complete specification sheet — 8 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

FAA L-823 secondary lead cable references

Each row is an exact secondary lead cable specification sheet. Lead length is shown as the differentiating field for molded assemblies.

  • Airfield dutySecondary airfield lighting lead
  • Circuit typeLamp, sign and transformer secondary connection
  • FAA / reference typeFAA L-823 secondary lead
  • Conductor size16 AWG / 1.31 mm²
  • Voltage class600 V / 1 kV connector system
  • Insulation wallSecondary lead wall by molded assembly design
  • Max DC resistance at 20 °C14.7 Ω/km
Cable referenceOD guide
FAA L-823 secondary lead 600 V / 1 kV connector system Secondary airfield lighting lead 1 x 2 conductor 16 AWG / 1.31 mm² 31 in lead11.7 mm
FAA L-823 secondary lead 600 V / 1 kV connector system Secondary airfield lighting lead 2 x 1 conductor 16 AWG / 1.31 mm² 31 in lead11.2 mm
FAA L-823 secondary lead 600 V / 1 kV connector system Secondary airfield lighting lead 1 x 2 conductor 16 AWG / 1.31 mm² 48 in lead11.7 mm
FAA L-823 secondary lead 600 V / 1 kV connector system Secondary airfield lighting lead 2 x 1 conductor 16 AWG / 1.31 mm² 48 in lead11.2 mm
FAA L-823 secondary lead 600 V / 1 kV connector system Secondary airfield lighting lead 1 x 2 conductor 16 AWG / 1.31 mm² 72 in lead11.7 mm
FAA L-823 secondary lead 600 V / 1 kV connector system Secondary airfield lighting lead 2 x 1 conductor 16 AWG / 1.31 mm² 72 in lead11.2 mm
FAA L-823 secondary lead 600 V / 1 kV connector system Secondary airfield lighting lead 1 x 2 conductor 16 AWG / 1.31 mm² 120 in lead11.7 mm
FAA L-823 secondary lead 600 V / 1 kV connector system Secondary airfield lighting lead 2 x 1 conductor 16 AWG / 1.31 mm² 120 in lead11.2 mm
Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.

Request Quote →
