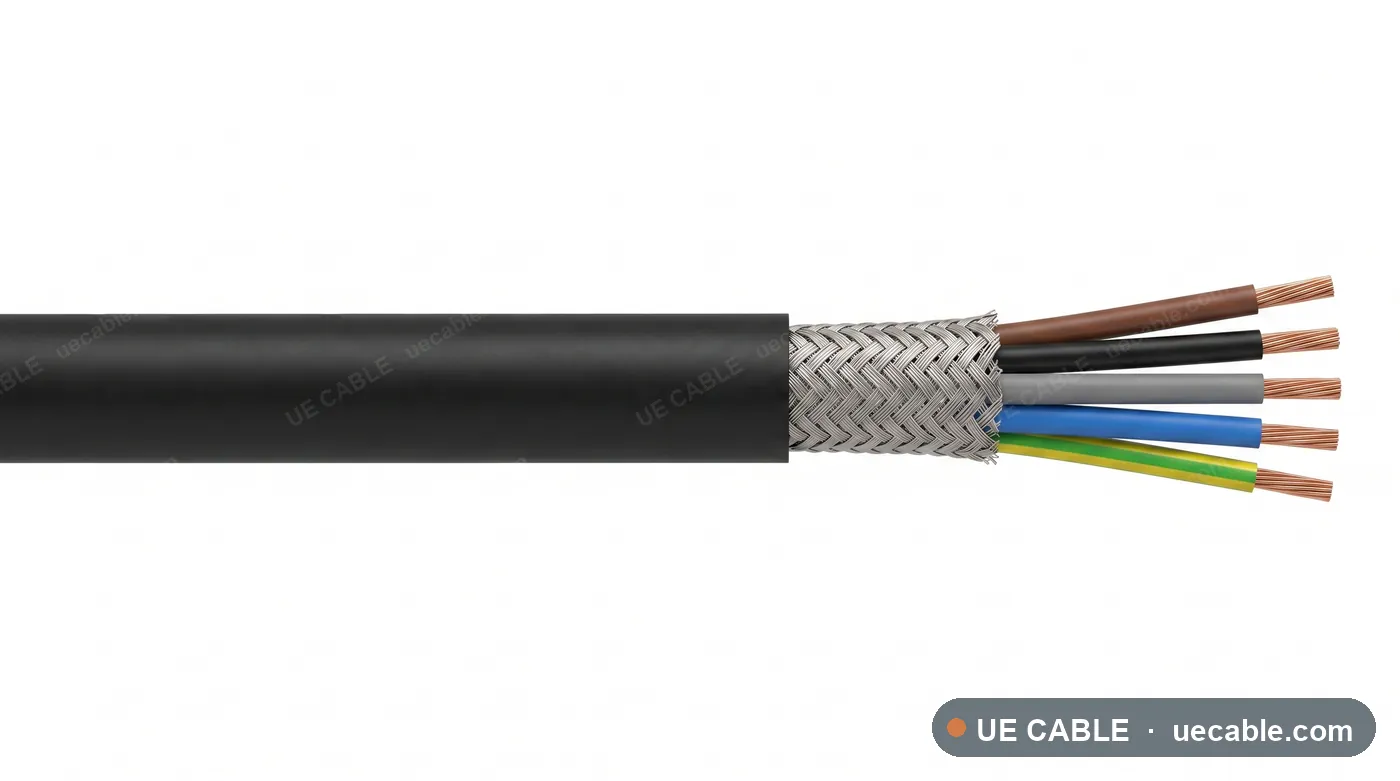

Airport Control And Communication Cable cable construction reference

Airport control and monitoring cable

Airport Control And Communication Cable

Airport Control And Communication Cable is an airport cable construction for airport control systems, monitoring circuits, apron controls, using class 2 or class 5 copper conductor, pvc, pe or lszh control insulation, optional foil or braid screen by signal circuit and pvc, pe or lszh airport outer sheath.

Standard
Airport control cable application reference
Voltage class
300/500 V or 600 V
Temperature class
-20 °C to +70 °C guide
Conductor
Class 2 or Class 5 copper conductor
Insulation / jacket
PVC, PE or LSZH airport outer sheath
Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

Airport Control And Communication Cable is an airport cable construction for airport control systems, monitoring circuits, apron controls, using class 2 or class 5 copper conductor, pvc, pe or lszh control insulation, optional foil or braid screen by signal circuit and pvc, pe or lszh airport outer sheath.

  • Airport control systems
  • Monitoring circuits
  • Apron controls
  • Terminal communication

Cable Construction

  • Class 2 or Class 5 copper conductor
  • PVC, PE or LSZH control insulation
  • Optional foil or braid screen by signal circuit
  • PVC, PE or LSZH airport outer sheath
  • Terminal, apron, control room and monitoring cable routes

Specifications

Select a cable size.

Each row below is a complete specification sheet — 8 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

Airport control and communication cable references

Each row is an exact airport control cable cable specification sheet for terminal, apron and control circuits.

  • Airfield dutyAirport control and signalling
  • Circuit typeControl, monitoring and communication circuit
  • FAA / reference typeAirport control cable reference
  • Voltage class300/500 V or 600 V
  • Insulation wallControl cable wall by voltage class
Cable referenceConductor sizeMax DC resistance at 20 °COD guide
Airport control cable 300/500 V or 600 V Airport control and signalling 2 core 1.5 mm² numbered cores1.5 mm²12.1 Ω/km14.3 mm
Airport control cable 300/500 V or 600 V Airport control and signalling 2 core 2.5 mm² numbered cores2.5 mm²7.41 Ω/km14.8 mm
Airport control cable 300/500 V or 600 V Airport control and signalling 4 core 1.5 mm² numbered cores1.5 mm²12.1 Ω/km15.1 mm
Airport control cable 300/500 V or 600 V Airport control and signalling 4 core 2.5 mm² numbered cores2.5 mm²7.41 Ω/km15.6 mm
Airport control cable 300/500 V or 600 V Airport control and signalling 7 core 1.5 mm² numbered cores1.5 mm²12.1 Ω/km15.9 mm
Airport control cable 300/500 V or 600 V Airport control and signalling 7 core 2.5 mm² numbered cores2.5 mm²7.41 Ω/km16.5 mm
Airport control cable 300/500 V or 600 V Airport control and signalling 12 core 1.5 mm² numbered cores1.5 mm²12.1 Ω/km17.0 mm
Airport control cable 300/500 V or 600 V Airport control and signalling 12 core 2.5 mm² numbered cores2.5 mm²7.41 Ω/km17.6 mm
Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
