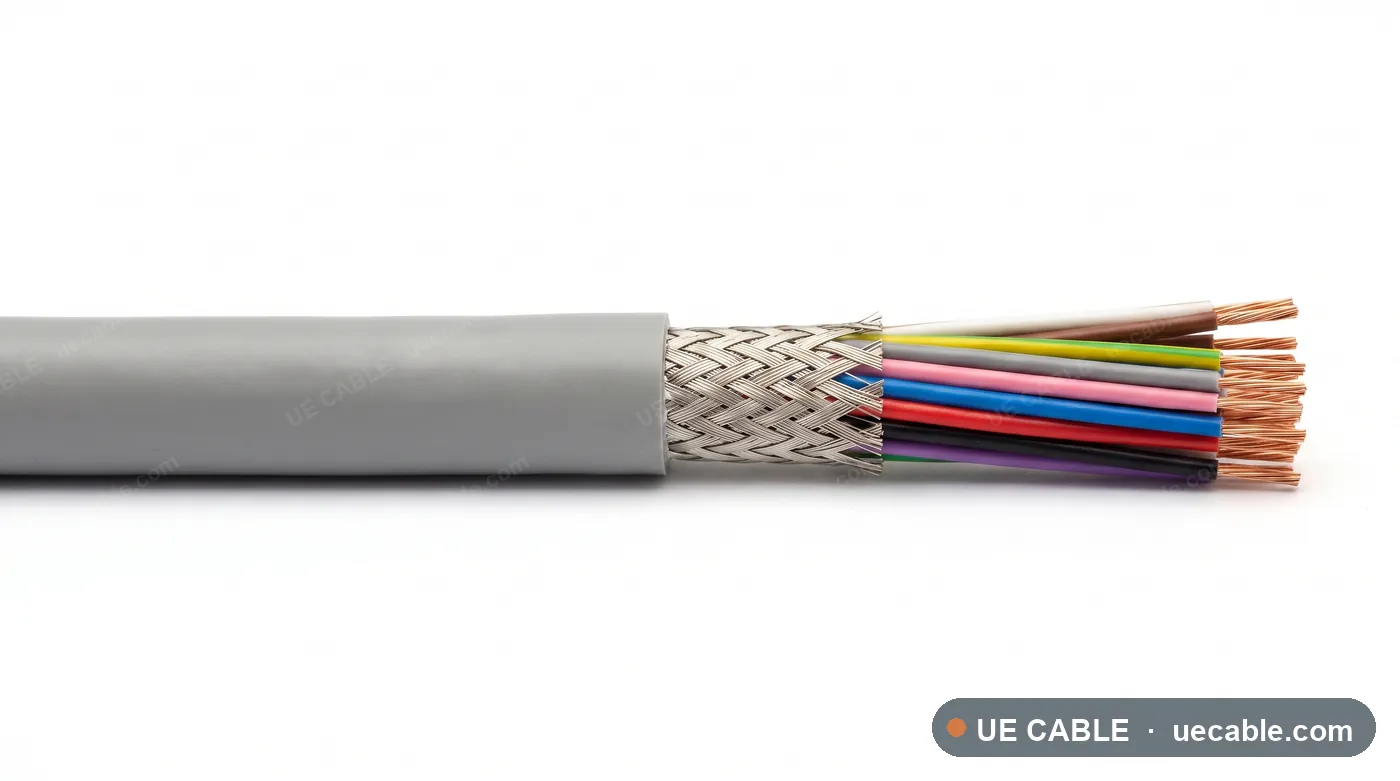

CW1308 LSZH Internal Telecom Cable cable construction reference

Indoor LSZH multipair telephone cable

CW1308 LSZH Internal Telecom Cable

CW1308 LSZH Internal Telecom Cable is a telephone cable reference for commercial telephone wiring, public buildings, pabx risers, using class 1 solid annealed copper conductor, pvc pair insulation, screen-free indoor telephone construction and white lszh outer sheath.

Standard
CW1308
Conductor
0.5 mm
Insulation / jacket
White LSZH outer sheath
Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

CW1308 LSZH Internal Telecom Cable is a telephone cable reference for commercial telephone wiring, public buildings, pabx risers, using class 1 solid annealed copper conductor, pvc pair insulation, screen-free indoor telephone construction and white lszh outer sheath.

  • Commercial telephone wiring
  • Public buildings
  • PABX risers
  • Low-smoke internal communication routes

Cable Construction

  • Class 1 solid annealed copper conductor
  • Twisted pair telephone cable construction
  • PVC pair insulation
  • Screen-free indoor telephone construction
  • White LSZH outer sheath
  • Indoor public building, commercial and high-footfall telephone routes

Specifications

Select a cable size.

Each row below is a complete specification sheet — 12 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

CW1308 LSZH internal telecom cable telephone cable references

Each row is an exact telephone cable cable specification sheet.

  • Conductor diameter0.5 mm
  • Conductor constructionClass 1 solid annealed copper conductor
  • Screen / moisture protectionScreen-free indoor telephone construction
  • InsulationPVC pair insulation
  • Outer sheathWhite LSZH outer sheath
  • Electrical reference97.8 Ω/km max, pair capacitance and insulation resistance to CW1308 reference
Cable referencePair countPair / unit constructionOD guideWeight guide
CW1308 LSZH internal telecom cable 2 pair 0.5 mm2 pair1 x 2 twisted pairs8.0 mm54 kg/km
CW1308 LSZH internal telecom cable 3 pair 0.5 mm3 pair1 x 3 twisted pairs8.5 mm60 kg/km
CW1308 LSZH internal telecom cable 4 pair 0.5 mm4 pair1 x 4 twisted pairs8.9 mm65 kg/km
CW1308 LSZH internal telecom cable 6 pair 0.5 mm6 pair1 x 6 twisted pairs9.6 mm74 kg/km
CW1308 LSZH internal telecom cable 8 pair 0.5 mm8 pair1 x 8 twisted pairs10.2 mm83 kg/km
CW1308 LSZH internal telecom cable 10 pair 0.5 mm10 pair + earth option1 x 10 pair unit + earth option10.7 mm91 kg/km
CW1308 LSZH internal telecom cable 12 pair 0.5 mm12 pair + earth option1 x 12 pair unit + earth option11.2 mm99 kg/km
CW1308 LSZH internal telecom cable 16 pair 0.5 mm16 pair + earth option1 x 16 pair unit + earth option12.0 mm114 kg/km
CW1308 LSZH internal telecom cable 20 pair 0.5 mm20 pair + earth option1 x 20 pair unit + earth option12.7 mm129 kg/km
CW1308 LSZH internal telecom cable 25 pair 0.5 mm25 pair + earth option1 x 25 pair unit + earth option13.6 mm147 kg/km
CW1308 LSZH internal telecom cable 30 pair 0.5 mm30 pair + earth option1 x 30 pair unit + earth option14.3 mm165 kg/km
CW1308 LSZH internal telecom cable 50 pair 0.5 mm50 pair + earth option5 x 10 pair units + optional earth wire16.8 mm232 kg/km
Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.

Request Quote →
